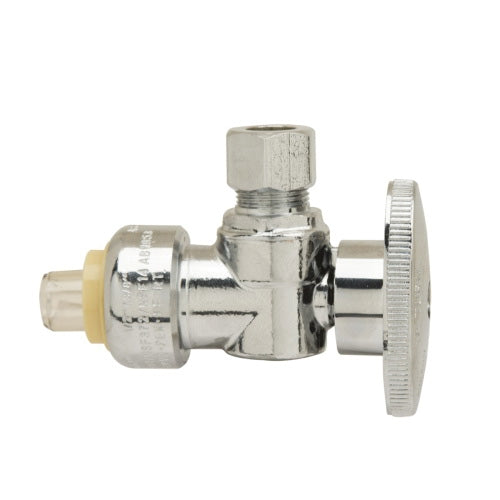

BrassCraft PLB101XP Angle Stop Valve 1/2 inch x 3/8 inch Push Connect x Compression

Product Description

The BrassCraft PLB101XP is an angle stop valve designed for potable water systems. This valve uses a push connect and compression connection type, making it easy to install in various setups. It handles a maximum operating pressure of one hundred twenty-five psi.

• Compatible with copper, PEX, and CPVC pipe.
• Features a quarter turn handle for easy operation.
• Chrome plated finish for durability and corrosion resistance.

Product Highlights

The BrassCraft PLB101XP is suitable for both residential and commercial applications. Its quarter turn handle allows for quick shut-off, which helps in emergency situations. Ideal for use in tight spaces due to its compact design.

Product Information

Standard Information

• Brand: BrassCraft
• Model Number: PLB101XP

Technical Specifications

• Nominal Size: 1/2 inch x 3/8 inch
• Connection Type: Push Connect x Compression
• Operating Pressure: 125 psi maximum
• Body Material: Brass
• Seat Material: PTFE
• Temperature Rating: 40 - 140 degrees F
• Dimensions: 0.94 inch diameter x 2.48 inch height
• Standards/Approvals: cUPC, IAPMO Listed, ASME A112.18.1, CSA B125.1, NSF/ANSI 61 and 372
