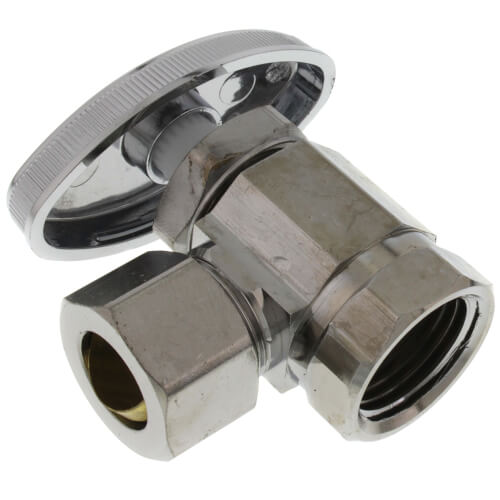

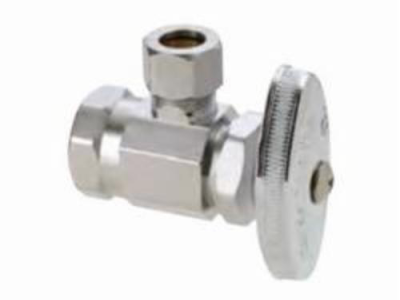

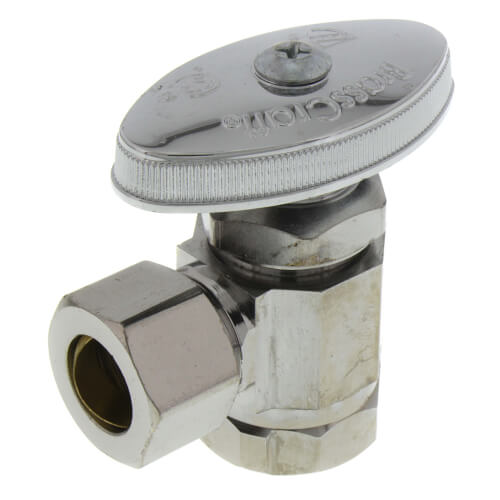

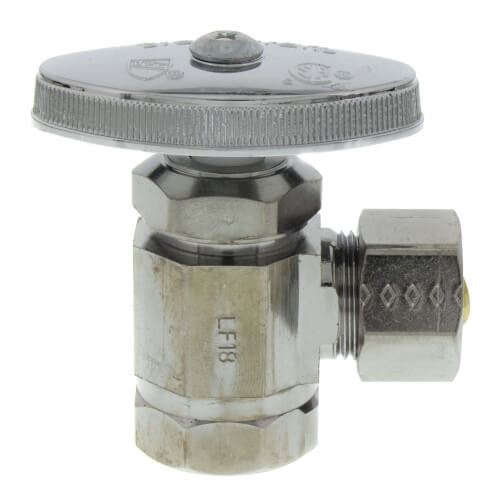

Brasscraft OR37X-C Multi-Turn Angle Stop Valve 1/2 inches FIP x 1/2 inches OD Compression

Product Description

The BRASSCRAFT OR37X-C multi-turn angle stop valve controls water flow to household plumbing fixtures, such as faucets, toilets, dishwashers, icemakers and washing machines. The angle valve is most often used where the water pipe enters the room from the wall. Machined one-piece brass body provides strength and durability.

• For use in potable water distribution systems
• Oval knurled handle provides a secure grip and smooth on/off operation
• Easy-to-remove handle with screw attachment protects accidental stop operation during rough-ins

Product Highlights

This multi-turn stop valve is available in a variety of configurations and offers special features that provide important advantages.

Product Information

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: OR37X-C
• Country of Origin: Domestic

Technical Specifications

• Finish: Chrome Plated
• Material: Brass
• Product Type: Supply Stop
• Size: 1/2" x 1/2"
• Inlet Size: 1/2"
• Outlet Size: 1/2"
• Inlet Type: FIP
• Outlet Type: OD Compression
• Type: Multi-Turn
• Body Pattern: Angle
• Body Material: Brass
• Domestic/Import: Domestic
• End Style: FNPT x Compression
• Media: Water
• Pressure Rating: 125 psi
• Series: OR37X
• Softgoods Material: Rubber Bib, Packing Washer
• Temperature Rating: 40 to 140 deg F
• Trim Material: Brass/POM
• Fits What Size Piping: 1/2"
