Brasscraft Or35x C Angle Stop 3/8 Fpt X 1/2 Od Chrome Nonpotable

Product Description

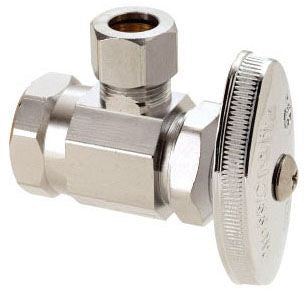

The BRASSCRAFT or35x c is a chrome-plated angle stop valve designed for nonpotable water supply applications. It features a 3/8 inch female pipe thread (FPT) inlet and a 1/2 inch outer diameter (OD) compression outlet, making it a standard quarter-turn shutoff used in plumbing rough-in and fixture supply work. The angle stop configuration positions the outlet at 90 degrees from the inlet, allowing a straight supply line to transition from a wall stub-out to a fixture supply tube. Licensed plumbers and experienced plumbing tradespeople install this type of valve in residential and light commercial settings.

This angle stop is rated for nonpotable water service only and is not approved for installation on potable drinking water supply lines. It is suited for applications such as irrigation system shutoffs, toilet tank supply lines fed from nonpotable sources, or other non-drinking water plumbing connections where a compact inline shutoff is required at the wall. The 3/8 inch FPT inlet threads directly onto a standard iron pipe size stub-out, and the 1/2 inch OD outlet accepts a standard compression supply tube.

Key Features

• Nonpotable service rating — not for use on drinking water supply lines
• 3/8 inch FPT inlet for direct connection to standard wall stub-out
• 1/2 inch OD compression outlet accepts standard supply tubes
• Angle (90-degree) configuration simplifies wall-to-fixture supply routing
• Chrome-plated finish for corrosion resistance and finished appearance

Compatibility

Designed as an OEM-style replacement or new-installation angle stop for nonpotable plumbing supply applications using 3/8 inch FPT wall stub-outs and 1/2 inch OD compression supply tubes.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the main water supply and relieve line pressure before removing any existing valve or making connections. Apply thread sealant tape to the FPT inlet threads before installation and verify that the compression fitting is seated squarely before tightening to avoid leaks. This valve is rated for nonpotable service only — do not install on any potable water supply line.

Technical Specifications

• Inlet Connection: 3/8 inch FPT
• Outlet Connection: 1/2 inch OD compression
• Valve Configuration: Angle stop (90-degree)
• Service Type: Nonpotable water only
• Finish: Chrome plated

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: or35x c
