BrassCraft OR12XC Multi-Turn Water Stop, Straight Valve, 1/2 Inch FIP x 3/8 Inch OD Compression

Product Description

The BrassCraft OR12XC is a multi-turn water stop valve designed for residential and commercial plumbing applications. It features a nominal size of one-half inch x three-eighths inch, with female threaded x compression connections. This valve allows for precise control of water flow to fixtures such as sinks, toilets, and dishwashers.

• Multi-turn operation for controlled water flow.
• Lead-free brass construction for safety and compliance.
• Temperature rating from forty to one hundred forty degrees Fahrenheit.

Product Highlights

Designed for use in potable water systems, this valve enables easy maintenance without the need to shut off water to the entire home.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: OR12XC

Technical Specifications

• Nominal Size: 1/2 Inch x 3/8 Inch
• Body Material: Chrome Plated Brass
• Handle Material: Plated Die-Cast Zinc
• End Connection: Female Threaded x Compression
• Pressure Rating: 125 PSI
• Temperature Rating: 40 to 140 Deg F

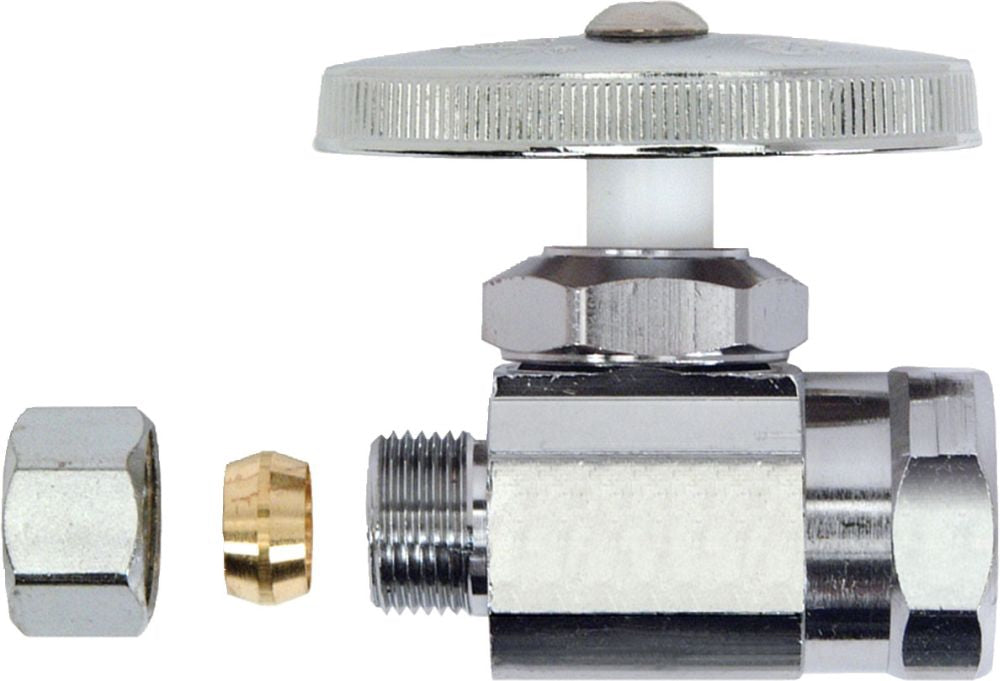

• Inclusions: Brass compression sleeve, rubber bib, and packing washer
• Applicable Standard: ASME A112.18.1/CSA B125.1, NSF 372, IAPMO
