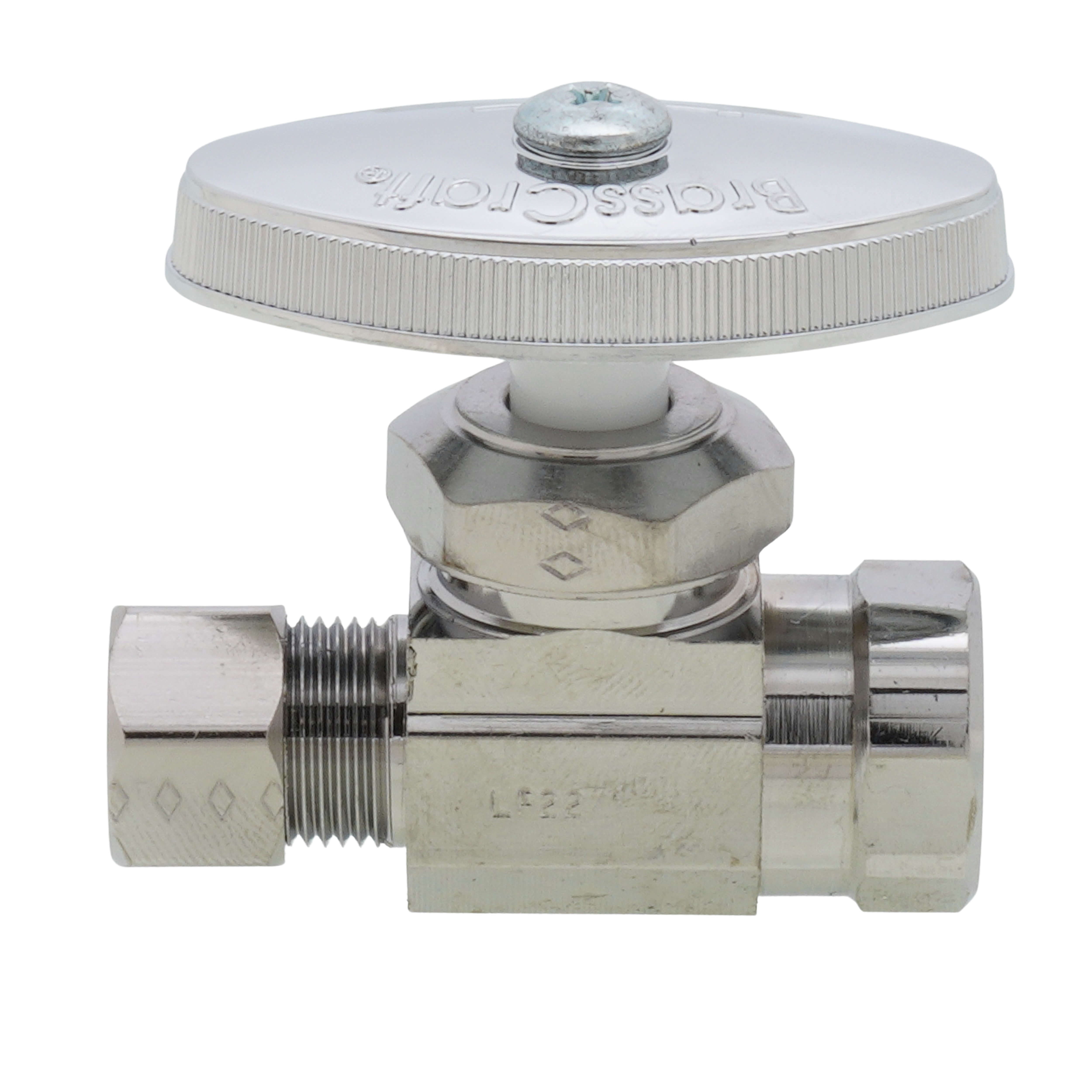

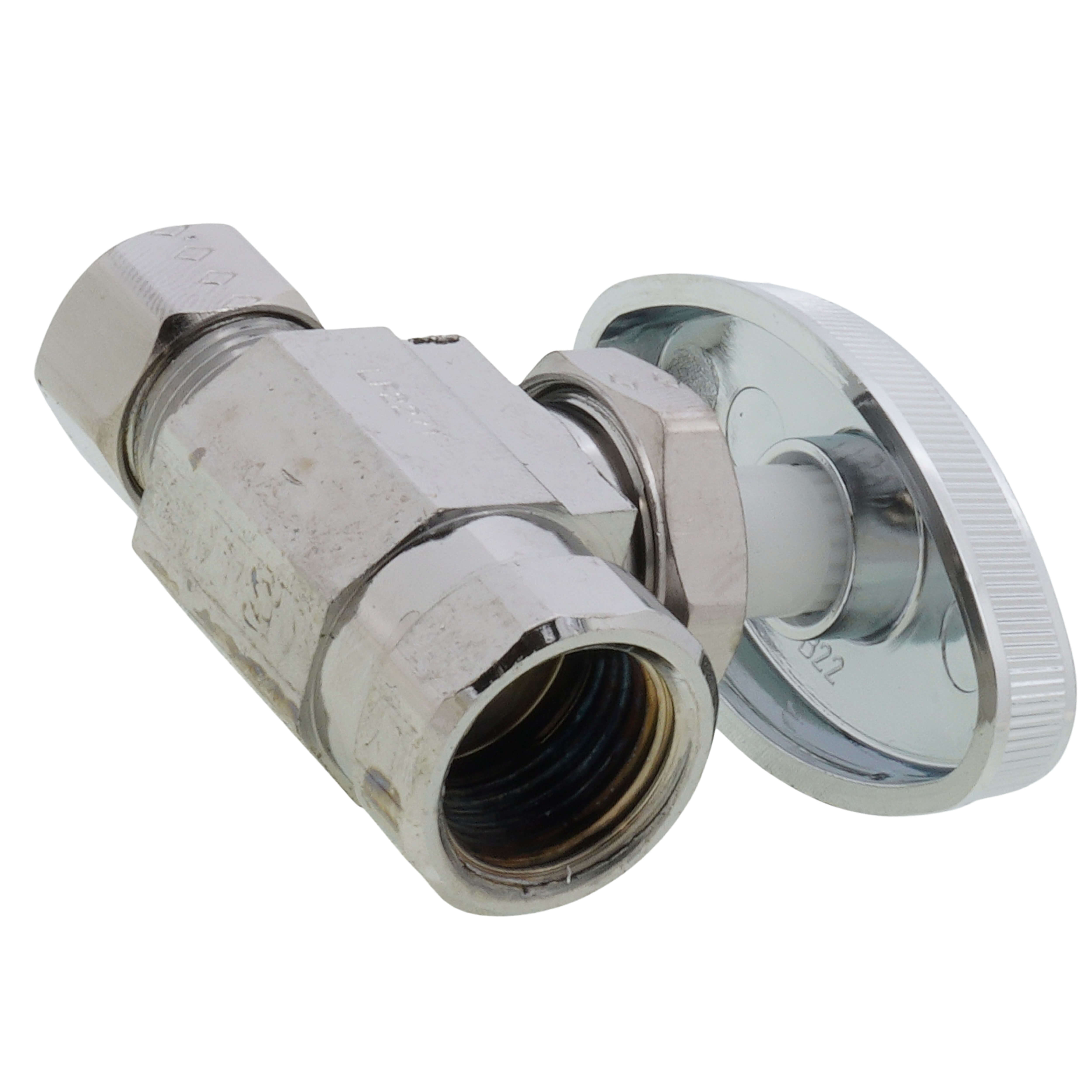

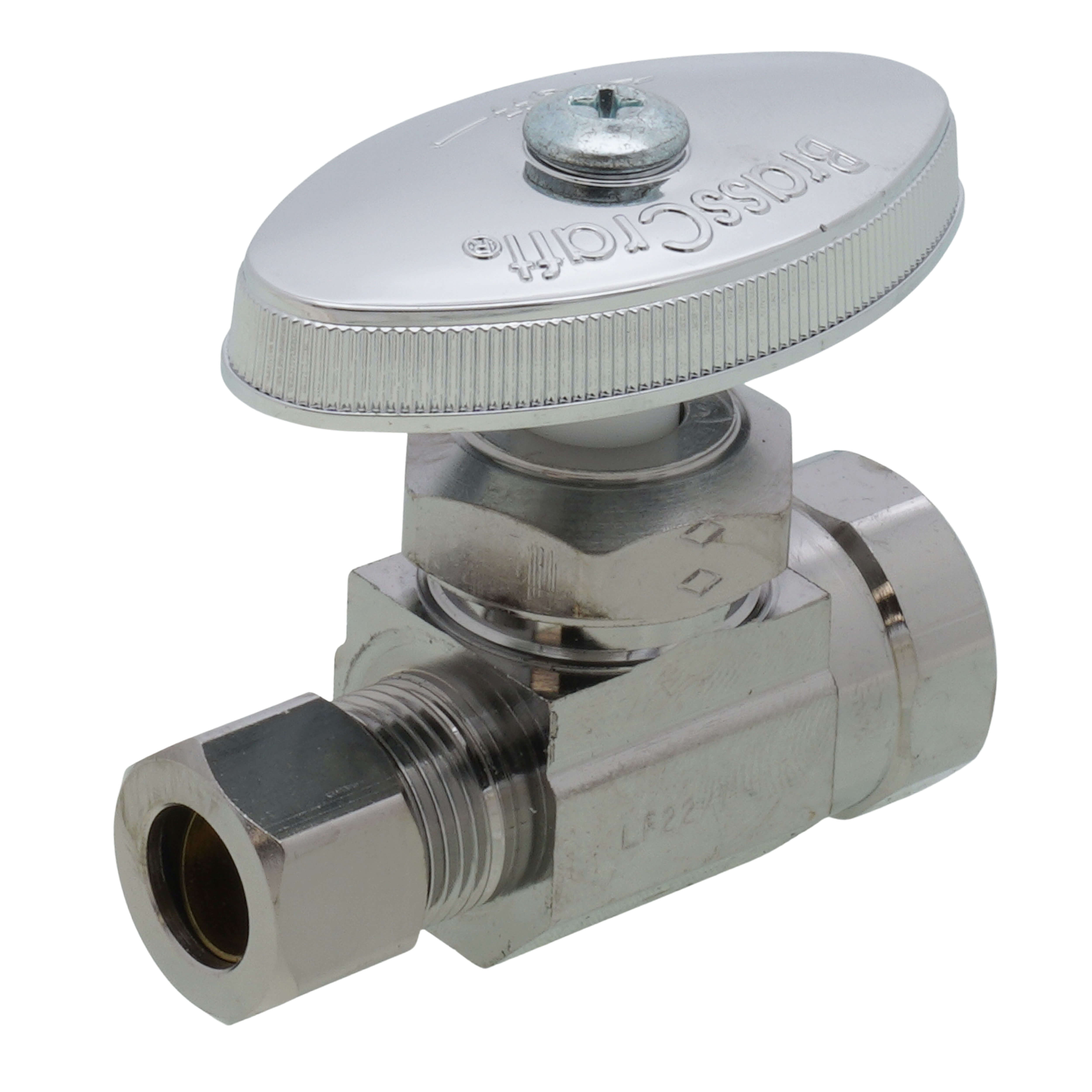

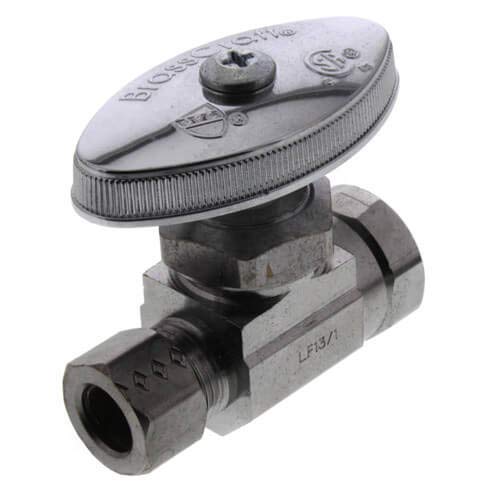

Brasscraft OR10X-C Multi-Turn Straight Valve 3/8 inch x 3/8 inch

Product Description

The BrassCraft OR10X-C multi-turn, 1-piece straight valve controls water flow to household plumbing fixtures. Featuring a nominal size of 3/8 Inch x 3/8 Inch, this valve has a female threaded x compression end connection and a chrome plated brass body. It is suitable for residential and commercial applications.

• Machined One-Piece Brass Body Provides Strength, Durability and Long-Lasting Performance
• Knurled Oval Handle Provides a Secure Grip and Smooth On/Off Operation
• Easy-to-Remove Handle with Screw Attachment Helps Protect Against Accidental Stop Operation During Rough-Ins

Product Highlights

This lead-free valve is ASME A112.18.1/CSA B125.1, NSF 372, IAPMO, CSA, CUPC, and CSA (Canada and US) compliant.

Product Information

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: OR10X-C
• Country of Origin: USA

Technical Specifications

• Type: Multi-Turn, 1-Piece, Straight
• Actuation Type: Knurled Oval Handle
• Nominal Size: 3/8 Inch x 3/8 Inch
• End Connection: Female Threaded x Compression
• End To End Distance: 2.02 Inch
• Body Material: Chrome Plated Brass
• Handle Material: Plated Die-Cast Zinc
• Temperature Rating: 40 to 140 Deg F
• Pressure Rating: 125 PSI
• Inclusions/Features: POM/Brass Stem, Bib and Packing/Washer Rubber, Chrome Plated Brass Packing Nut/Compression Nut, Zinc Plated Steel Handle Screw, Brass Compression Sleeve
• Application: Residential and Commercial
• Applicable Standard: ASME A112.18.1/CSA B125.1, NSF 372, IAPMO, CSA, CUPC, CSA (Canada and US)
• Product Sub-Type: Plumbing Valve
• Series/Model: OR10
• Inlet Size [Features]: 3/8"
• Inlet Type [Features]: FIP
• Outlet Size [Features]: 3/8"
• Outlet Type [Features]: OD Compression
• Body Pattern [Features]: Straight
• Connection Type: FIP x OD Compression
• Finish: Chrome-Plated
