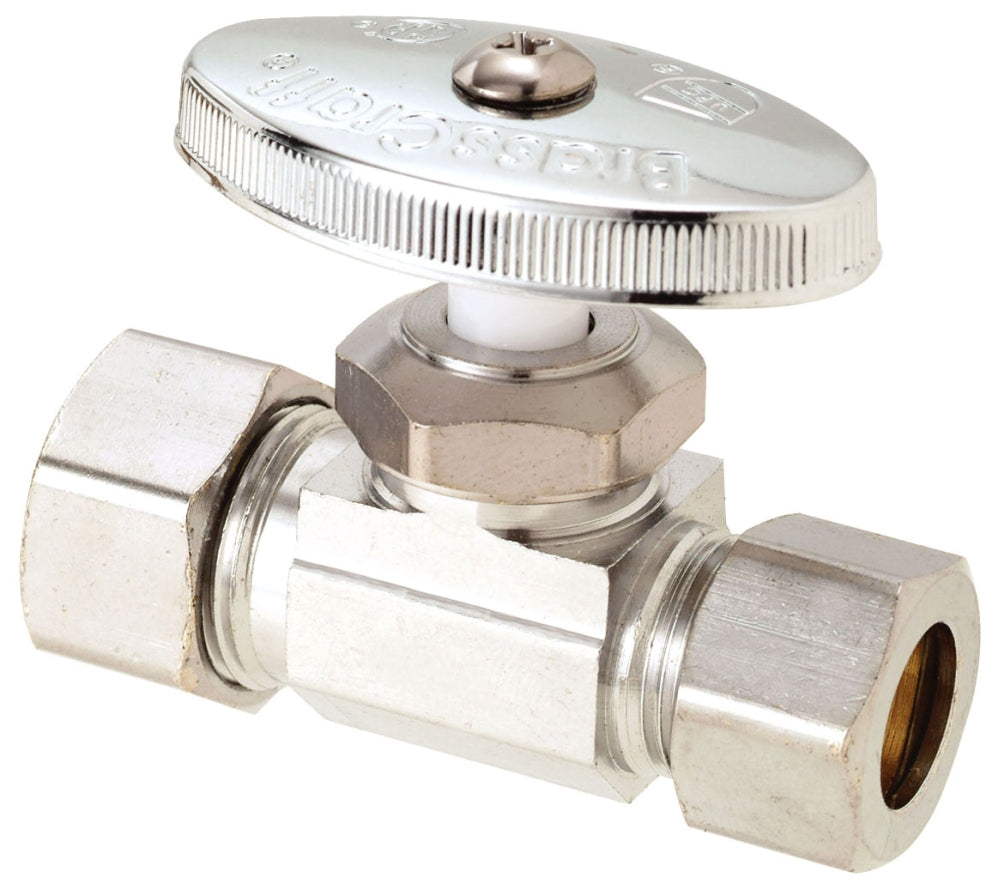

BrassCraft OCR34X C Straight Supply Stop Valve 1/2 x 1/2 Compression Lead Free

Product Description

The BrassCraft OCR34X C is a straight supply stop valve designed for water supply systems. It connects a half-inch nominal compression line to a half-inch outside diameter compression line. This product is lead-free and suited for both residential and commercial applications.

• Compatible with copper or PEX connections
• Multi-turn operation for precise water flow control
• Easy-to-remove handle prevents accidental operation during installation

Product Highlights

This valve features a strong and durable brass body that provides long-lasting performance.

Product Information

Standard Information

• Manufacturer: BrassCraft
• Application: Potable water distribution

Technical Specifications

• Type: Straight
• Actuation Type: Multi-Turn
• Nominal Size: 1/2 Inch
• End Connection: Compression x Compression
• Body Material: Chrome plated brass
• Handle Material: ABS plastic and plated die-cast zinc
• Temperature Rating: 40 to 140 Degrees F
• Pressure Rating: 125 PSI

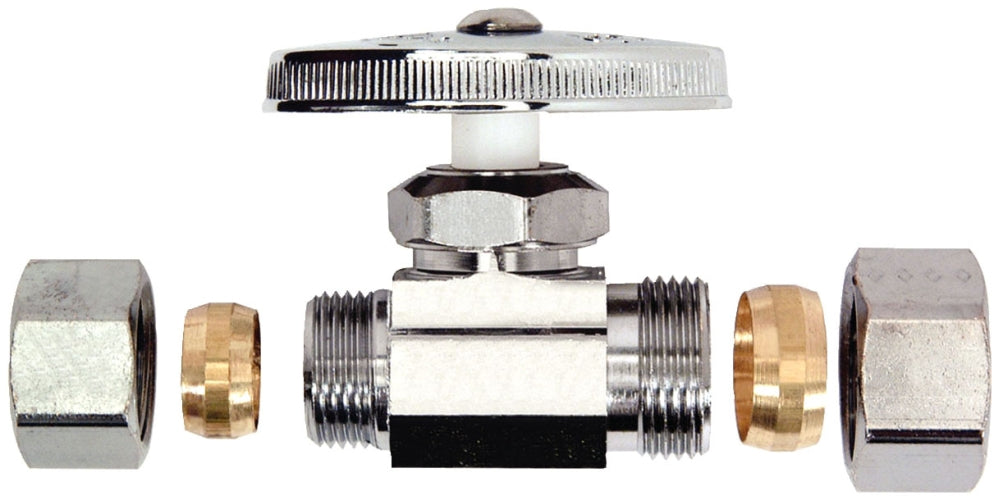

• Inclusions: Rubber bib/packing washer, compression nut/sleeve, and stainless steel PEX insert
• Applicable Standard: ASME A112.18.1/CSA B125.1, NSF 61/372
