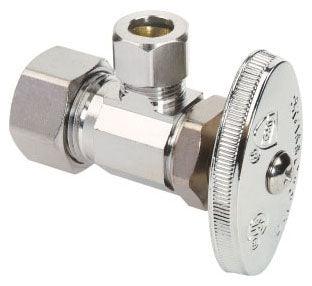

BrassCraft OCR19XR Multi-Turn Water Stop, Angle Valve, 1/2 Inch Nominal Compression x 3/8 Inch OD Compression

Product Description

The BrassCraft OCR19XR is a multi-turn angle stop valve designed for various plumbing applications. Its nominal size is one half inch by three eighths inch, with a compression x compression connection. The body is constructed from rough brass, providing durability for long-term use. This valve features a knurled oval handle that allows for secure gripping and smooth operation.

• Type: Multi-Turn
• Pressure Rating: 125 PSI
• Temperature Rating: 40 to 140 Degrees Fahrenheit

Product Highlights

This valve controls water flow to household fixtures such as sinks and toilets and is suitable for both residential and commercial applications. The angle valve is particularly useful in spaces where water pipes enter the room from the wall.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: OCR19XR

Technical Specifications

• Actuation Type: Knurled Oval Handle
• Applicable Standard: ASME A112.18.1/CSA B125.1, NSF/ANSI 372 and NSF 61, IAPMO, CUPC
• End Connection: Compression x Compression

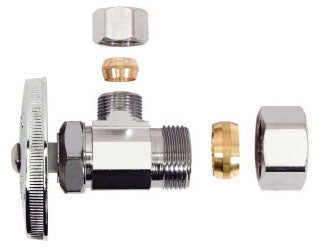

• Inclusions/Features: POM/Plated Brass Stem, Rubber Packing Washer, Plated Brass Packing Nut

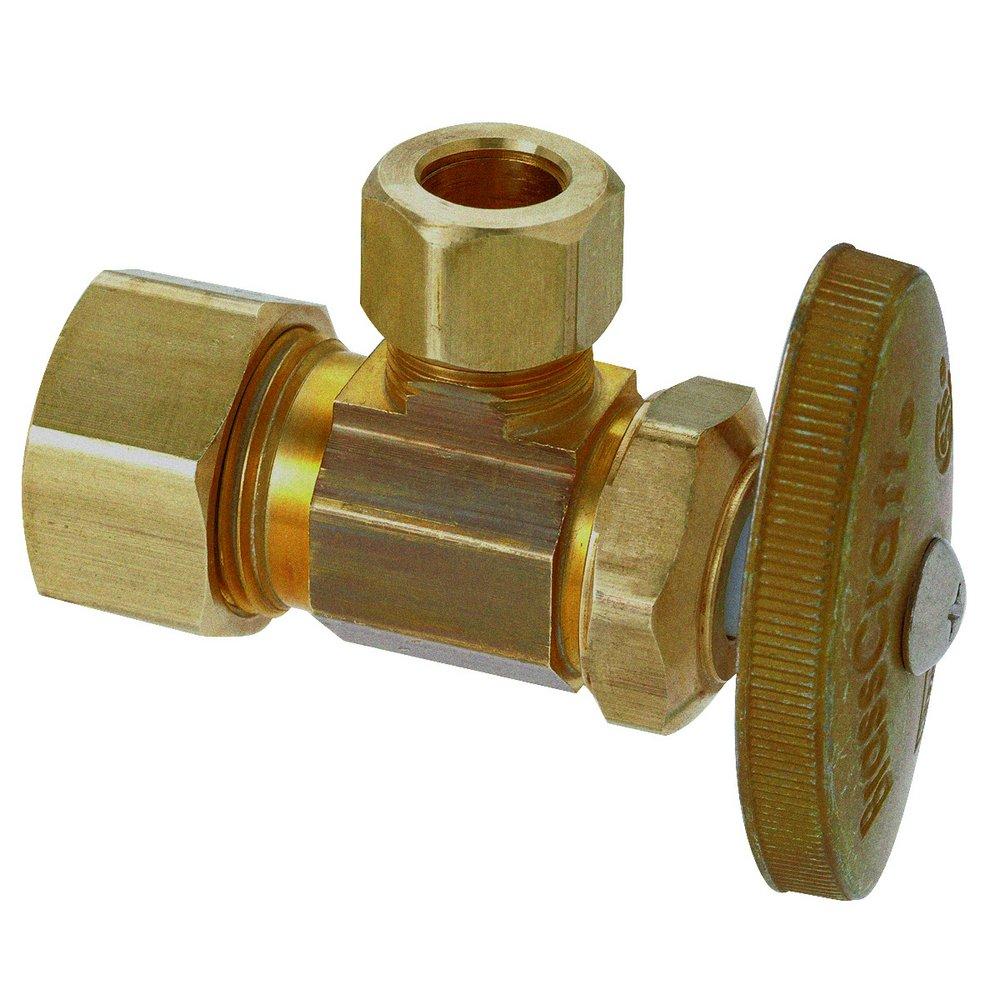

• Body Material: Rough Brass
• Handle Material: Plated Die-Cast Zinc
• End To End Distance: 1.02 Inch
