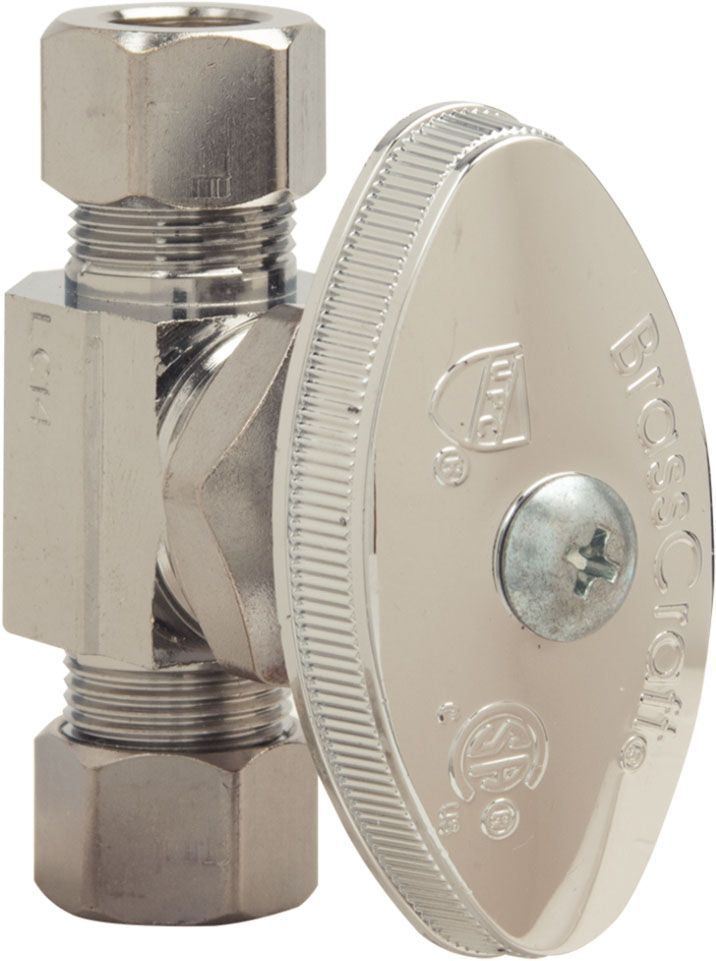

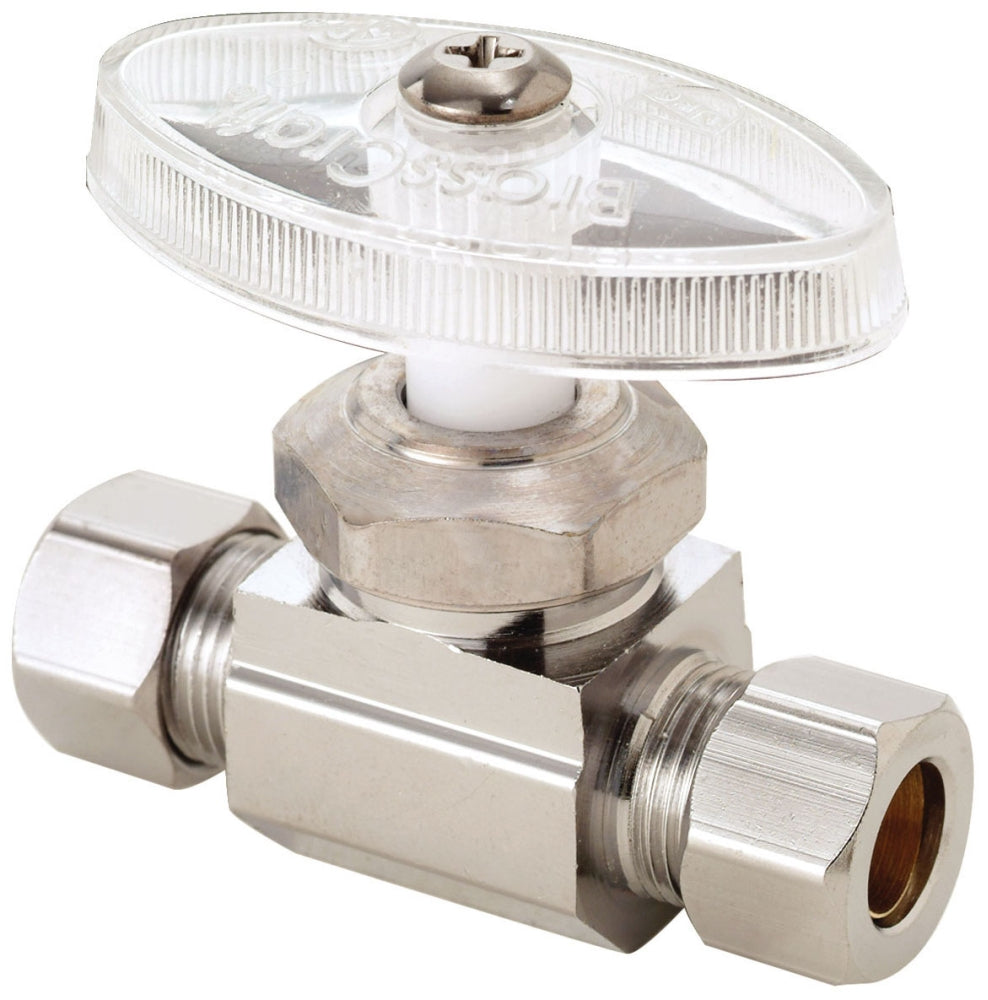

BrassCraft OCR11X-C Multi-Turn Straight Stop Valve 1/4 x 3/8 Inch

Product Description

The BrassCraft OCR11X-C is a multi-turn straight stop valve designed for controlling water flow in residential and commercial plumbing systems. This valve features a 1/4 inch nominal compression inlet and a 3/8 inch OD compression outlet, making it suitable for various applications. It is manufactured from chrome plated brass, ensuring durability and corrosion resistance.

• Lead-free construction for safe drinking water.
• Multi-turn operation allows for precise flow control.
• Chrome plated finish for enhanced aesthetics and protection.

Product Highlights

This valve is ideal for use in potable water distribution systems, efficiently stopping water flow to fixtures while allowing for maintenance without disrupting the entire water supply.

Product Information

Standard Information

• Manufacturer: BrassCraft
• MPN: OCR11X-C

Technical Specifications

• Nominal Size: 1/4 Inch x 3/8 Inch

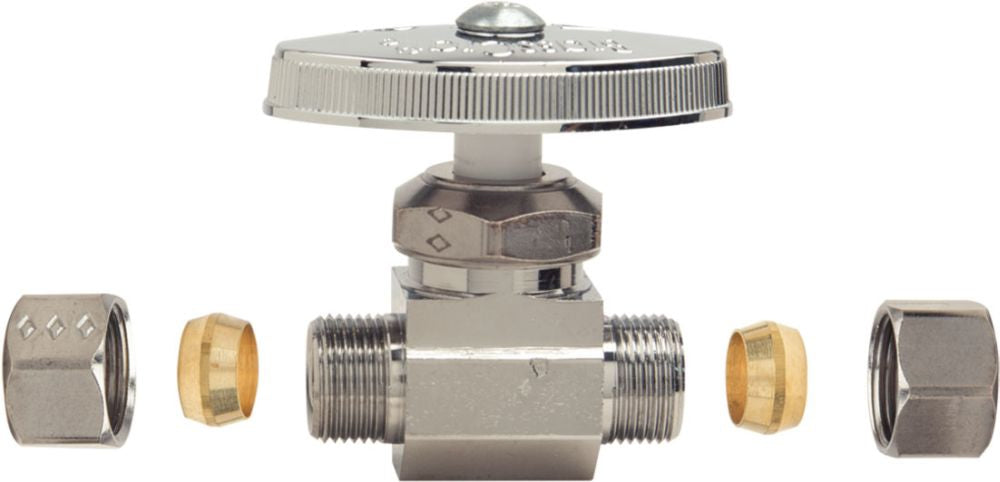

• End Connection: Compression x Compression
• Operating Temperature: 40 to 140 Deg F
• Pressure Rating: 125 PSI
• Body Material: Chrome Plated Brass
• Handle Material: Die-Cast Zinc Plated/ABS Plastic/Polycarbonate
• Actuation Type: Multi-Turn
• Standards Compliance: ASME A112.18.1 | CSA B125.1 | IAPMO Listed
