Brasscraft NV104-4-2X Needle Valve 1/4 inches x 1/8 inches Angle

Product Description

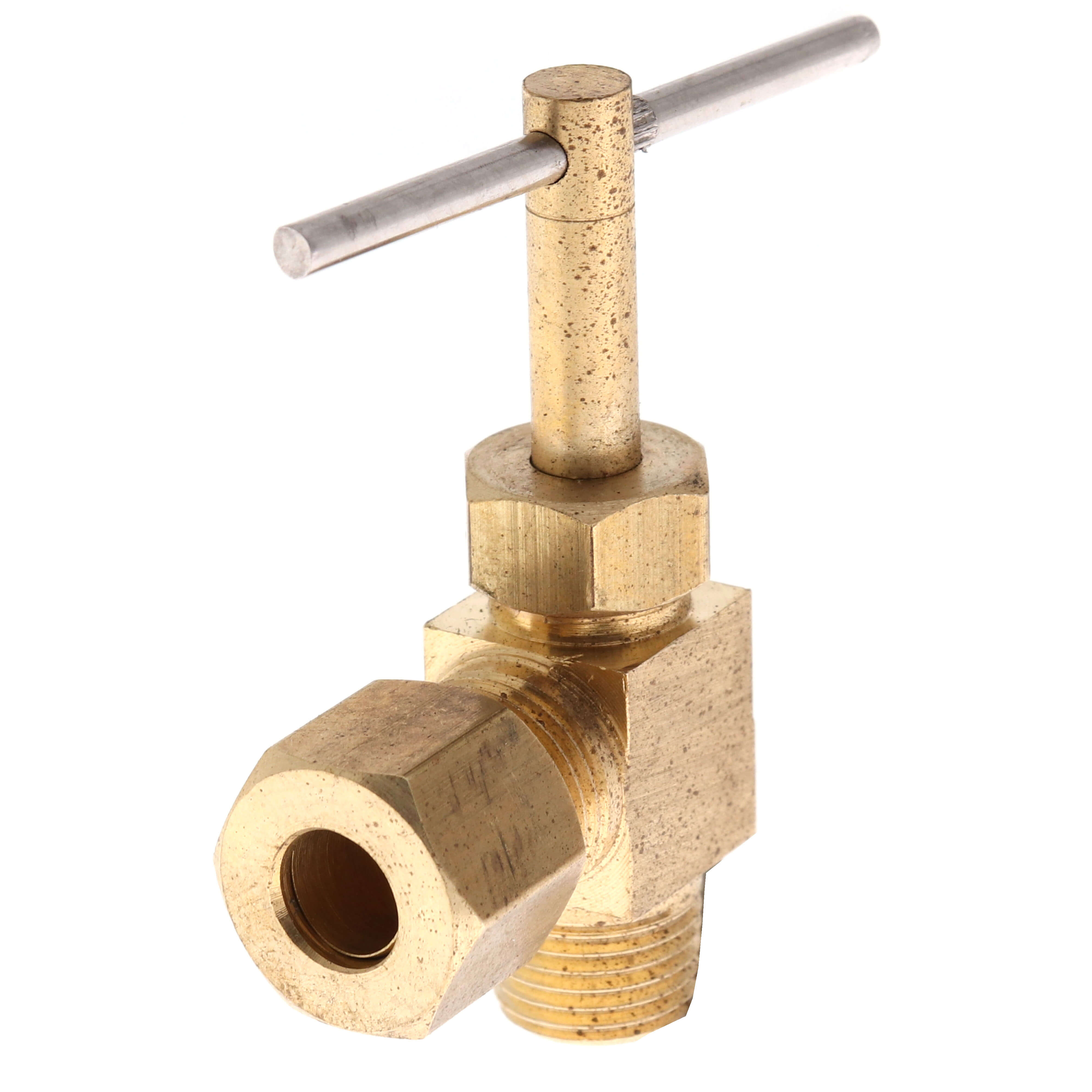

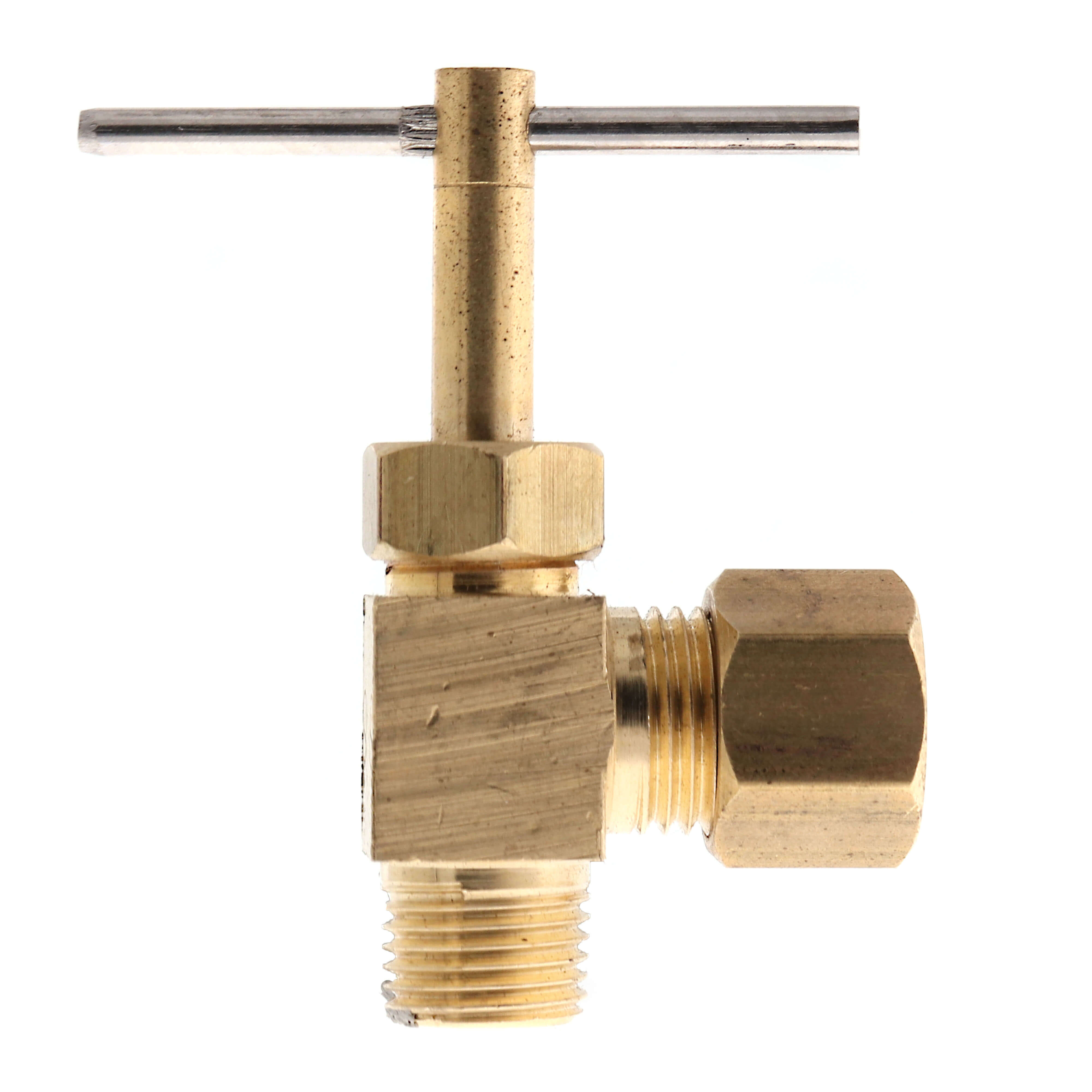

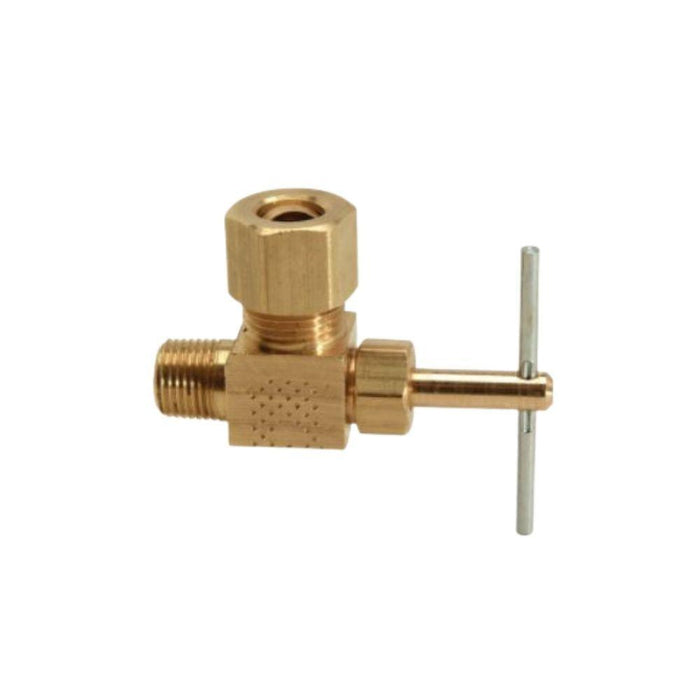

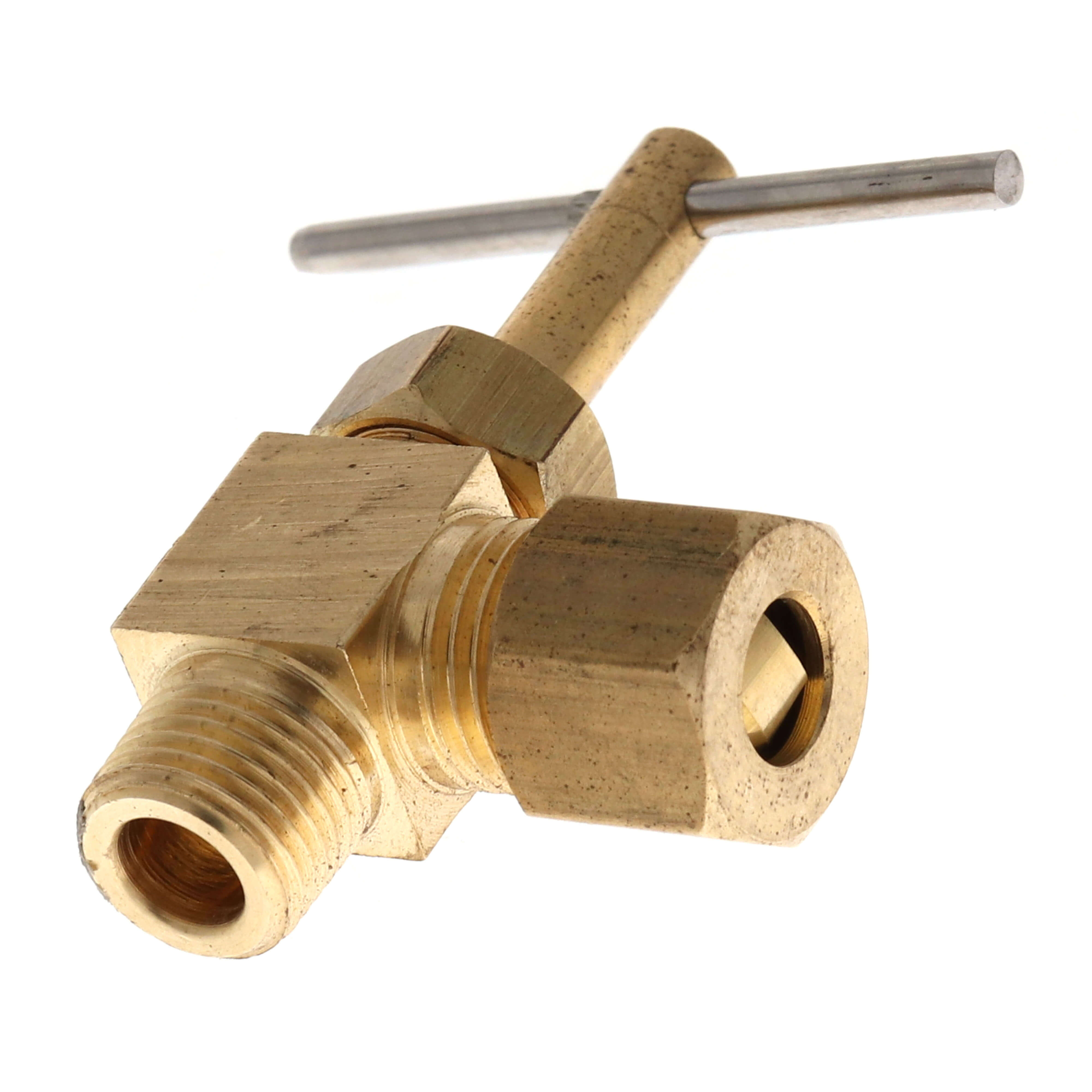

The BRASSCRAFT NV104-4-2X is an angle needle valve with a 1/4" OD compression inlet and a 1/8" MIP outlet. It is designed for use on instrumentation, hydraulic, and pneumatic systems. The valve features metal-to-metal seats with fine thread adjustment for positive sealing and flow adjustment.

• 1/4" x 1/8" Size
• Rough Brass Finish
• 1/4" Inlet Size

Product Highlights

This BRASSCRAFT needle valve offers precise flow control and reliable sealing for various applications.

Product Information

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: NV104-4-2X

Technical Specifications

• Size: 1/4" x 1/8"
• Finish: Rough Brass
• Inlet Size: 1/4"
• Inlet Type: OD Compression
• Outlet Size: 1/8"
• Outlet Type: Male Threaded
• Body Pattern: Angle
• Body Material: BRASS
• Domestic / Import: Domestic
• End Style: Compression x MNPT
• Nominal Size: 1/4 x 1/8 in
• Type: Angle
• Dimensions: 0.95 in Hex
• Manufacturer: BrassCraft Manufacturing
• Manufacturer #: NV104-4-2X
• Pressure Rating: 150 psi
• Series: NV104
• Softgoods Material: EPDM Rubber Washer
• Temperature Rating: -65 to 250 deg F
• Top to Inlet Center: 1.73
• Trim Material: BRASS
• Product Type: Brass Fitting
