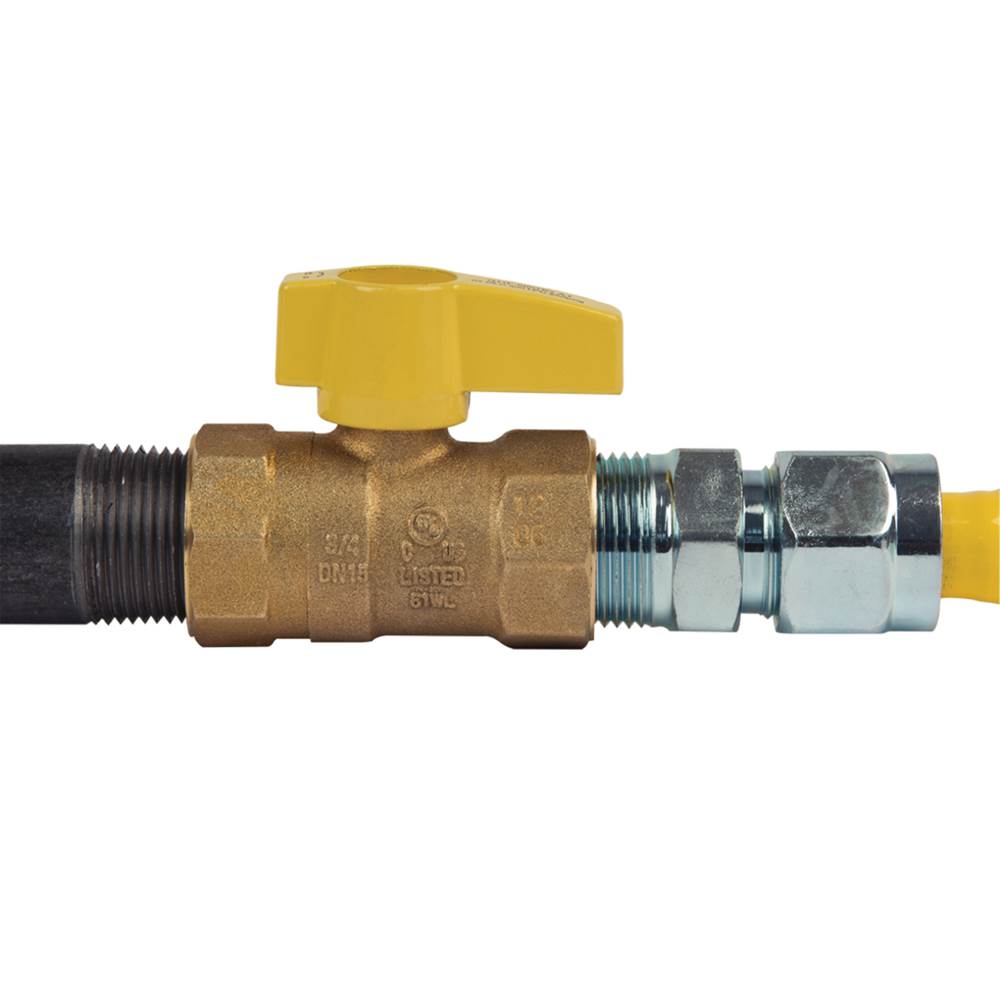

Brasscraft LBV12 Gas Ball Valve 3/4 in. FIP x 3/4 in. FIP

Product Description

BrassCraft's LBV12 brass gas ball valve is for safe use with natural, LP gas, and air mixtures. This gas ball valve has a brass construction for a durable performance. It can be installed in the gas line pipe by pipe run or at the gas pipe stubout at the appliance to regulate gas flow.

• Temperature rating: -40°F to 150°F
• Pressure rating: 125 psi maximum
• 100% Leak Tested

Product Highlights

Durable brass gas ball valve for use with natural and LP gas. Features a machined one-piece brass body and a blow-out proof, plated stem.

Product Information

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: LBV12

Technical Specifications

• Category: Gas Valves
• Finish: Chrome
• Brand: BrassCraft
• Configurations: FIP x FIP - Straight (ECONOMY)
• Body Material: Forged Brass
• Domestic / Import: Domestic
• End Style: FNPT
• Nominal Size: 3/4 in
• Type: Straight
• Manufacturer: BrassCraft Manufacturing
• Manufacturer #: LBV12
• Media: Gas
• Pressure Rating: 5 psi
• Temperature Rating: -40 to 150 deg F
