Product Description

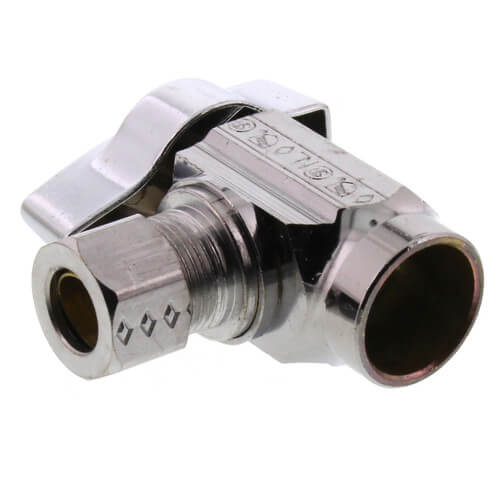

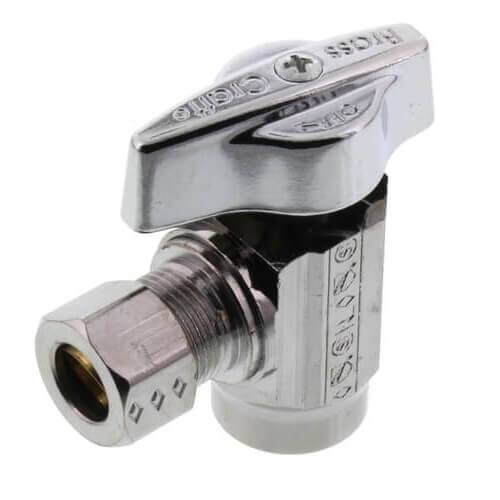

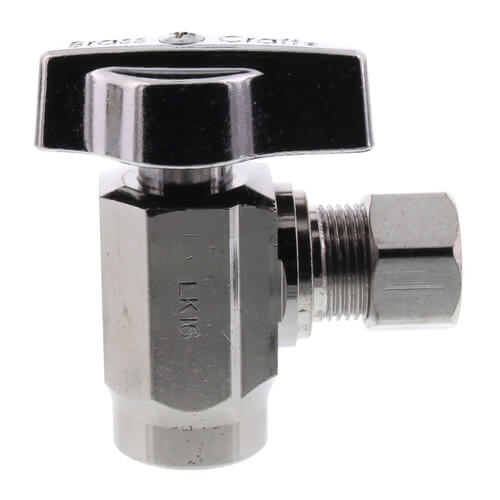

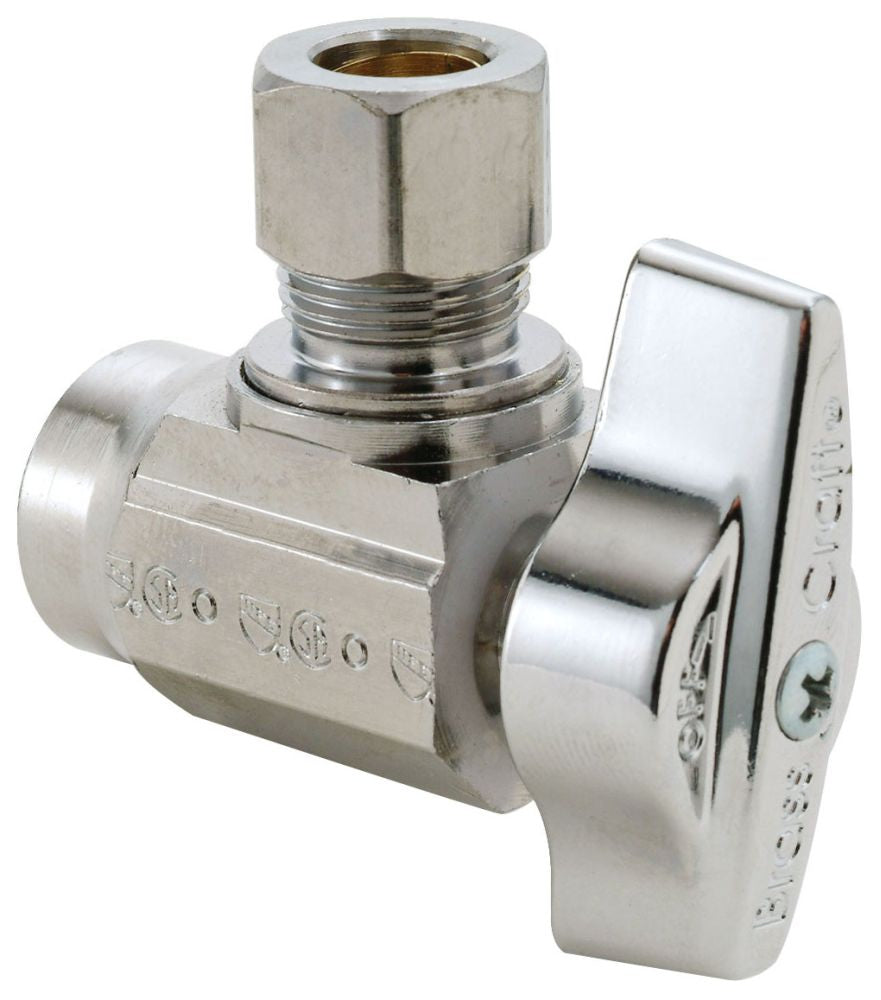

The Brasscraft KTR19XC is a 1-piece, angle ball water supply stop with a 1/4 turn actuation type. Featuring a chrome-plated brass body and PTFE seat material, it is designed for residential, commercial, and potable water distribution systems. It meets CSA, ASME, NSF, IAPMO, and CUPC standards and is lead-free.
- Machined 1-Piece Brass Body Provides Strength, Durability and Long Lasting Performance
- Precision-Machined Brass Ball to Provide Smoother Operation without Freeze-Ups Even after Long Periods of Non-Use
- Blowoutproof, Plated Stem is Assembled from the Inside with Double O-Rings to Help Ensure Safe, Reliable Performance
Product Highlights

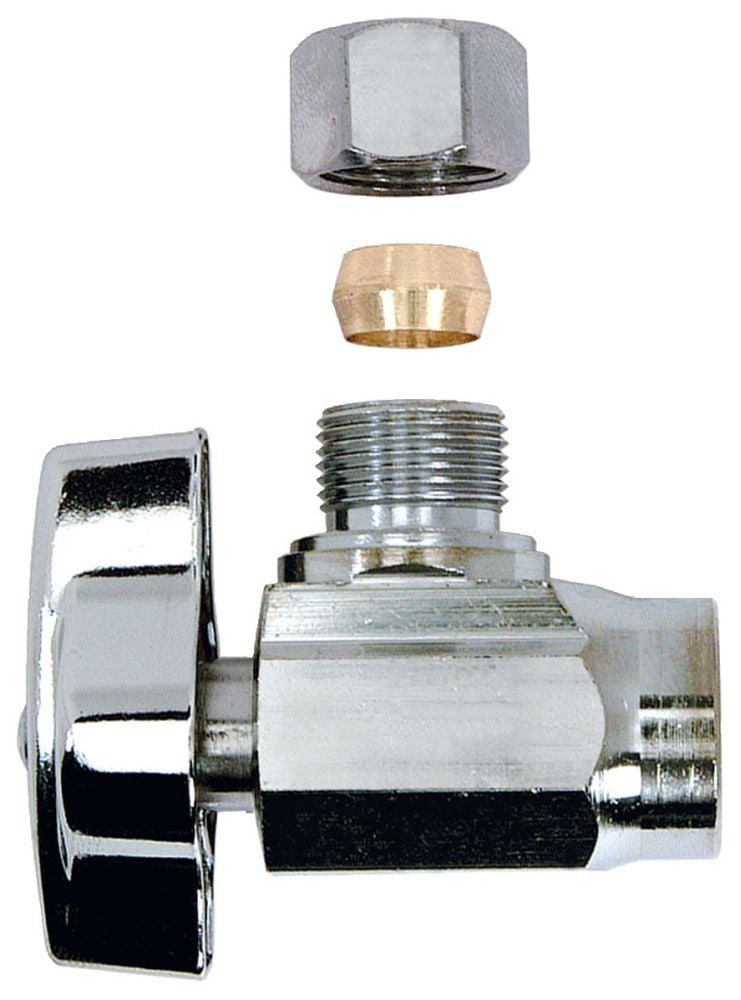

This lead-free stop valve features a plated brass stem/ball, chrome-plated brass compression nut, and a die-cast plated zinc handle.
Product Information
Standard Information
-
Brand: Brasscraft
-
Manufacturer Part Number: KTR19XC
-
Country of Origin: USA
Technical Specifications
-
Actuation Type: 1/4 Turn
-
Additional Information: Lead-Free
-
Applicable Standard: CSA (Canada and US), ASME A112.18.1/CSA B125.1, NSF/ANSI 61/372, IAPMO, CUPC
-
Application: Residential, Commercial, Potable Water Distribution System
-
Body Material: Chrome Plated Brass
-
Category: Plumbing & Bath / Kitchen Fixtures
-
End Connection: Soldered x Compression
-
End To End Distance: 2.02 Inch
-
Handle Material: Die-Cast Plated Zinc
-
Inclusions Features: Plated Brass Stem/Ball, Chrome Plated Brass Compression Nut, Brass Compression Sleeve, Rubber Stem O-Ring, Zinc Plated Steel Handle Screw
-
Nominal Size: 1/2 Inch x 3/8 Inch
-
Pressure Rating: 125 PSI
-
Seat Material: PTFE
-
Series/Model: KTR19X
-
Temperature Rating: 40 to 140 Deg F
-
Type: 1-Piece, Angle Ball
-
Finish: Chrome Plated
-
Material: Brass
-
Size: 1/2" x 3/8"
-
Product Type: Supply Stop
-
Inlet Size: 1/2"
-
Outlet Size: 3/8"
-
Inlet Type: Nominal Sweat
-
Body Pattern: Angle
-
Outlet Type: OD Compression
-
Closing: 1/4 Turn
-
Valve Type: Angle
-
Temperature: 40 to 180 deg F
-
Maximum Pressure: 125 PSI
-
For Use With: Copper
-
Fits What Size Piping: 1/2"
-
Width: 2.2500 in
-
Depth: 1.7585 in
-
Length: 2.7500 in
-
Finish Family: Chrome
-
Brand: BrassCraft Manufacturing
-
Domestic/Import: Domestic
-
End Style: C x Compression
-
Media: Water
-
Softgoods Material: Rubber O-Ring/PTFE Seat
-
Trim Material: Brass
