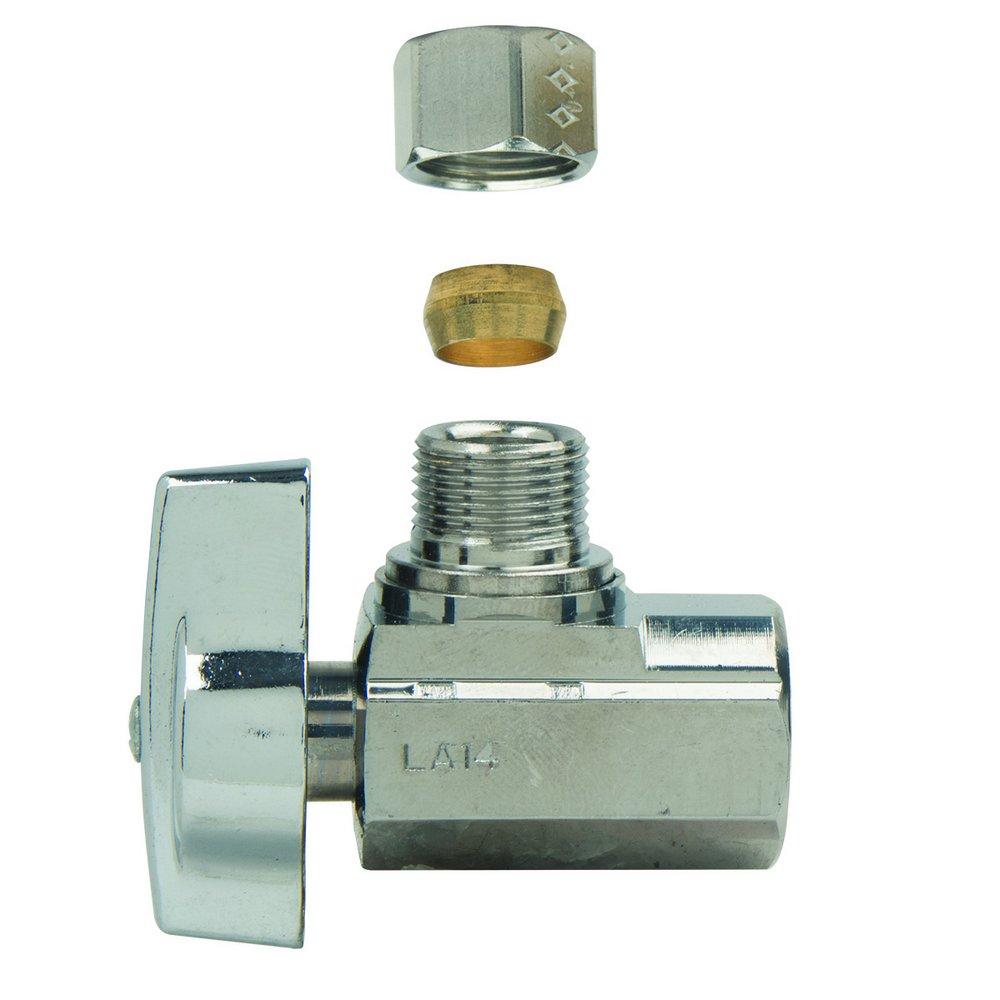

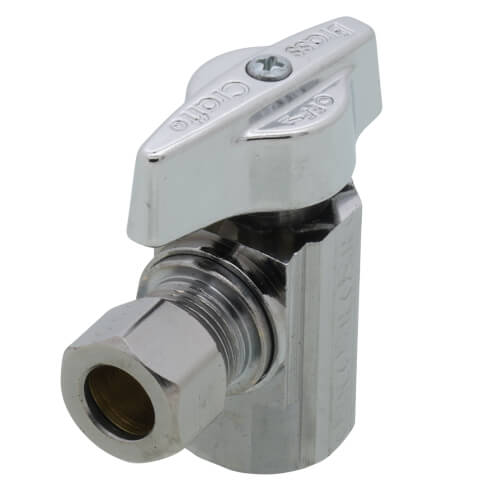

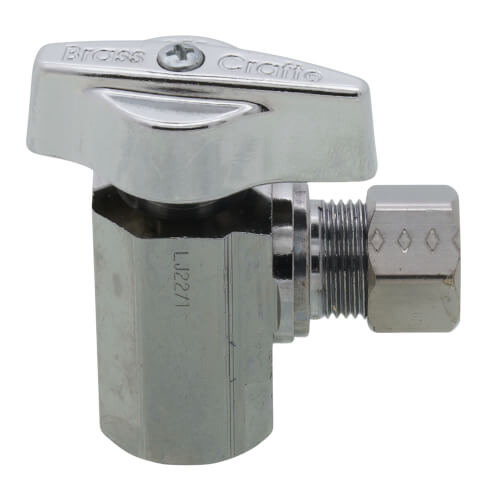

BrassCraft KTR15X-C 1/4-Turn Angle Ball Stop Valve 3/8 FIP x OD Compression

Product Description

The BrassCraft KTR15X-C is a 1/4-turn angle ball stop valve designed for water supply applications. This valve features a 3/8 inch FIPT inlet and a 3/8 inch OD compression outlet. It is suitable for use in both residential and commercial plumbing systems.

• Lead-free construction for safe water use
• Machined, one-piece brass body for strength
• Positive 1/4-turn shut-off mechanism

Product Highlights

This valve is ideal for potable water distribution and recirculating water systems. It operates effectively under continuous use temperatures above one hundred fifteen degrees Fahrenheit. The chrome-plated finish provides corrosion resistance.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: KTR15X-C

Technical Specifications

• Connection Size: 3/8 inch
• Connection Type: FIP x OD Compression
• Dimension: 2.06 inches in length
• Pressure Rating: 125 psi
• Temperature Rating: 40 - 180 degrees Fahrenheit
• Ball Material: Precision-machined brass
• Seat Material: PTFE
• Stem Material: Plated brass
