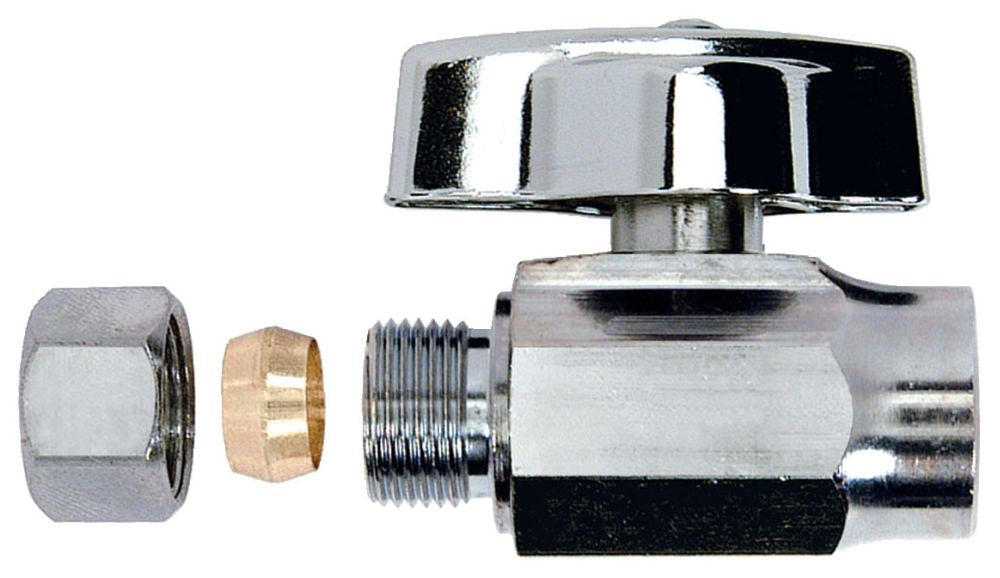

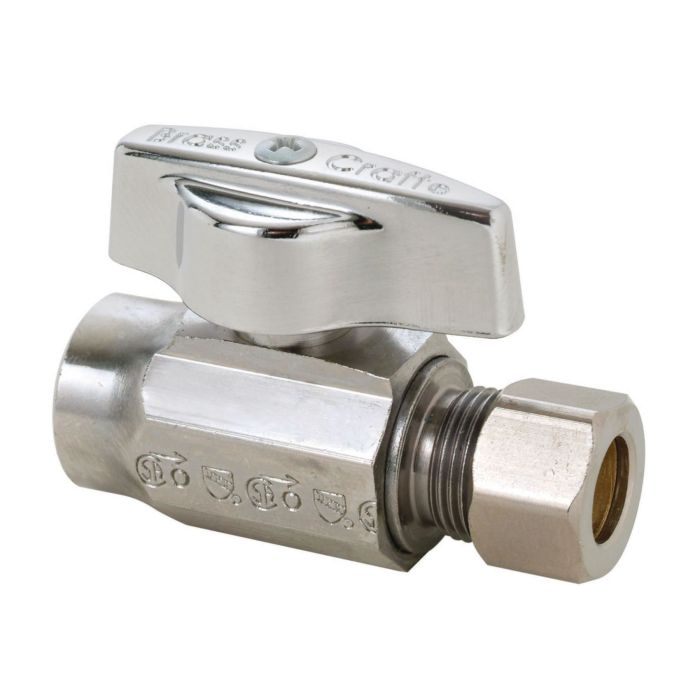

Brasscraft KTR14XC 1/4-Turn Water Stop 1/2 inch x 3/8 inch

Product Description

The Brasscraft KTR14XC 1/4-Turn Water Stop is a straight valve with a 1/2 inch Nominal Sweat x 3/8 inch OD Compression. It is most often used where the water pipe enters the room from the floor. With a quarter turn of the valve handle, able to stop the flow of water.

• Machined 1-Piece Brass Body Provides Strength, Durability and Long-Lasting Performance
• Blowoutproof Brass Stem is Assembled from the Inside Out with Two O-Rings to Ensure Safe, Reliable Performance
• Plated Stem Provides Corrosion Resistance and Prevents O-Ring Damage after Long Periods of Non-Use

Product Highlights

This water stop is ideal for residential, commercial, and potable water distribution systems. It features a chrome-plated brass body and a PTFE seat material.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: KTR14XC
• Country of Origin: USA

Technical Specifications

• Actuation Type: 1/4 Turn
• Additional Information: Lead-Free
• Applicable Standard: CSA (Canada and US), ASME A112.18.1/CSA B125.1, NSF/ANSI 61/372, IAPMO, CUPC
• Application: Residential, Commercial, Potable Water Distribution System
• Body Material: Chrome Plated Brass
• Category: Plumbing & Bath / Kitchen Fixtures
• End Connection: Soldered x Compression
• End To End Distance: 2.08 Inch
• Handle Material: Die-Cast Plated Zinc
• Inclusions Features: Plated Brass Stem, Chrome Plated Brass Ball/Body/Compression Nut, Nitrile/EPDM O-Ring, Chrome Plated Zinc Die Cast Handle, Zinc Plated Steel Handle Screw
• Nominal Size: 1/2 Inch x 3/8 Inch
• Pressure Rating: 125 PSI
• Seat Material: PTFE
• Series/Model: KTR14
• Temperature Rating: 40 to 180 Deg F
• Type: 1-Piece, Straight Ball
• Material: Lead-Free Brass
• Finish: Chrome-Plated
• Media: Water
• Trim Material: Brass
• Softgoods Material: Rubber O-Ring
