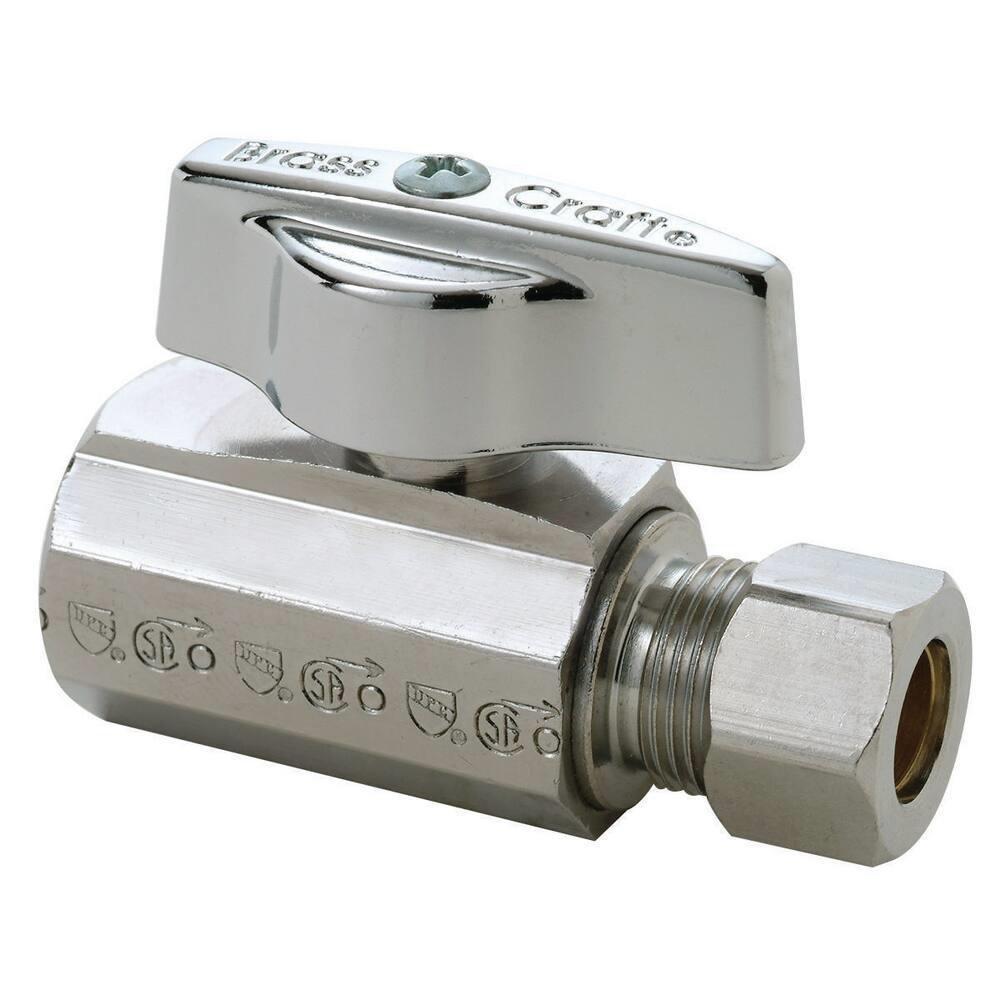

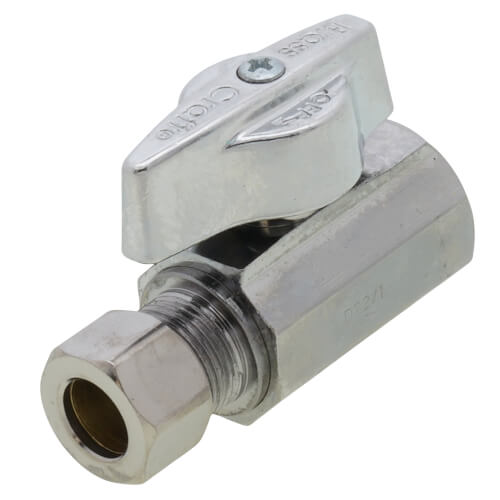

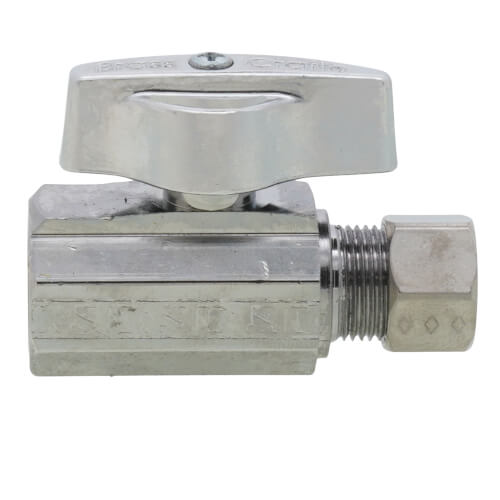

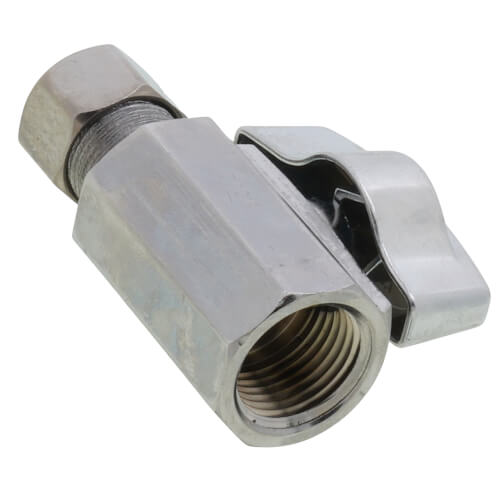

BrassCraft KTR10X C Supply Stop Valve Chrome-Plated 3/8 in FIP x OD Compression

Product Description

The BrassCraft KTR10X C is a 3/8 inch FIPT x OD compression ball handle straight supply stop valve. This valve is ideal for use in potable water distribution systems. The robust brass construction enhances durability and is designed for long-lasting performance.

• 1/4 turn shut-off for quick operation.
• 100% leak tested for reliability.
• Chrome plated for corrosion resistance.

Product Highlights

Designed for easy installation and safe operation, this valve features an easy-to-remove handle that prevents accidental activation during installation. Its precision machined parts ensure smooth operation without freeze-ups.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: KTR10X C

Technical Specifications

• Connection Size: 3/8 inch
• Connection Type: FIP x Compression
• Dimension: 2.13 inches L x 0.91 inches W x 1.59 inches H
• Material: Brass
• Number of Handles: 1
• Pressure Rating: 125 psi
• Temperature Rating: 40 - 180 degrees F
• Standards/Certifications: ASME A112.18.1, CSA B125.1, UPC, IAPMO listed, NSF 372 certified
• Applications: Potable water systems and recirculating water systems
