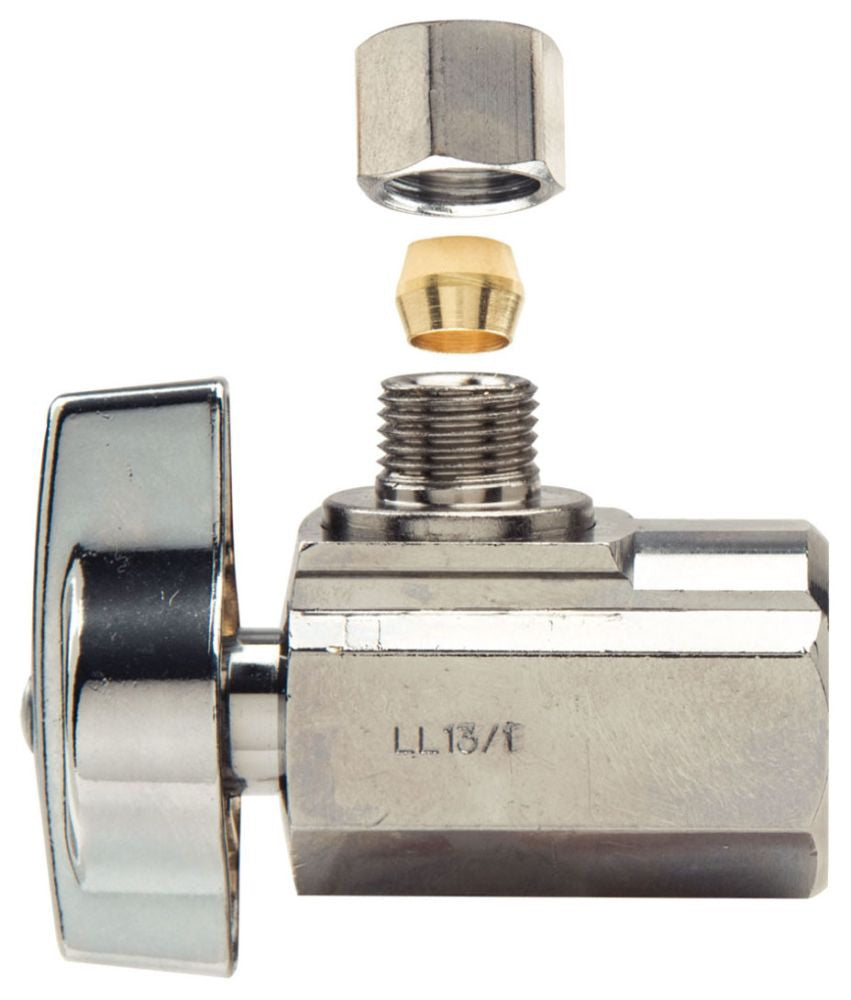

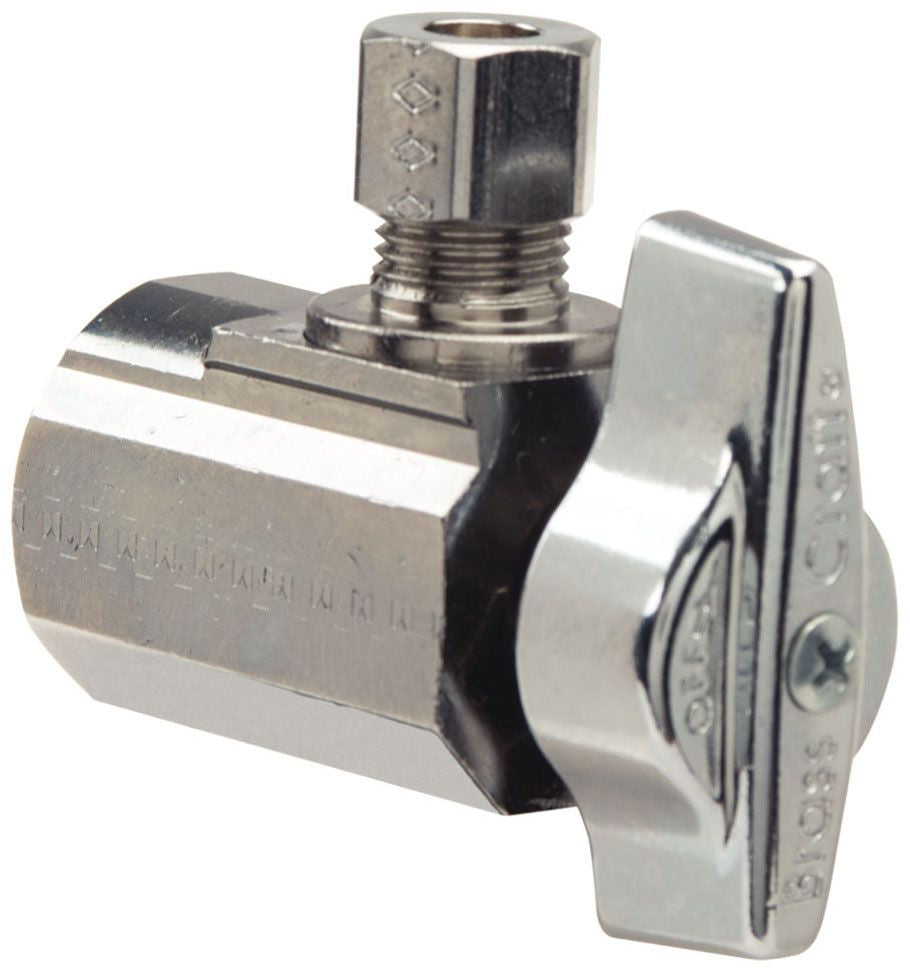

BrassCraft KTR07X-C Angle Stop Valve Chrome Plated Lead-Free

Product Description

The BrassCraft KTR07X-C is a high-quality angle stop valve, designed for easy installation in residential and commercial water distribution systems. This valve features a 1/2 inch FIP inlet and a 1/4 inch OD compression outlet, suitable for potable water applications and recirculating systems with temperatures above 115 degrees Fahrenheit.

• Lead-free, chrome-plated brass body enhances durability and resistance to corrosion.
• PTFE seats and two O-rings ensure smooth operation and a reliable seal, preventing leaks.
• Quarter turn handle offers quick and easy water flow control.

Product Highlights

This angle stop valve is designed for longevity and reliability, featuring a blow-out proof, plated stem and a machined brass ball that operates smoothly even after extended periods of non-use.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: KTR07X-C
Technical Specifications
Material
Chrome Plated Brass
Inlet Type
Female Iron Pipe (FIP)
Outlet Size
1/4 Inch
Outlet Type
Outer Diameter Compression
Temperature Range
40 to 180 degrees Fahrenheit
Pressure Rating
125 PSI
Standards
ASME A112.18.1/CSA B125.1, IAPMO/CUPC
