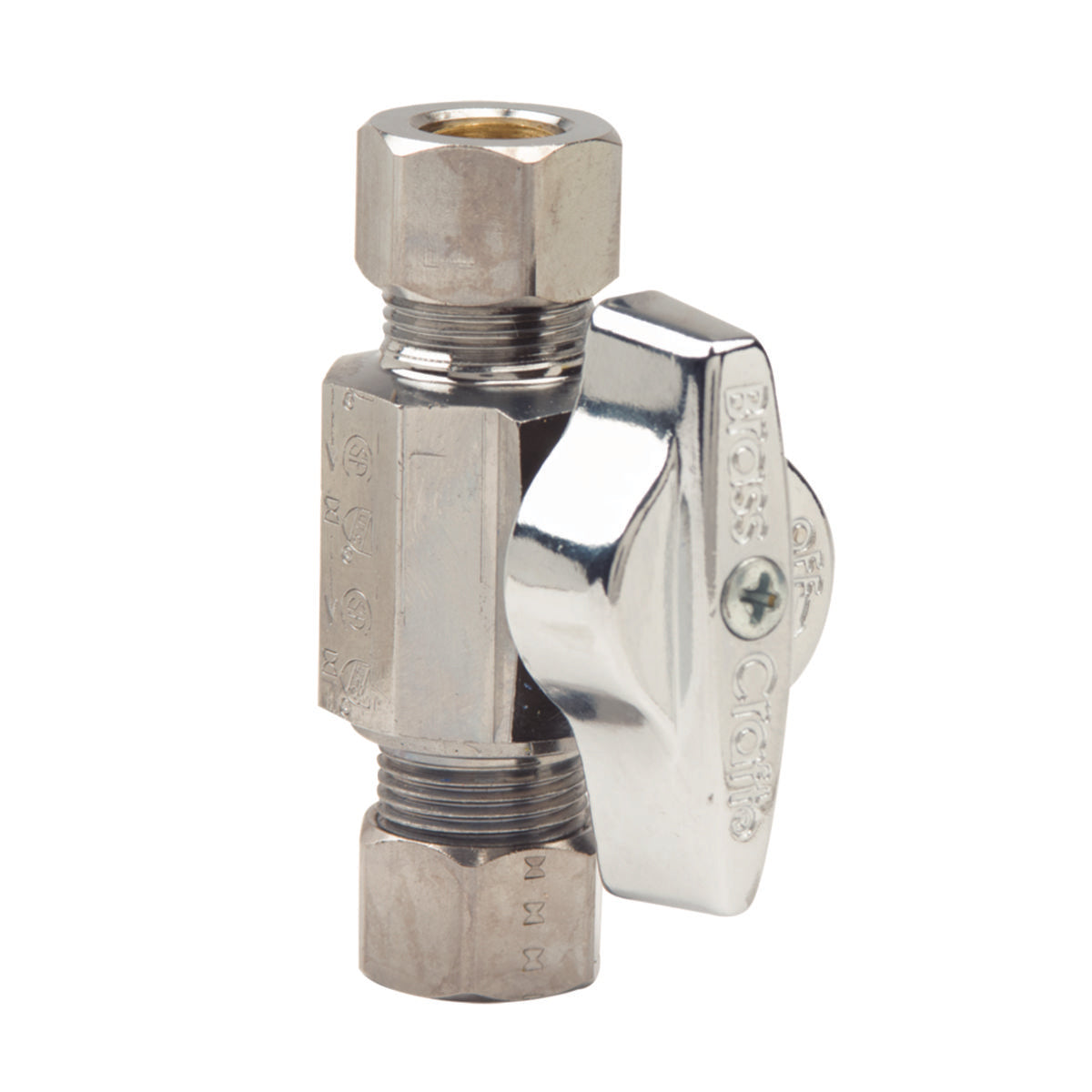

Brasscraft KTCR11XC 1/4-Turn Water Stop, Straight Valve, 1/4 inch Nominal Compression x 3/8 inch OD Compression

Product Description

The Brasscraft KTCR11XC is a 1/4-turn straight ball stop valve designed for use with water in accessible locations. This model features a nominal compression inlet and an outer diameter compression outlet. It is made from lead-free chrome-plated brass, ensuring durability and safety in potable water applications.

• One-piece brass body for improved durability
• Precision-machined brass ball for smooth operation
• 100% leak tested to ensure quality performance

Product Highlights

The valve is ideal for plumbing installations that require a reliable shut-off mechanism. It features an easy-to-remove handle that prevents accidental operation and includes high-performance O-rings to resist high temperatures and corrosion.

Product Information

Standard Information

• Brand: Brasscraft
• MPN: KTCR11XC

Technical Specifications

• Inlet Size: 1/4 inch nominal compression
• Outlet Size: 3/8 inch OD compression
• Type: 1/4-turn
• Material: Chrome plated brass
• Temperature Rating: 40 to 140 degrees Fahrenheit
• Pressure Rating: 125 psi maximum
• Weight: 0.2 pounds
• Body Pattern: Straight
