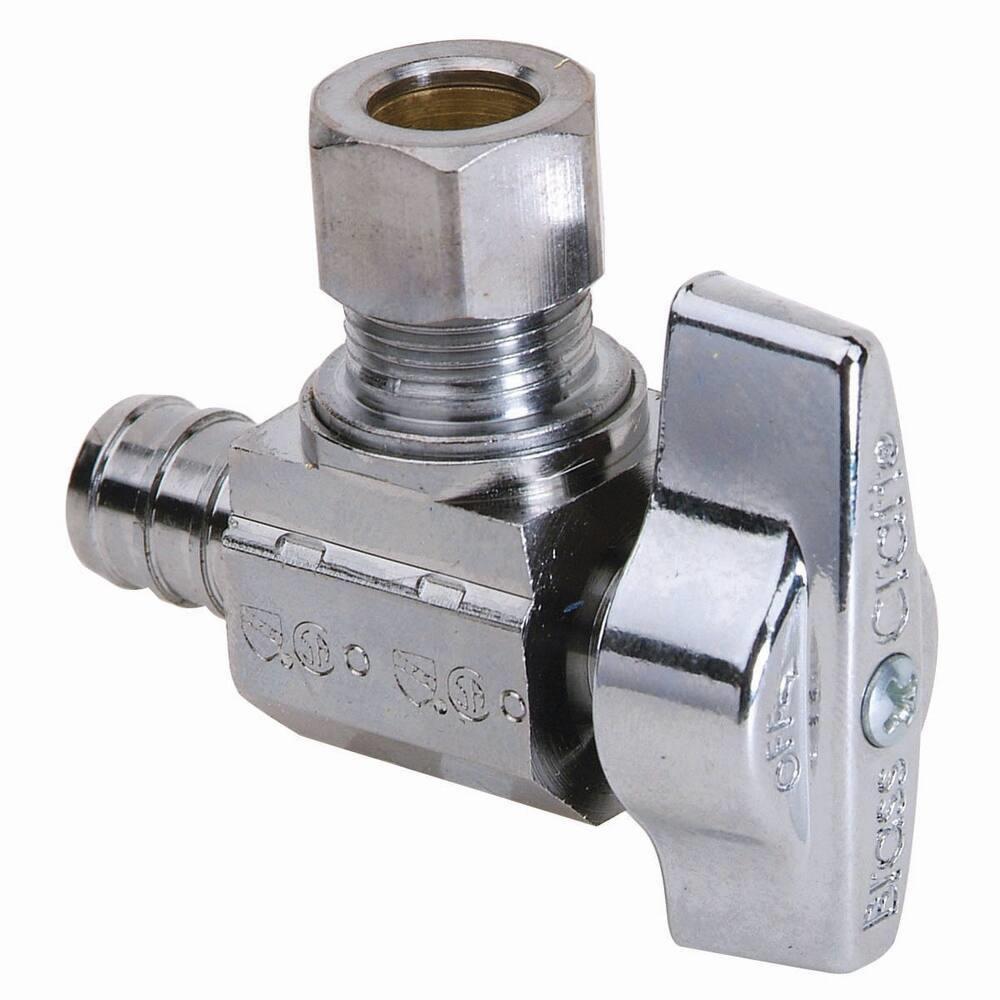

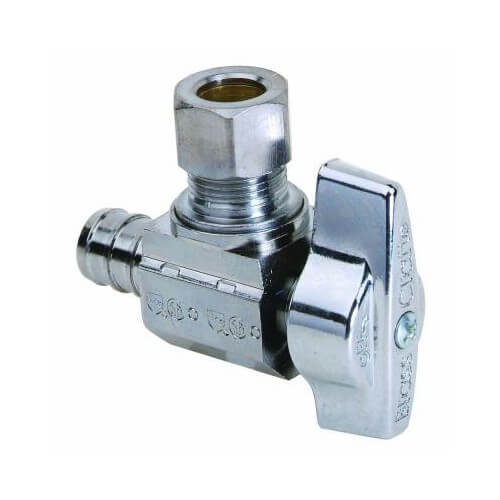

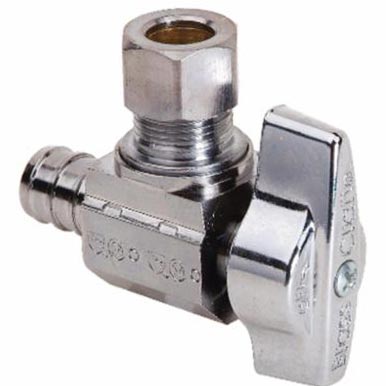

BrassCraft KTBRPX19X C KTBRPX19 Series 1/2 x 3/8 in. F1807 x OD Compression Ball Handle Angle Supply Stop Valve

Product Description

The BrassCraft KTBRPX19X C is a 1/2 inch PEX crimp x 3/8 inch OD compression ball handle angle supply stop valve. This valve is designed for use in potable water distribution systems. It connects with ASTM F876 PEX tubing, complying with ASTM F877 standards for water distribution systems.

• Machined one-piece brass body offers strength and long-lasting durability.
• Blowout-proof design with a plated brass stem ensures reliability during operation.
• Easy-to-remove handle protects against accidental shut-off.

Product Highlights

This stop valve features a positive one-quarter turn shut-off to provide easy control over water flow. The chrome-plated finish adds corrosion resistance, making it suited for various plumbing applications.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: KTBRPX19X C

Technical Specifications

• Body Material: Brass
• Finish: Polished Chrome
• Pressure Rating: 125 psi
• Nominal Size: 1/2 x 3/8 in
• Dimensions: 1.2 x 2.22 in
• Temperature Rating: 40 to 180 deg F
• Media: Water
• Standards: ASME A112.18.1, CSA B125.1, cUPC Listed, IAPMO Listed
