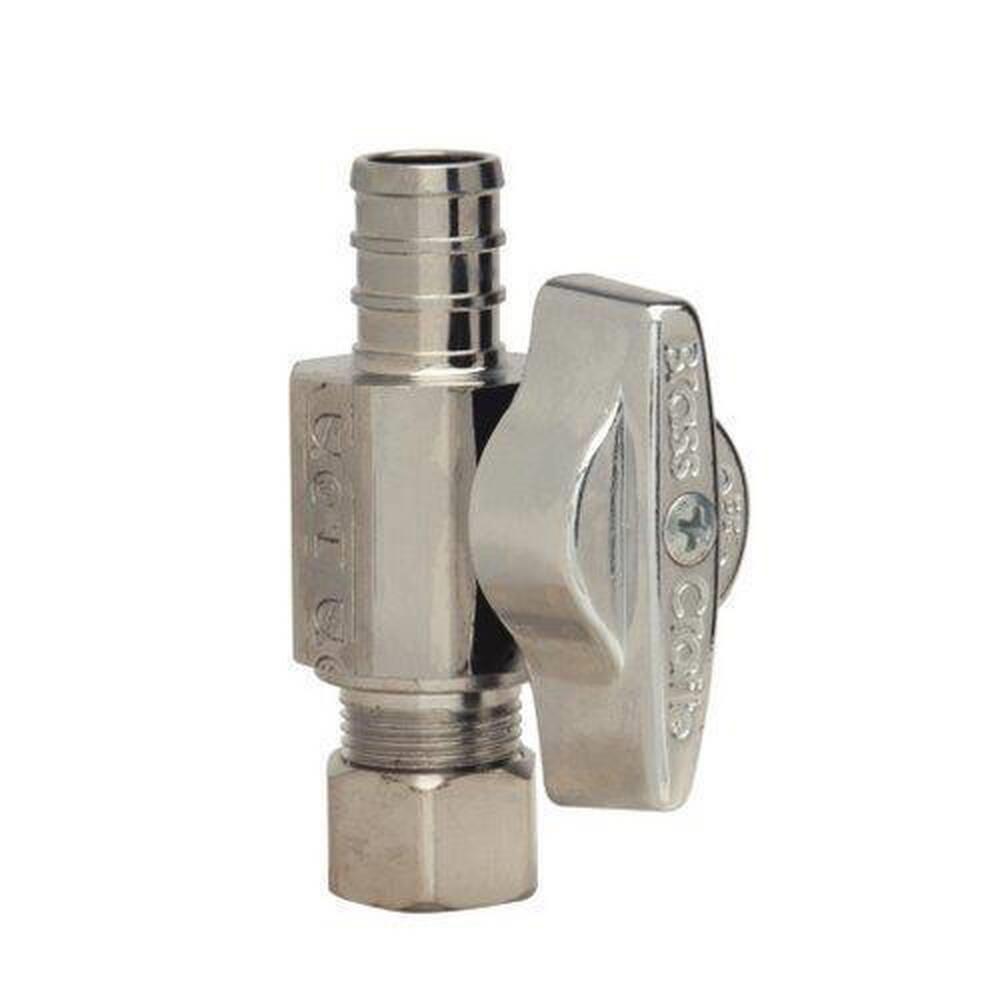

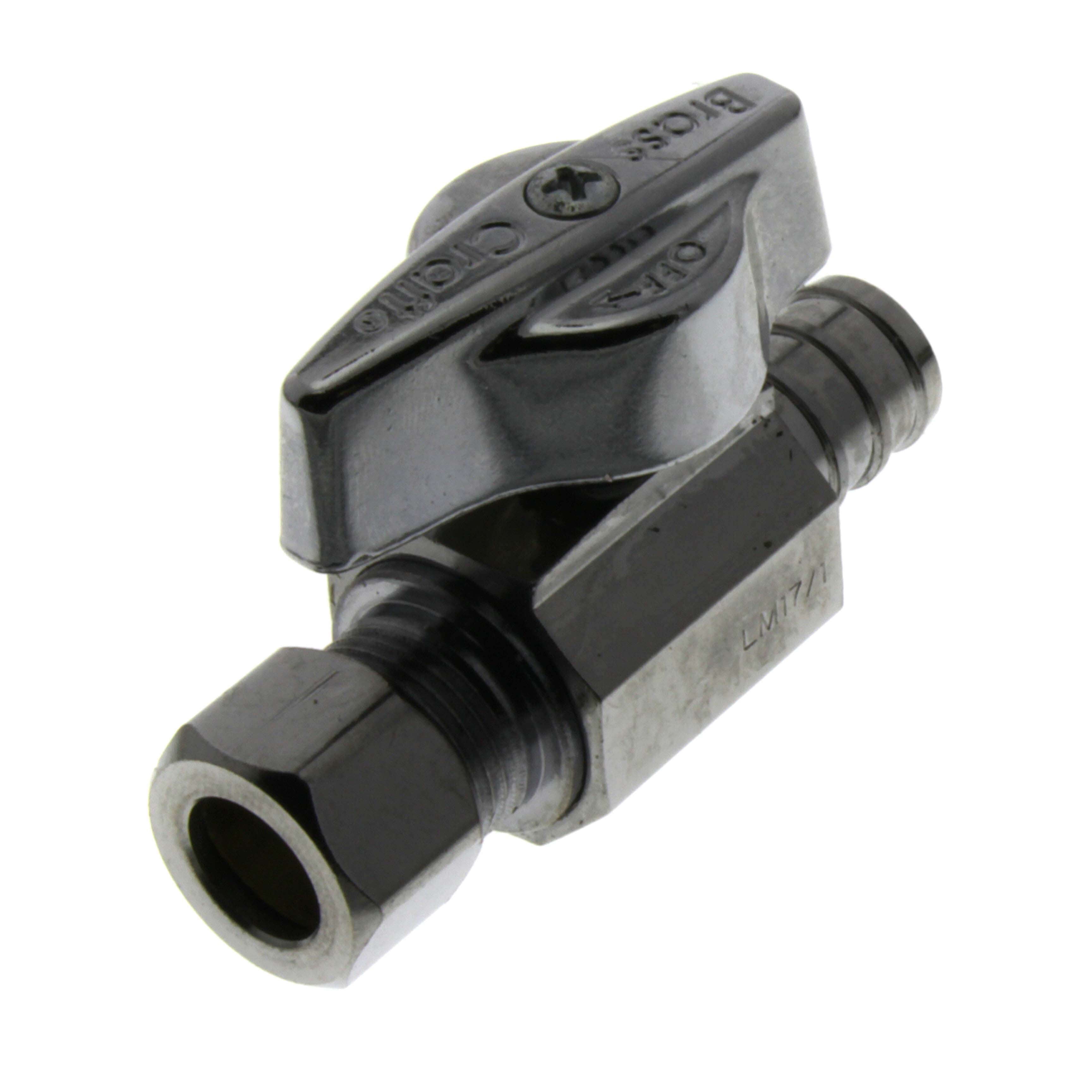

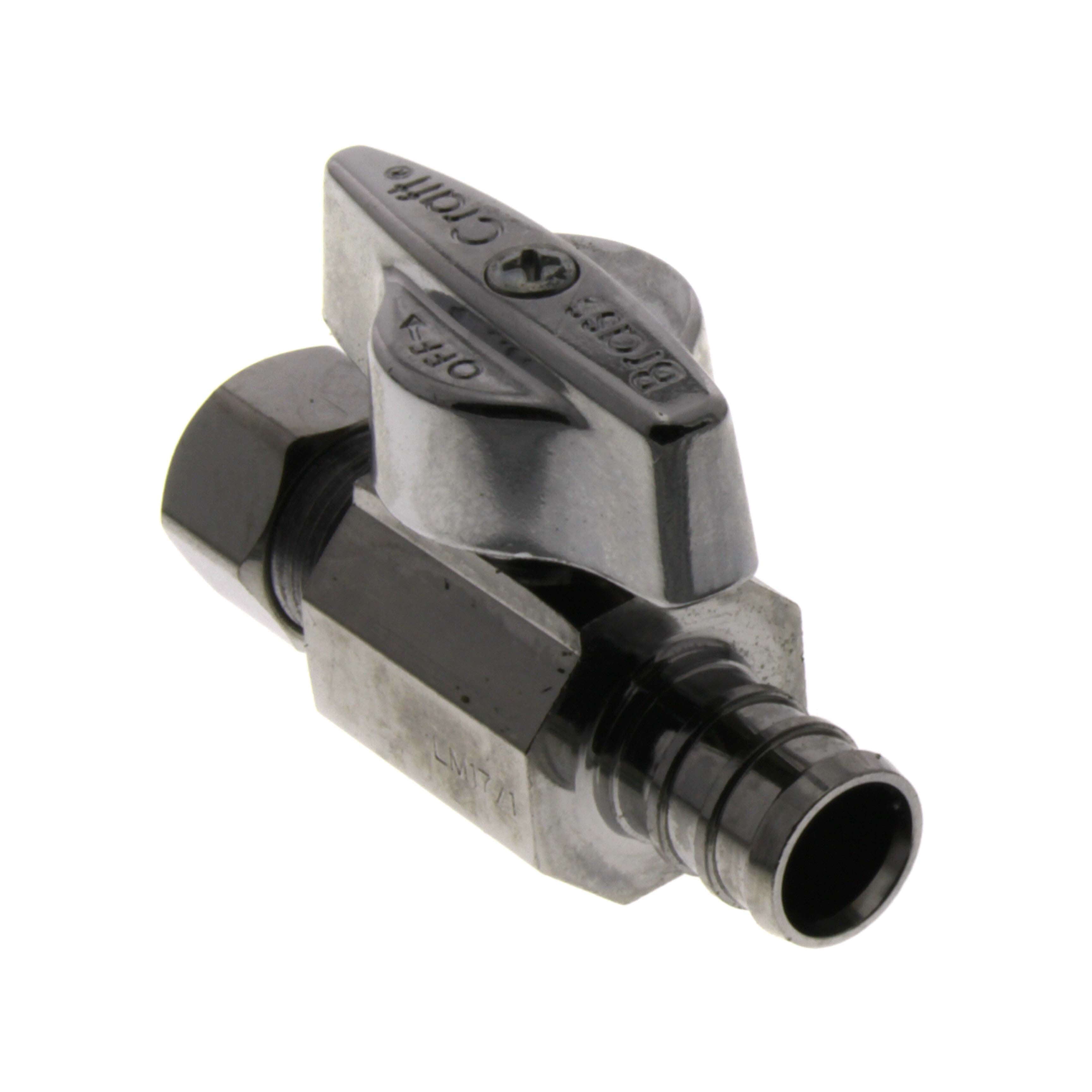

BrassCraft KTBRPX14XC 1/4 Turn Water Stop, Straight Valve, 1/2 Inch Nominal Crimp Barb x 3/8 Inch OD Compression

Product Description

The BrassCraft KTBRPX14XC is a reliable 1/4 turn straight supply stop valve featuring a crimp barb inlet and an OD compression outlet. It operates effectively in potable water distribution systems and is designed for durability and long-lasting performance.

• Strong machined brass body for enhanced durability
• Compatible with PEX tubing and designed to withstand high temperatures
• Positive shut-off with a blow-out proof, plated stem

Product Highlights

This valve is ideal for controlling water flow in various plumbing systems while ensuring leak-free operation.

Product Information

Standard Information

• Brand: BrassCraft
• Part Number: KTBRPX14XC

Technical Specifications

• Body Material: Brass
• Finish: Polished Chrome
• Nominal Size: 1/2 x 3/8 inch
• Pressure Rating: 125 psi
• Temperature Rating: 40 to 180 degrees Fahrenheit
• End Style: Barb PEX x Compression
• Media: Water
• Mfg Standards/Approvals: ASME A112.18.1|CSA B125.1|cUPC Listed|IAPMO Listed
