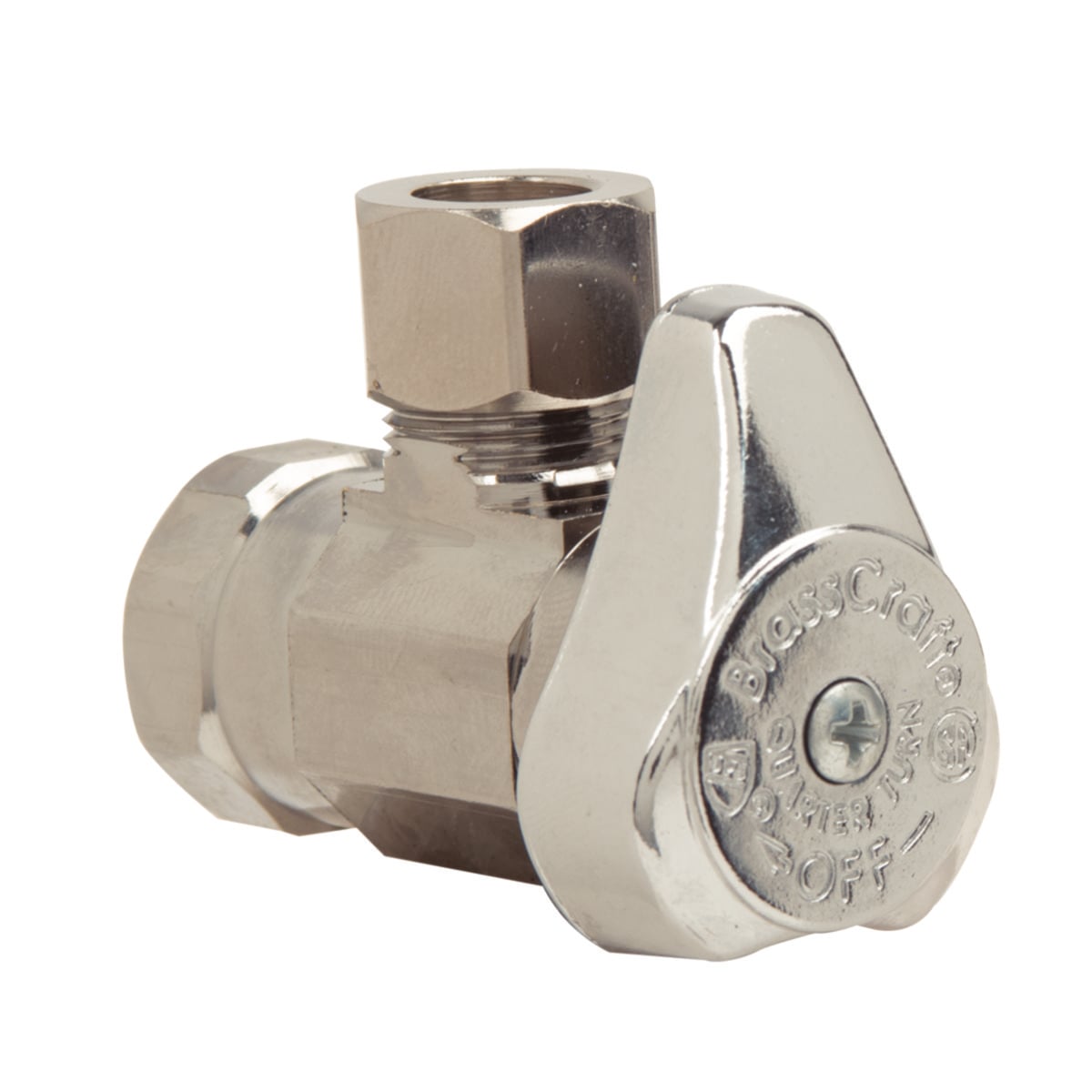

Brasscraft G2R15XC 1/4-Turn Water Stop, Angle Valve, 3/8 inch FIP x 3/8 inch OD Compression

Product Description

The Brasscraft G2R15XC 1/4-Turn Angle Valve controls water flow to household plumbing fixtures such as faucets, toilets, dishwashers, icemakers and washing machines. This valve is used where the water pipe enters the room from the wall. A 90-degree turn of the handle stops water flow for maintenance and repair.

• Machined, 1-piece body construction for strength, durability and long-lasting performance
• Compatible with iron pipe
• Smooth, on/off flow control with a 90 degree turn of the handle

Product Highlights

This angle valve features a 3/8 inch FIP inlet and 3/8 inch OD compression outlet. It is suitable for potable water distribution systems with a temperature rating of 40 to 140F and a pressure rating of 125 psi maximum.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: G2R15XC
• Country of Origin: USA

Technical Specifications

• Finish: Chrome
• Material: Brass, Plastic
• Brand: Brasscraft
• Inlet: 3/8 in. FIP
• Outlet: 3/8 in. OD Compression
• Valve Type: Angle Supply Stop Valve
• Temperature Rating: 40 to 140F
• Pressure Rating: 125 psi maximum
• Intended Use: Potable water distribution systems
• Country of Manufacture: USA
• ANSI: ANSI 14, ANSI 61
• ASME: ASME A112.18.1-2005, ASME A112.18.1.6
• ASTM: ASTM F-1807, ASTM F-876, ASTM F-877
• CSA Certified: CSA B125.1-05
• Collection: G2R15 Series
• Color Finish Category: Chromes
• Color Finish Name: Chrome Plated
• End Connection 1: FPT
• End Connection 2: Compression
• End Connections: FPT x Compression
• Handle Type: Quarter Turn
• IAPMO Listed: No
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 2-3/4
• Material Type: Polymer
• Maximum Temperature: 140
• Minimum Temperature: 40
• NSF: NSF 14, NSF 61
• NSF Certified: Yes
• Origin: Domestic
• Pressure - High: 125
• Pressure - Maximum: 125 psi
• Temperature Range: 40 to 140 Deg F
• UL Listed: No
• UPC: 026613145143
• Valve Body Material: Brass
• Valve Body Style: Angle
• Valve Operator: Quarter Turn Handle
• Valve Size: 3/8 in
• Width: 2-1/4
• Model: G2R15XC
