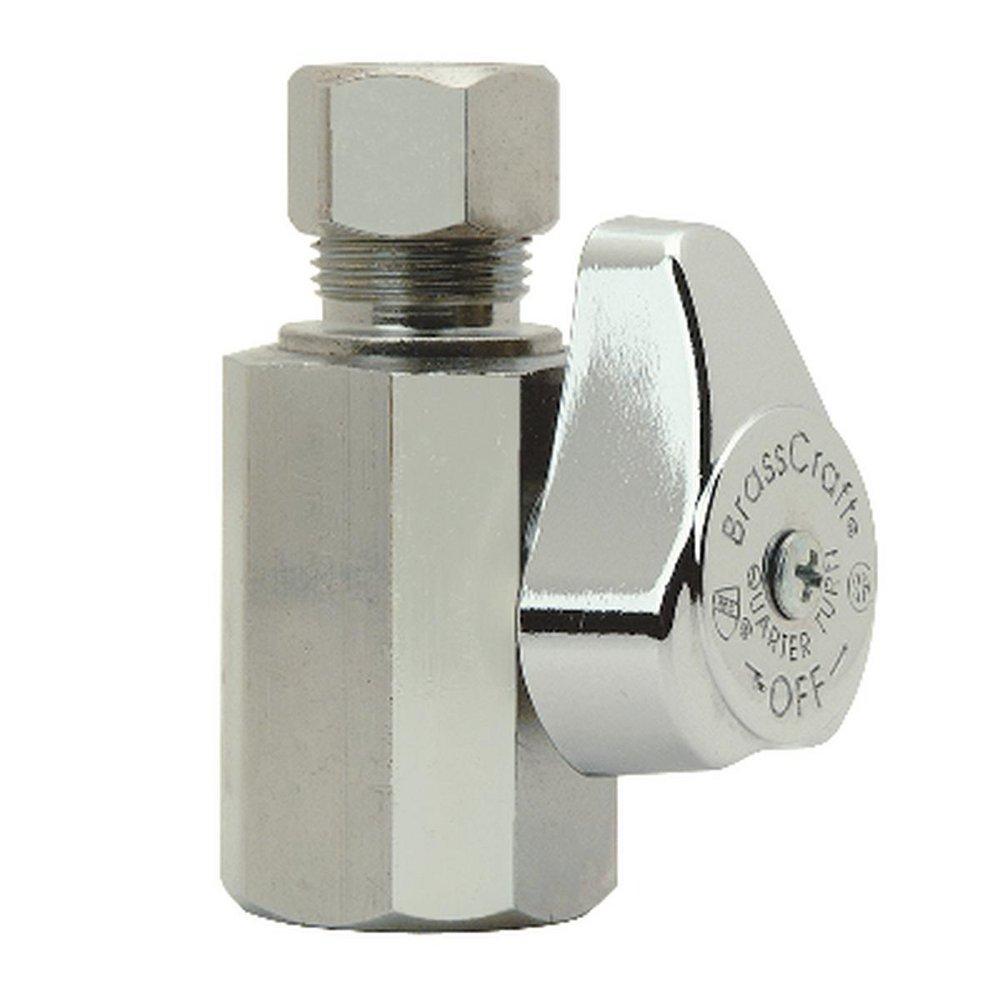

BrassCraft G2R12X C1 1/2 x 3/8 in. FIPT x OD Compression Lever Handle Straight Supply Stop Valve

Product Description

BrassCraft G2R12X C1 is a reliable supply stop valve designed for effective control in plumbing applications. The valve features a 1/2 inch female iron pipe thread inlet and a 3/8 inch outer diameter compression outlet. It ensures smooth on-off operation with a quarter-turn mechanism.

• 13/2 inch FIP Inlet x 3/8 inch OD Compression Outlet
• Chrome-plated finish
• Positive quarter-turn shut-off

Product Highlights

This valve is constructed from a machined one-piece brass body, providing strength and durability. It is compatible with iron pipe systems and is ideal for use in potable water distribution systems. The valve is not intended for recirculating water systems that exceed a temperature of one hundred fifteen degrees Fahrenheit.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: G2R12X C1

Technical Specifications

• Inlet Type: 1/2 inch FIP
• Outlet Type: 3/8 inch OD Compression
• Construction: One-piece brass body
• Shut-off Type: Quarter-turn
• Finish: Chrome
• Leak Testing: 100% tested for reliability
• Application: Potable water systems
• Temperature Limit: Not for use above 115 degrees Fahrenheit
