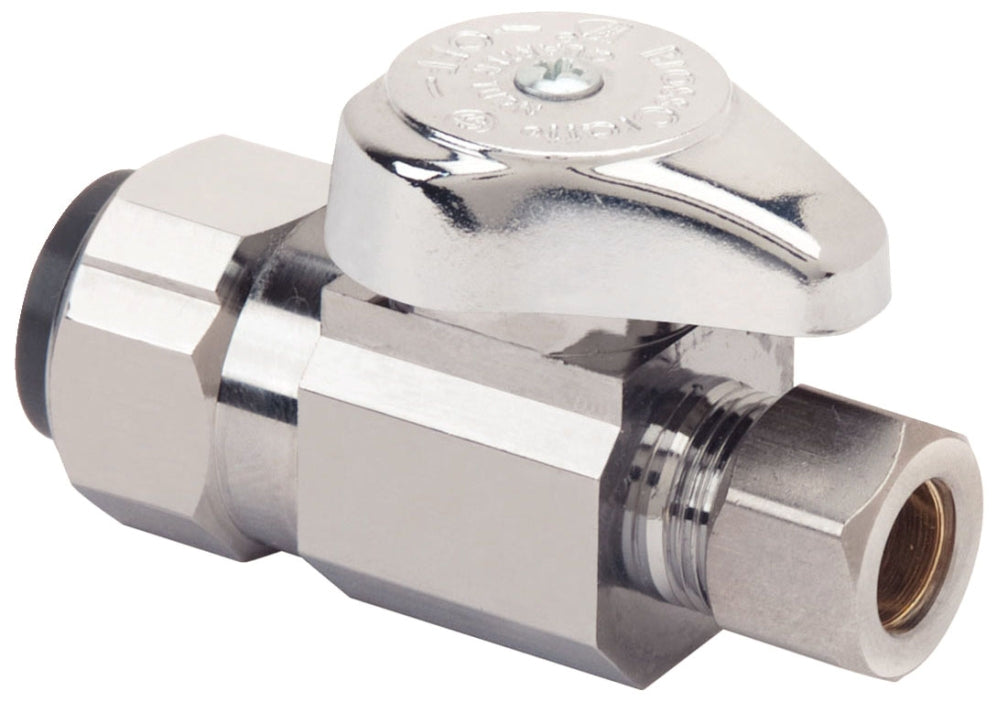

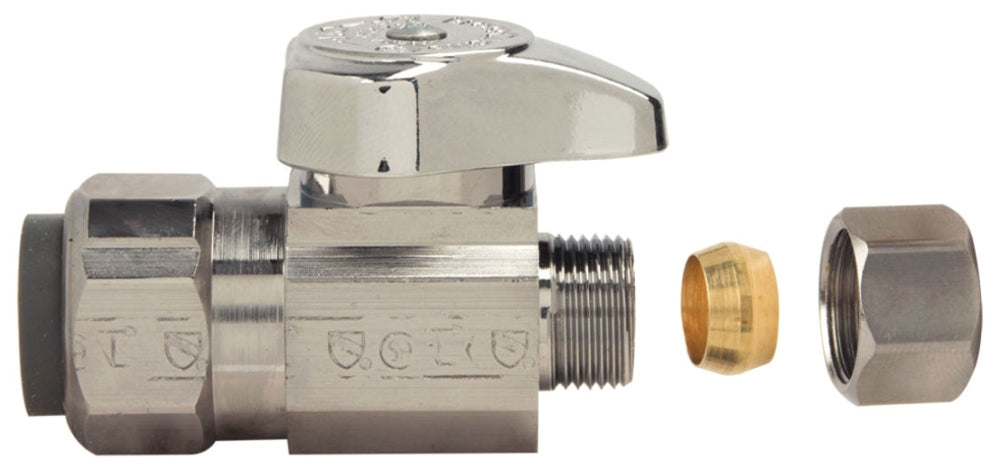

BrassCraft G2PS14XC 1/4-Turn Water Stop, Straight Valve, 1/2 Inch Nominal Push Connect x 3/8 Inch OD Compression

Product Description

The BrassCraft G2PS14XC is a 1/4-turn straight water supply stop valve. It connects with a nominal size of 1/2 inch push connect and a 3/8 inch OD compression outlet. This valve is made of chrome-plated brass which ensures durability and resistance to corrosion. It operates with a simple quarter turn for quick shut-off to plumbing fixtures such as faucets or dishwashers.

• Push Connect x Compression connection type
• Pressure rated up to 125 PSI
• Temperature rated for 40 to 140 degrees Fahrenheit

Product Highlights

Designed for both residential and commercial applications, this valve is lead-free and adheres to applicable standards including ASME and IAPMO.

Product Information

Standard Information

• Manufacturer: BrassCraft
• MPN: G2PS14XC

Technical Specifications

• Type: Straight
• Nominal Size: 1/2 inch x 3/8 inch
• End Connection: Push Connect x Compression
• Pressure Rating: 125 PSI
• Temperature Rating: 40 to 140 degrees Fahrenheit
• Material: Chrome Plated Brass
• Compliance: IAPMO, CSA
• Features: Includes EPDM O-Ring and other durable components
