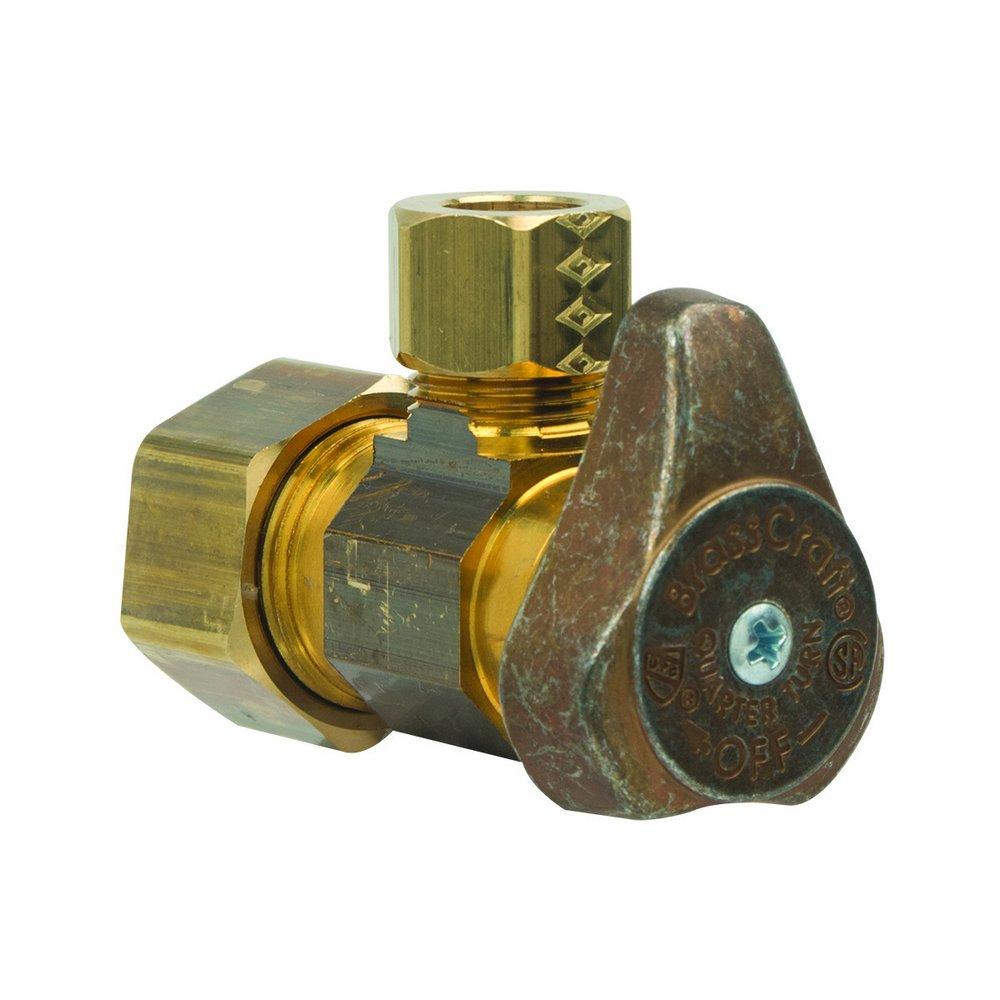

BrassCraft G2CR19XR 1/2 x 3/8 in. Compression x OD Compression Angle Supply Stop Valve

Product Description

The BrassCraft G2CR19XR is a reliable supply stop valve designed for use in potable water distribution systems. It features a nominal compression inlet of one half inch and an outlet of three eighths inch OD compression. This valve is not recommended for recirculating water systems that exceed continuous use temperatures of one hundred fifteen degrees Fahrenheit. The robust construction ensures durability and long-lasting performance.

• One-piece brass body for strength and durability
• Easy-to-remove handle prevents accidental operation
• Leak tested to ensure reliable performance

Product Highlights

Utilized primarily in household plumbing installations, this angle valve allows for easy control of water flow to various fixtures such as faucets, toilets, and washing machines. It assures smooth operation with a quarter-turn shut-off mechanism, enabling quick maintenance without shutting off water to the entire home.

Product Information

Standard Information

• Brand: BrassCraft
• Part Number: G2CR19XR

Technical Specifications

• Inlet Size: 1/2 inch nominal compression
• Outlet Size: 3/8 inch OD compression
• Body Type: Angle
• Material: Brass
• Temperature Rating: 40 to 140 degrees Fahrenheit
• Pressure Rating: 125 psi maximum
• Lead Free: Yes
