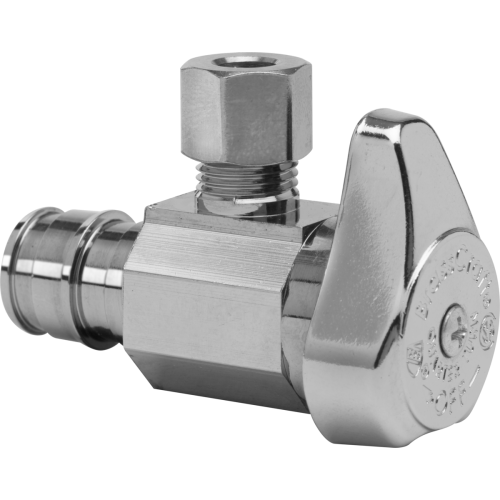

Brasscraft G2CR19X MBD 1/2 in. Nom Compression Inlet x 3/8 in. OD Compression Outlet

Product Description

The Brasscraft G2CR19X MBD is a compression angle valve that manages water flow to various household plumbing fixtures including faucets, toilets, dishwashers, icemakers, and washing machines. This valve is essential where water pipes enter from the wall, allowing a convenient stop to the water flow for maintenance or emergency situations. The durable machined brass body ensures strength and longevity.

• Machined brass construction for durability
• Compatible with copper piping
• On/off flow control requires a 90-degree turn

Product Highlights

This angle valve is designed for potable water systems and is not suitable for recirculating systems with temperatures above 115 degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Brasscraft
• Valve Type: Angle Valve

Technical Specifications

• Inlet: 1/2 in. Nom Comp Inlet
• Outlet: 3/8 in. OD Comp Outlet
• Use: For potable water distribution systems
• Temperature Rating: 40 to 160 degrees Fahrenheit
• Pressure Rating: 125 psi
• Material: Machined one-piece brass body
• Nominal Size: 1/2 x 3/8 in
• End Style: Compression
• Media: Water
• Body Material: Brass
• Trim Material: C36000 Brass
• Softgoods Material: Santoprene Stem Barrel/Rubber O-Ring
• Domestic/Import: Domestic
