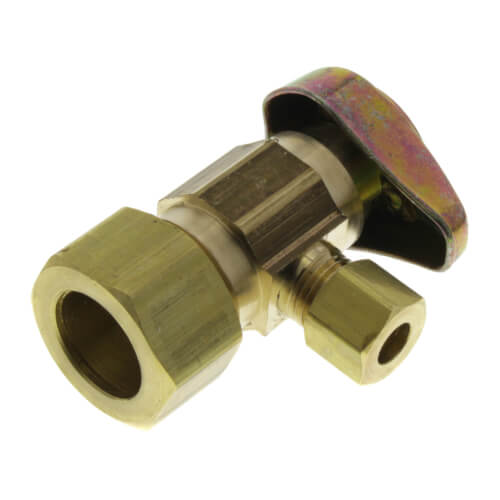

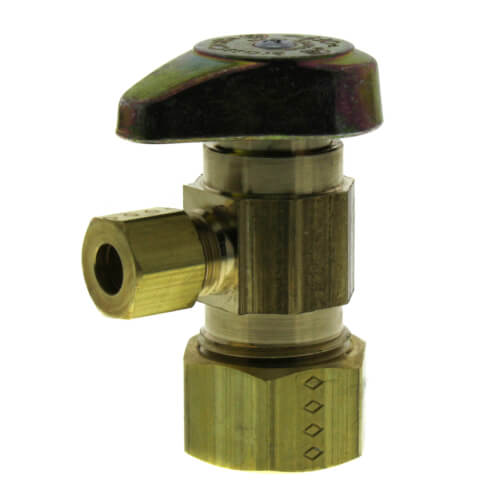

Brasscraft G2CR09XR 1/4-Turn Water Stop, Angle Valve, 1/2 Inch Nominal Compression x 1/4 Inch OD Compression

Product Description

Brasscraft G2CR09XR is a 1/4-turn angle stop valve designed to control water flow to various household plumbing fixtures such as faucets, toilets, and dishwashers. This valve is commonly installed where the water pipe enters from the wall. A simple 90-degree turn of the handle will stop the water flow to the fixture, making it easy to perform maintenance without disrupting the entire plumbing system.

• Compatible with both copper and PEX tubing.
• Features a one-piece body construction for long-lasting durability.
• Designed for easy operation with a smooth quarter-turn mechanism.

Product Highlights

This valve is ideal for use where a convenient means to stop water flow is needed. It supports an inlet size of half an inch and an outlet size of one-fourth inch, ensuring broad compatibility across different plumbing systems.

Product Information

Standard Information

• Brand: Brasscraft
• Part Number: G2CR09XR

Technical Specifications

• Material: Rough Brass
• Inlet Size: 1/2 inch Nominal Compression
• Outlet Size: 1/4 inch OD Compression
• Temperature Rating: 40 to 140 degrees Fahrenheit
• Pressure Rating: 125 psi maximum
• Lead Free: Yes
• Certifications: IAPMO and CSA listed
• Body Pattern: Angle
