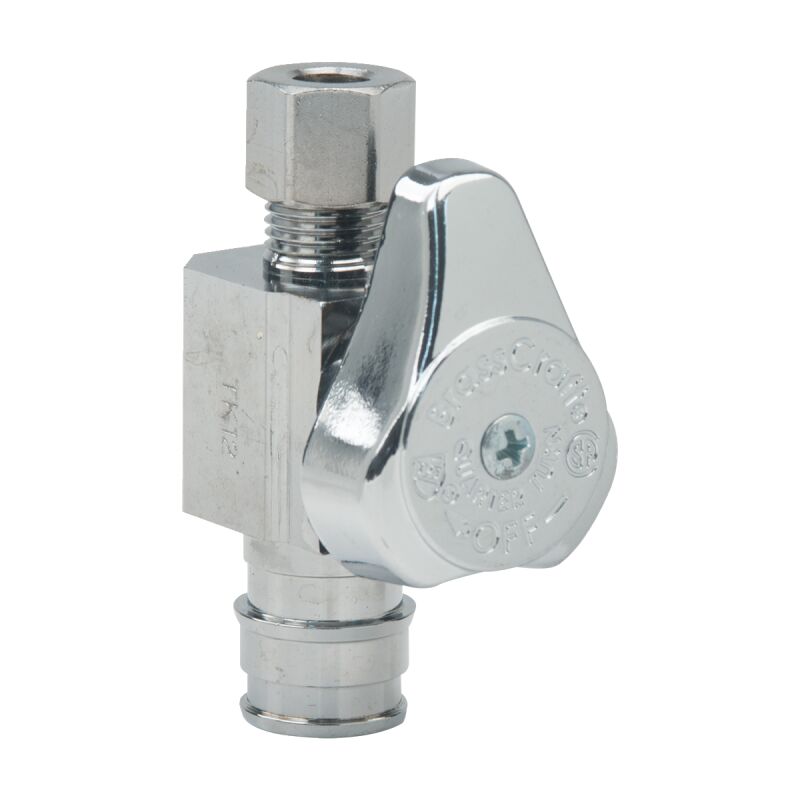

Brasscraft G2CPN14XC1 1/2 Nominal Press x 3/8 OD Compression 1/4 Turn Straight Stop Valve

Product Description

The Brasscraft G2CPN14XC1 is a reliable 1/4 turn straight stop valve that effectively manages water flow to various plumbing fixtures. It consists of a one-piece brass body, ensuring durability and strength. Designed for use with copper pipes, the valve allows for easy and safe installation without the need for heat or flame. The chrome-plated brass ball enhances corrosion resistance and provides smooth operation, enabling effortless control of water flow with a simple 90-degree turn of the handle.

• One-piece brass body for durability
• Compatible with copper pipe (ASTM B88 tubing)
• Safe installation without heat or flame

Product Highlights

This valve provides efficient water control and is ideal for plumbing installations.

Product Information

Standard Information

• Inlet Size: 1/2 inch
• Outlet Size: 3/8 inch

Technical Specifications

• Inlet Fitting End Type: Press Connect
• Outlet Fitting End Type: Compression
• Handle: 1/4 Turn
• Temperature Rating: 40°F to 160°F
• Pressure Rating: 125 psi maximum
• Material: Brass/Chrome
