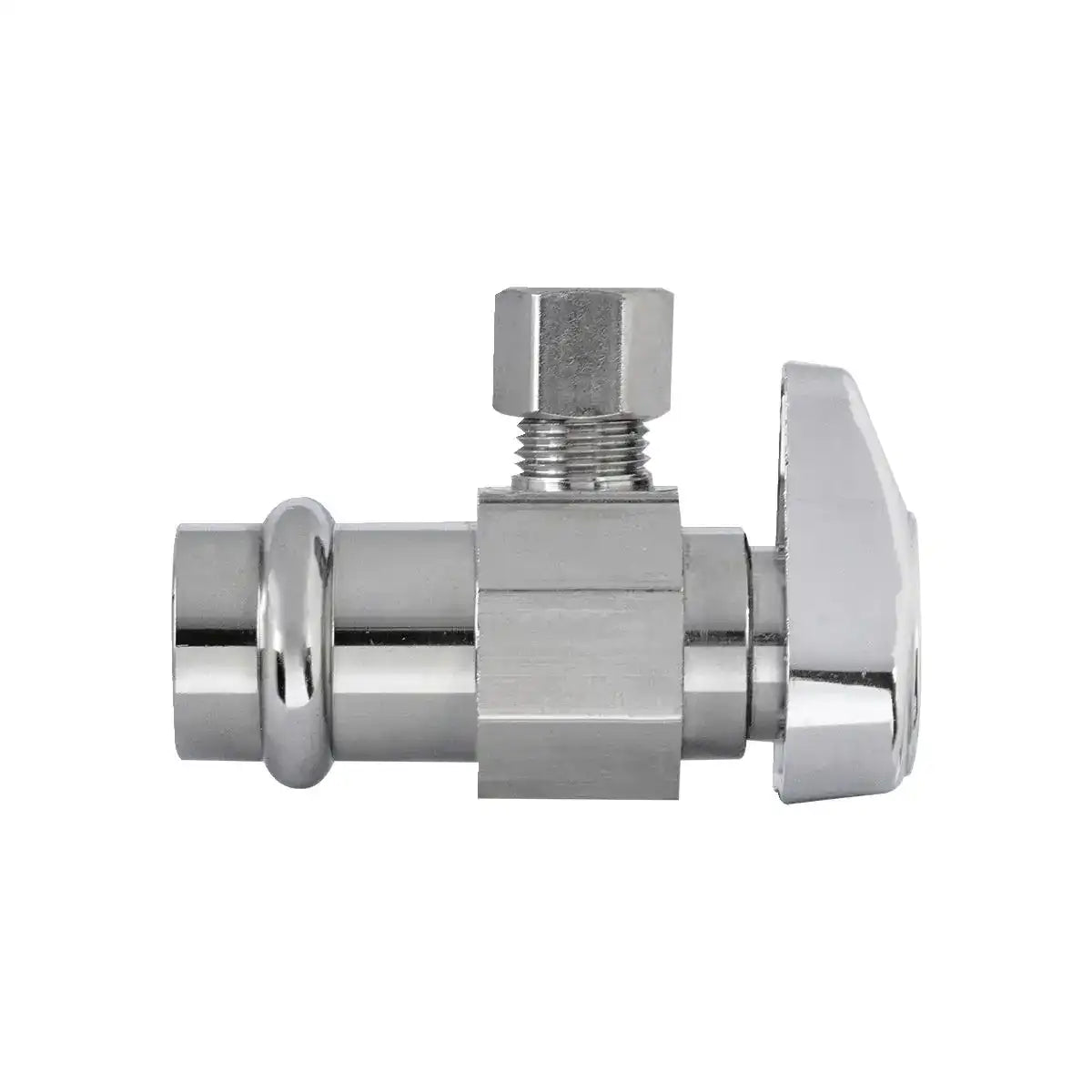

Brasscraft g2cpn09xc1 Angle Stop Valve 1/4-turn Ball Valve Press X Compression 1/2 Inches X 1/4 Inches Od

Product Description

The BrassCraft G2CPN09XC1 is a 1/4-turn angle stop valve designed for residential and light commercial plumbing applications. It features a press x compression end style, making it a practical choice for connecting water supply lines to fixtures such as faucets, toilets, and other under-sink or in-wall plumbing connections. The inlet side accepts a 1/2 inch press connection, while the outlet side uses a 1/4 inch OD compression fitting. This configuration gives plumbers a fast, reliable shutoff point without the need for soldering at the inlet. The body is constructed from solid brass, a material well known for its resistance to corrosion and long service life in potable water systems. The chrome plated brass ball inside provides a smooth, consistent shutoff action every time the valve is operated. The quarter-turn handle design means the valve goes from fully open to fully closed in a single 90-degree turn, reducing the chance of leaks caused by over-tightening or partial closure that can occur with older multi-turn designs. This valve is rated for pressures up to 125 PSI and handles temperatures between 40 and 160 degrees Fahrenheit, making it suitable for both hot and cold water supply lines in standard residential plumbing systems. At 2.3 inches in length, 2.9 inches in width, and 1.4 inches in height, it fits easily in tight spaces behind walls and under cabinets. Plumbers, pipefitters, and general contractors working on new construction or fixture replacement jobs will find this valve straightforward to install and dependable over the long term. It is a code-compliant, pressure-tested solution for angle stop applications where a press inlet connection is specified.

• 1/4-turn ball valve design for fast, reliable shutoff on hot or cold water supply lines
• Brass body with chrome plated brass ball for corrosion resistance and long service life
• Press x compression end style eliminates soldering at the inlet for faster installation

Product Highlights

The BrassCraft G2CPN09XC1 angle stop valve delivers a durable, code-ready shutoff solution with a press inlet and compression outlet, rated to 125 PSI for standard residential plumbing installations.

Product Information

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: G2CPN09XC1

Technical Specifications

• Item Type: Plumbing Valves
• Valve Type: Ball Valve
• Shut-Off Type: 1/4 Turn Ball
• End Style: Press x Compression
• Handle Type: Quarter Turn
• Inlet Connection Size: 1/2 inches
• Outlet Connection Size: 1/4 inches OD
• Nominal Size: 1/2 x 1/4 inches
• Body Material: Brass
• Ball Material: Chrome Plated Brass
• Pressure Rating: 125 PSI
• Temperature Range: 40 to 160 degrees Fahrenheit
• Length: 2.3 inches
• Width: 2.9 inches
• Height: 1.4 inches
• Weight: 0.24 pounds
