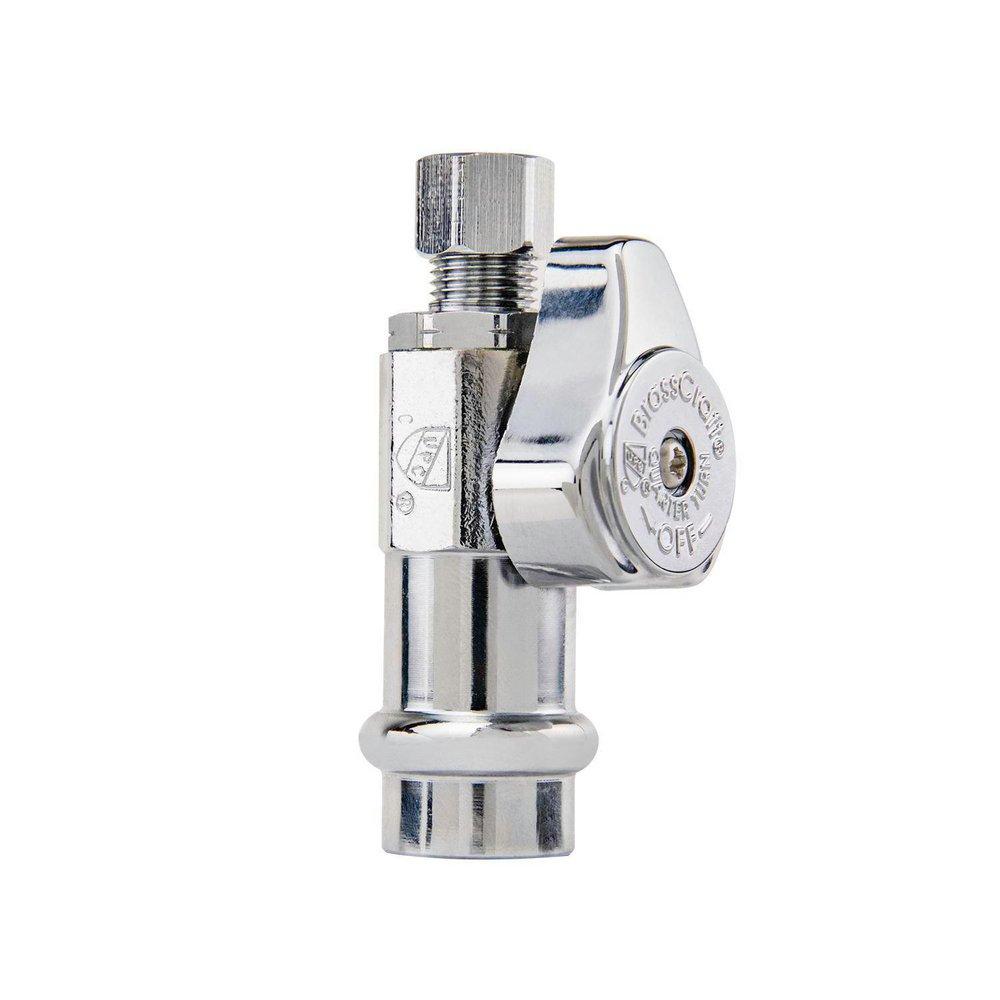

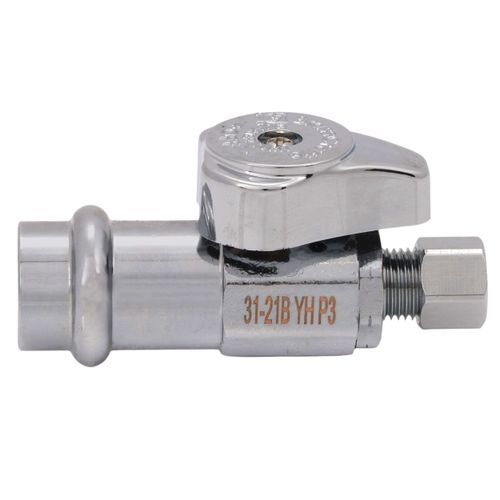

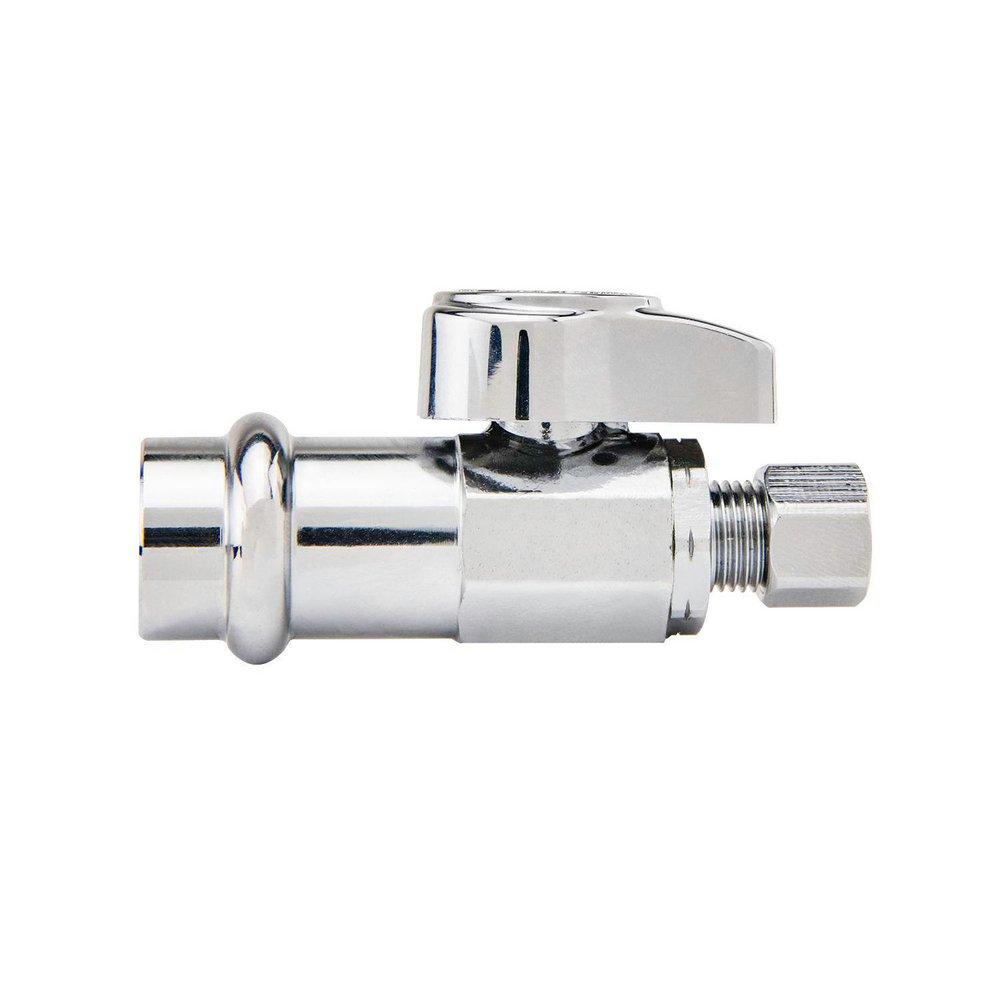

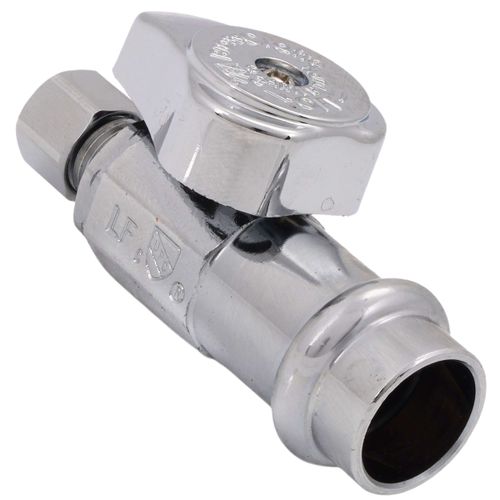

Brasscraft G2CPN04X C1 1/2 inches Nominal Press x 1/4 inches OD Compression 1/4 Turn Straight Stop Valve

Product Description

The BRASSCRAFT G2CPN04X C1 is a 1/4 turn chrome straight stop valve with a 1/2 Inch Nominal Press x 1/4 Inch OD Compression. It features a one-piece brass body for strength and compatibility with copper pipes. Safe installation is ensured without heat or flame. The 1/4 turn handle offers easy on/off flow control.

• One-piece brass body for strength and durability
• Compatible with copper pipe (ASTM B88 tubing)
• Safe installation without the need for heat or flame

Product Highlights

This stop valve provides easy on/off flow control and is 100% leak tested to ensure reliable, leak-free performance.

Product Information

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: G2CPN04X C1
• Country of Origin: US

Technical Specifications

• Material: Brass
• Lead Free: Yes
• Size: 1/2" x 1/4"
• Outlet Type: OD Compression
• Finish: Chrome Plated
• Inlet Type: Press
• Product Type: Supply Stop
• Inlet Size: 1/2"
• Outlet Size: 1/4"
• Body Pattern: Straight
• Type: 1/4 Turn
• Temperature Rating: 40° to 160°F
• Pressure Rating: 125 psi maximum
• Model: G2CPN04X C1
• Certifications: ASME A112.18.1, CSA B125.1, NSF61, NSF372
• Installation: Wet or Dry Systems
• Connection Type: Compression
• Inlet Service Size: 1/2 in
• Maximum Temperature: 160
• Minimum Temperature: 40
• ANSI: ANSI 372, ANSI 61
• ASME: ASME A112.18.1
• ASTM: ASTM B-88
• CSA Certified: CSA B125.1
• Color Finish Category: Chromes
• Color Finish Name: Chrome
• End Connection 1: Press
• End Connection 2: Compression
• End Connections: Press x Compression
• Handle Material: ABS
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Origin: Global
• Pressure - High: 125
• Recommended Valve Application: Potable Water
• Temperature Range: 40 to 160 Deg F
• UL Listed: No
• Valve Body Material: Brass
• Valve Body Style: 1 piece
• Valve Operator: Quarter Turn Handle
• Valve Seat Material: PTFE
• Valve Size: 1/2 in x 1/4 in
• Valve Type: Straight Supply Stop Valve
