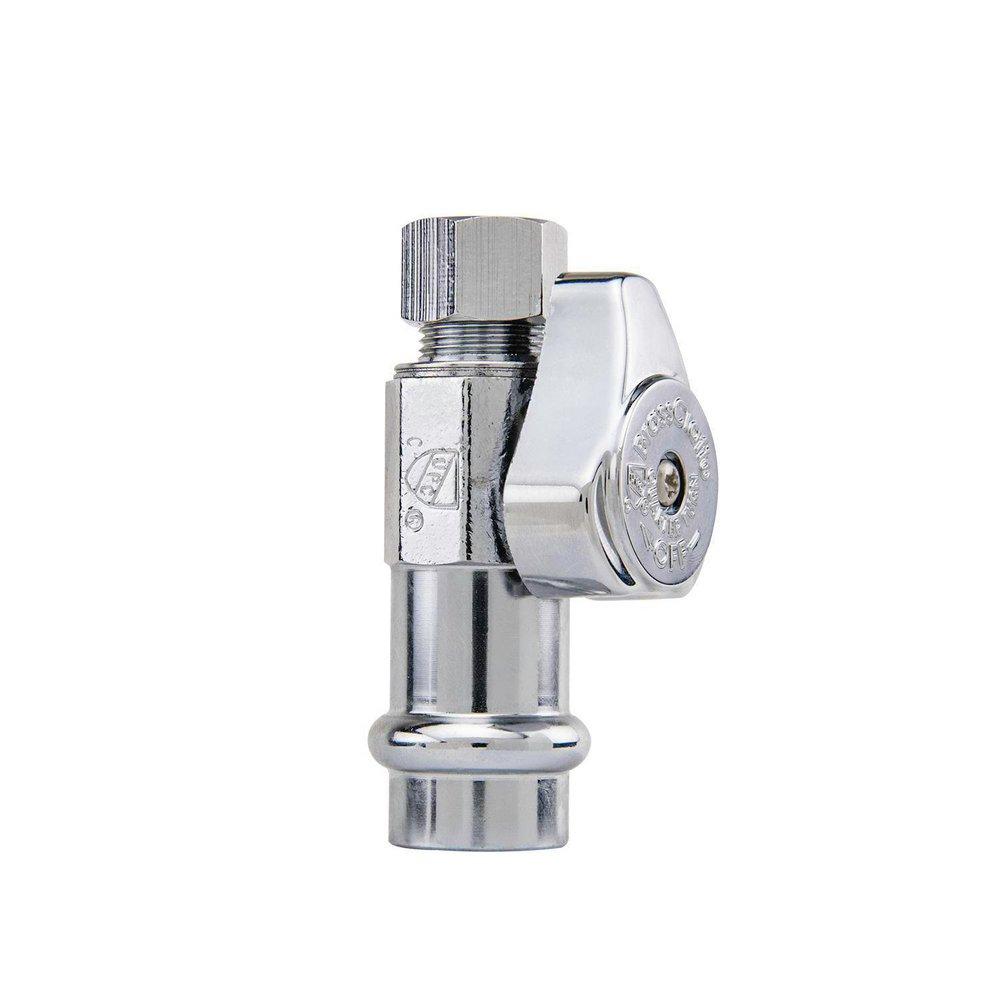

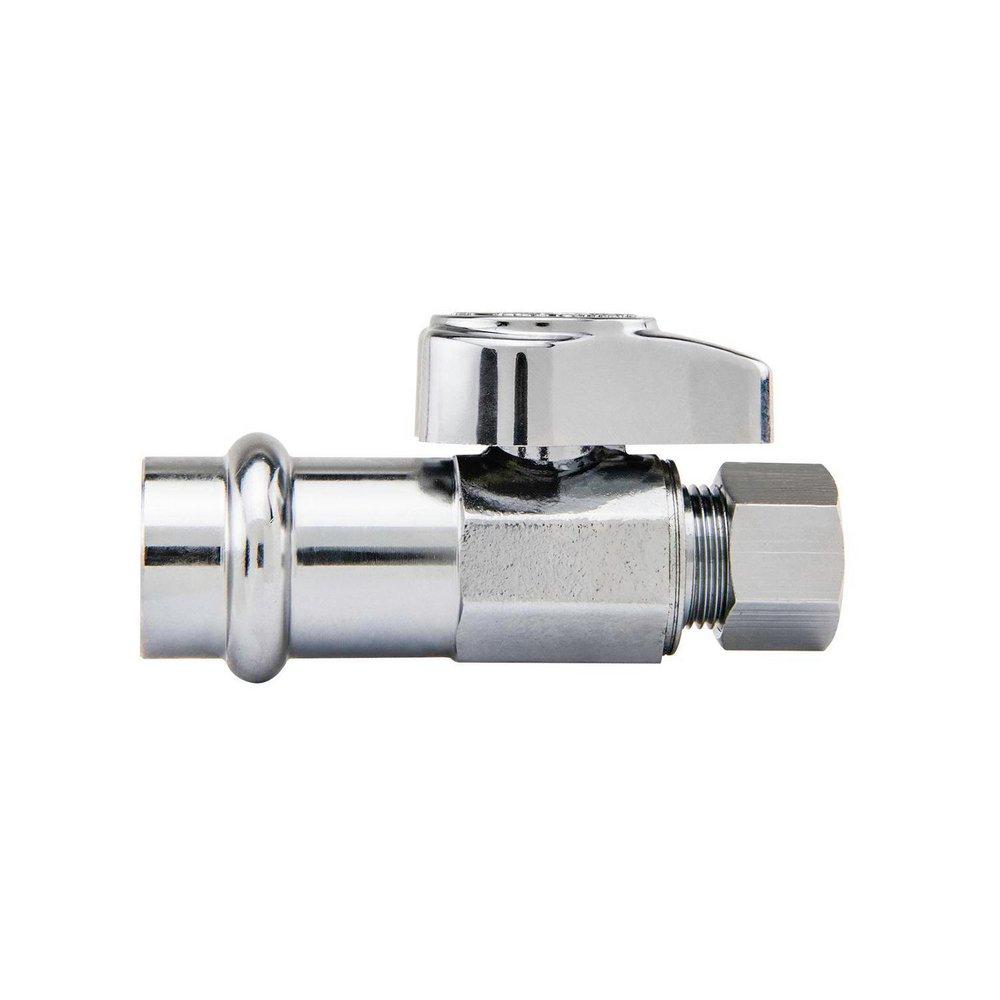

BrassCraft G2CP14XC1 1/2 x 3/8 in. Press x Compression Straight Supply Stop Valve

Product Description

The BrassCraft G2CP14XC1 is a supply stop valve made for plumbing applications. This valve connects a half-inch nominal press pipe to a three-eighths inch outer diameter compression pipe. It features a chrome finish for corrosion resistance and an easy-to-remove handle that prevents accidental operation during installation.

• Compatible with copper pipe (ASTM B88)
• One-piece brass body for durability
• Connection capability on both wet and dry systems

Product Highlights

This valve allows for safe installation without the need for heat or flame. The 1/4 turn handle facilitates easy flow control with a simple 90-degree turn.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: G2CP14XC1

Technical Specifications

• Material: Chrome Plated Brass
• Pressure rating: 125 psi maximum
• Temperature rating: 40 degrees to 160 degrees Fahrenheit
• Certification: IAPMO to ASME A112.18.1/CSA B125.1
• Weight: 0.215 pounds
• Dimensions: Shipping depth 2.9 inches, width 2.4 inches, height 1.35 inches
• Inlet type: Press
• Outlet type: OD Compression
