BrassCraft G2CEPX19XC Angle Stop 1/2 in. Nom Cold Expansion PEX Barb x 3/8 in. O.D. Comp

Product Description

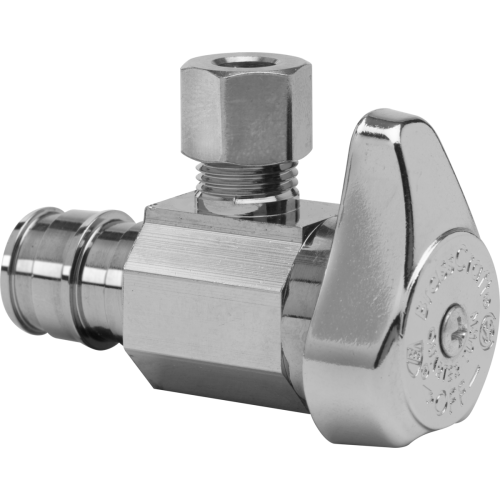

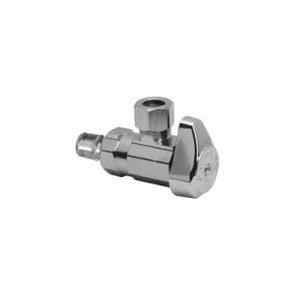

The BrassCraft G2CEPX19XC is a 1/2 inch nominal cold expansion PEX barb inlet angle stop valve. It has a 3/8 inch outer diameter compression outlet. This valve is essential for controlling water flow to various household plumbing fixtures. It is commonly used for faucets, toilets, icemakers, dishwashers, and washing machines. The design allows for easy water flow control where the water pipe enters a room from the wall. With a 90-degree turn, the valve stops water flow, enabling maintenance without shutting off the entire home water supply.

• Machined one-piece brass body for durability
• Compatible with PEX piping systems
• One-piece shut-off mechanism ensures smooth operation

Product Highlights

Product Information

Standard Information

• Brand: BrassCraft
• MPN: G2CEPX19XC

Technical Specifications

• Inlet: 1/2 inch nominal cold expansion PEX barb
• Outlet: 3/8 inch O.D. compression
• Type: Angle stop
• Material: Brass
• Finish: Chrome and brass
• Temperature Rating: 40 to 140 degrees F
• Pressure Rating: 125 psi
• Application: Residential and commercial potable water distribution
• Actuation Type: 1/4 turn
