Brasscraft G2CEPX14C Pex Straight Stop 1/2 X 3/8 Inch

Product Description

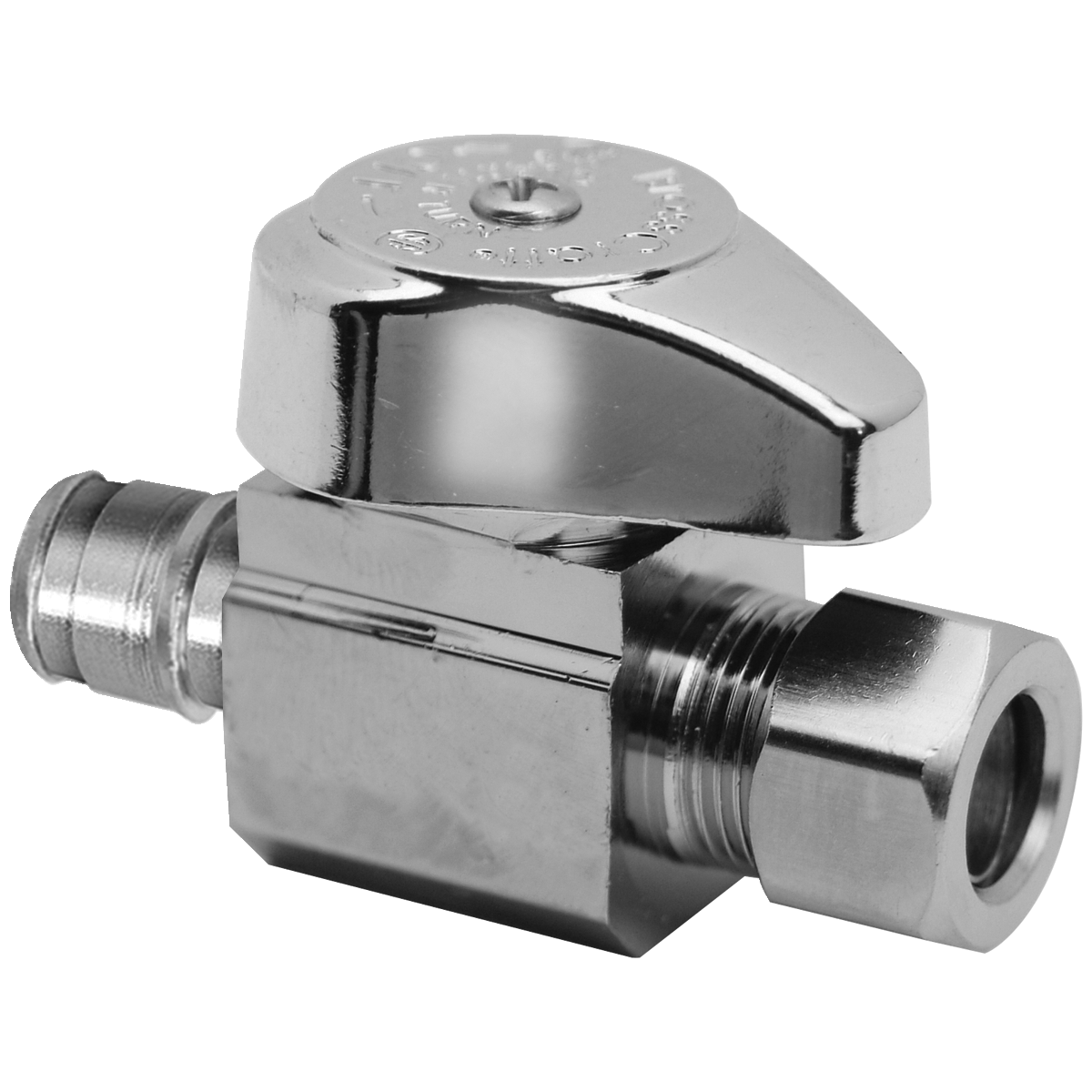

The BRASSCRAFT G2CEPX14C is a 1/4-turn straight stop valve designed to connect a cold expansion PEX supply line to a 3/8 inch OD compression outlet. The inlet accepts 1/2 inch nominal cold expansion PEX connections, making it compatible with the Uponor (Wirsbo) PEX expansion fitting system. This type of stop valve is used to shut off water supply to individual fixtures such as toilets, faucets, and ice makers. Licensed plumbers and experienced installers work with these valves during new construction, remodel, and service calls where PEX supply lines terminate at a fixture shutoff point.

This straight stop is intended for residential and light commercial plumbing applications where a cold expansion PEX main line transitions to a compression-style fixture connector. The 1/4-turn ball-style operation provides fast, reliable shutoff without requiring multiple rotations. It is well suited for under-sink installations, toilet rough-ins, and similar fixture connections where a compact inline stop is needed between the PEX supply and a braided or compression supply line.

Key Features

• 1/2 inch nominal cold expansion PEX inlet compatible with Uponor (Wirsbo) PEX expansion system
• 3/8 inch OD compression outlet for standard fixture supply connections
• 1/4-turn straight stop design for quick, positive shutoff
• Straight configuration for direct in-line installation at the fixture connection point
• Designed for cold water supply line applications

Compatibility

Designed for use with the Uponor (Wirsbo) cold expansion PEX fitting system on the inlet side and standard 3/8 inch OD compression supply lines on the outlet side. Suitable as an OEM-style replacement or new-installation straight stop in residential PEX plumbing systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off the main water supply and depressurize the line before installing or replacing this stop valve. The cold expansion PEX inlet requires the proper expansion tool and ring for the Uponor system — do not attempt to connect using clamp or crimp methods on the expansion-style fitting. Verify the 3/8 inch OD compression connection is seated and the nut is hand-tightened before applying final torque with an appropriate wrench.

Technical Specifications

• Inlet Connection: 1/2 inch Nominal Cold Expansion PEX
• Outlet Connection: 3/8 inch OD Compression
• Valve Type: 1/4-Turn Straight Stop
• UPC: 026613141565

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: G2CEPX14C
