Brasscraft G2BRPX19XC 1/2x3/8 Bxc Stop

Product Description

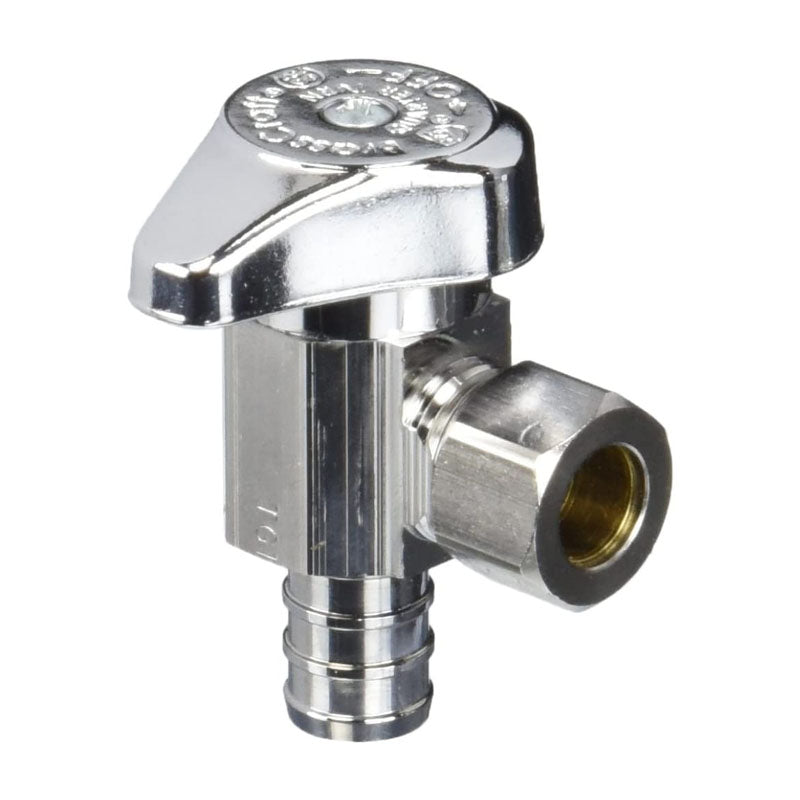

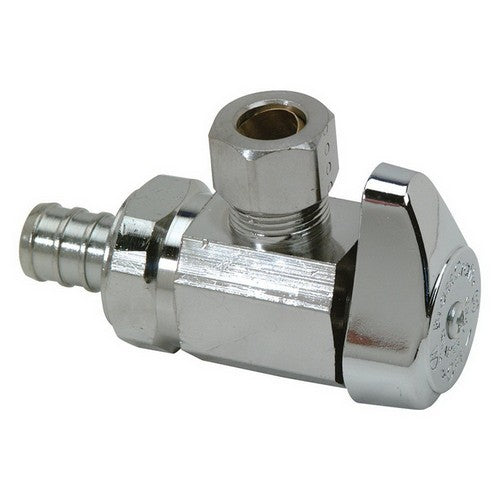

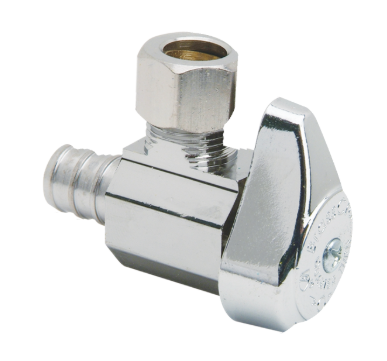

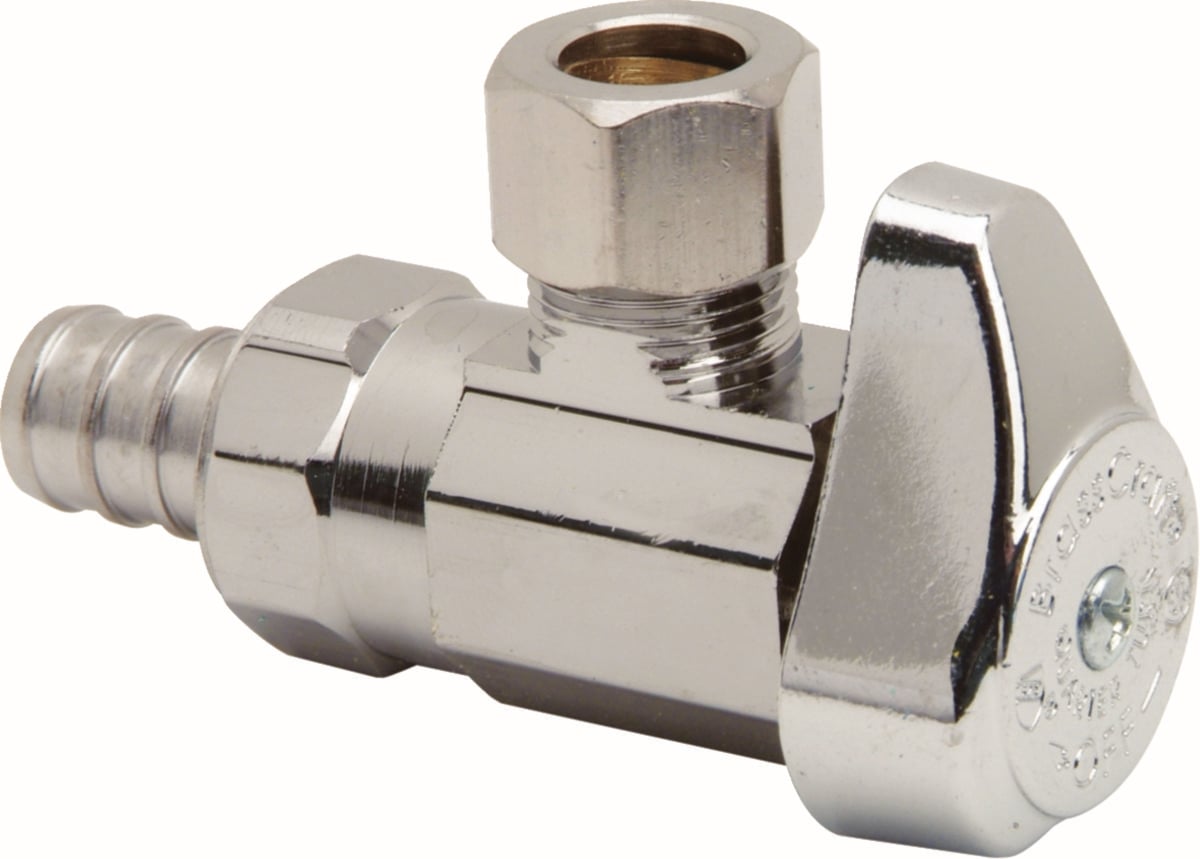

The Brasscraft G2BRPX19XC is an angle stop valve with a 1/2 inch nominal crimp barb inlet and a 3/8 inch OD compression outlet. This quarter-turn valve is designed to control water flow to household plumbing fixtures, such as faucets and toilets. It allows for maintenance and repair without shutting off water to the entire home.

• Machined one-piece brass body provides strength and durability.
• Compatible with PEX tubing.
• Features a one-piece shut-off mechanism for smooth operation.

Product Highlights

This angle stop valve is ideal for controlling water flow to plumbing fixtures, offering durability and easy operation.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: G2BRPX19XC
• Country of Origin: USA

Technical Specifications

• Series: G2BRPX19
• Nominal Size: 1/2 inch x 3/8 inch OD
• Connection: PEX Barb x Compression Connection
• Operation: 1/4 Turn
• Material: Brass
• Finish: Chrome Plated
• Pressure Rating: 125 psi
• Standards: IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
• Inlet: 1/2 in. Nom Crimp Barb
• Outlet: 3/8 in. OD Compression
• Compatible Tubing: PEX
• Temperature Rating: 40 - 140 deg F
• Usage: For indoor use
• Type: Angle
• End Style: Crimp Pex Barb x Compression
• Body Material: Chrome Plated Brass
• Trim Material: Glass Filled Polypropylene Stem Shaft
• Softgoods Material: Rubber O-Ring
• Handle Style: 1/4 Turn, Chrome Plated Die Cast Zinc
• Standard/Approvals: CSA, IAPMO Certified
