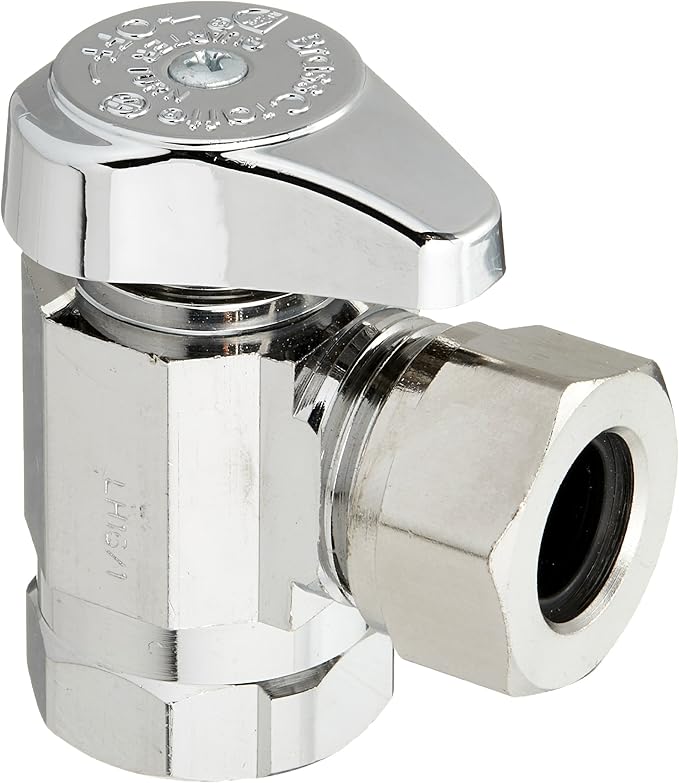

BRASSCRAFT G23301X C1 1/2 in. FIP x 7/16 in. & 1/2 in. O.D. Slip-Joint

Product Description

The BrassCraft G23301X C1 features a half-inch female iron pipe inlet and a seven-sixteenths inch & half-inch OD slip-joint outlet. This quarter-turn angle valve is used to manage water flow to fixtures including faucets, toilets, and dishwashers. Designed primarily for indoor applications, it allows for quick shut-off during maintenance while keeping the main water supply on.

• Machined brass body provides strength and long-lasting use
• 1/2 inch FIP inlet and 7/16 inch & 1/2 inch OD slip-joint outlet
• One-piece shut-off mechanism with easy handle removal

Product Highlights

This valve is 100% leak tested to ensure reliable performance for your plumbing systems.

Product Information

Standard Information

• Material: Brass
• Manufacturer: BrassCraft

Technical Specifications

• Item dimensions: 2.75 x 2.25 x 1.19 inches
• Maximum operating pressure: 125 psi
• Temperature range: 40 to 160 degrees F
• Ports: 2
• Lead law compliant: Yes
• Warranty: Limited 1 year
• Valve type: Angle supply stop valve
• Valve operator: Quarter turn handle
