Brasscraft CSSC24-36 ProCoat stainless steel gas connector 125000 BTU (36 in., 3/4 in. FIP x 1/2 in. MIP)

Brand: BRASSCRAFT
SKU: CSSC24-36
Availability: In Stock

Ships same day if ordered by 12 pm
$28.65
$28.65
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

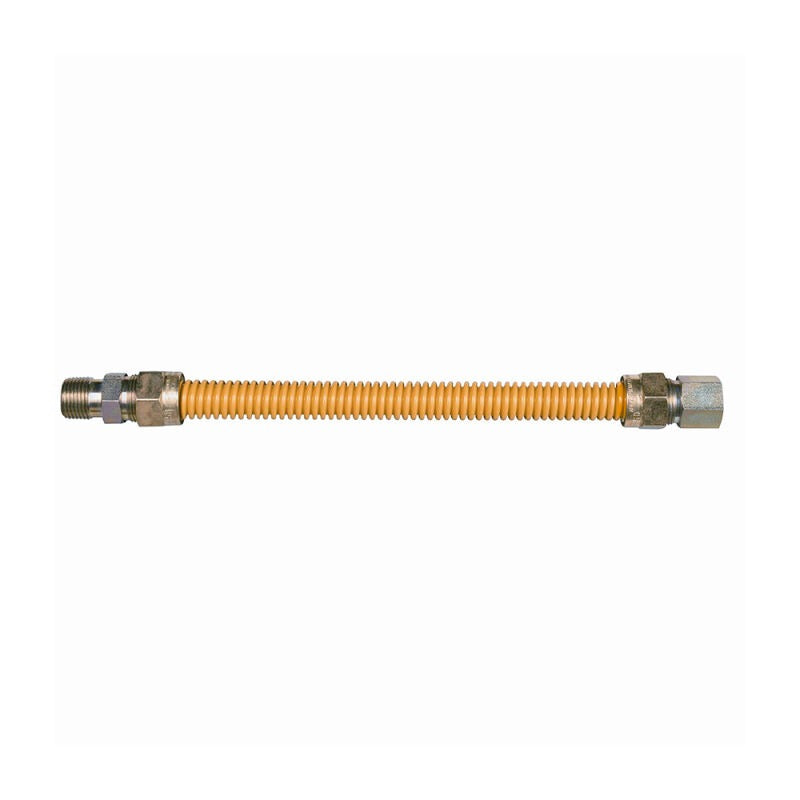

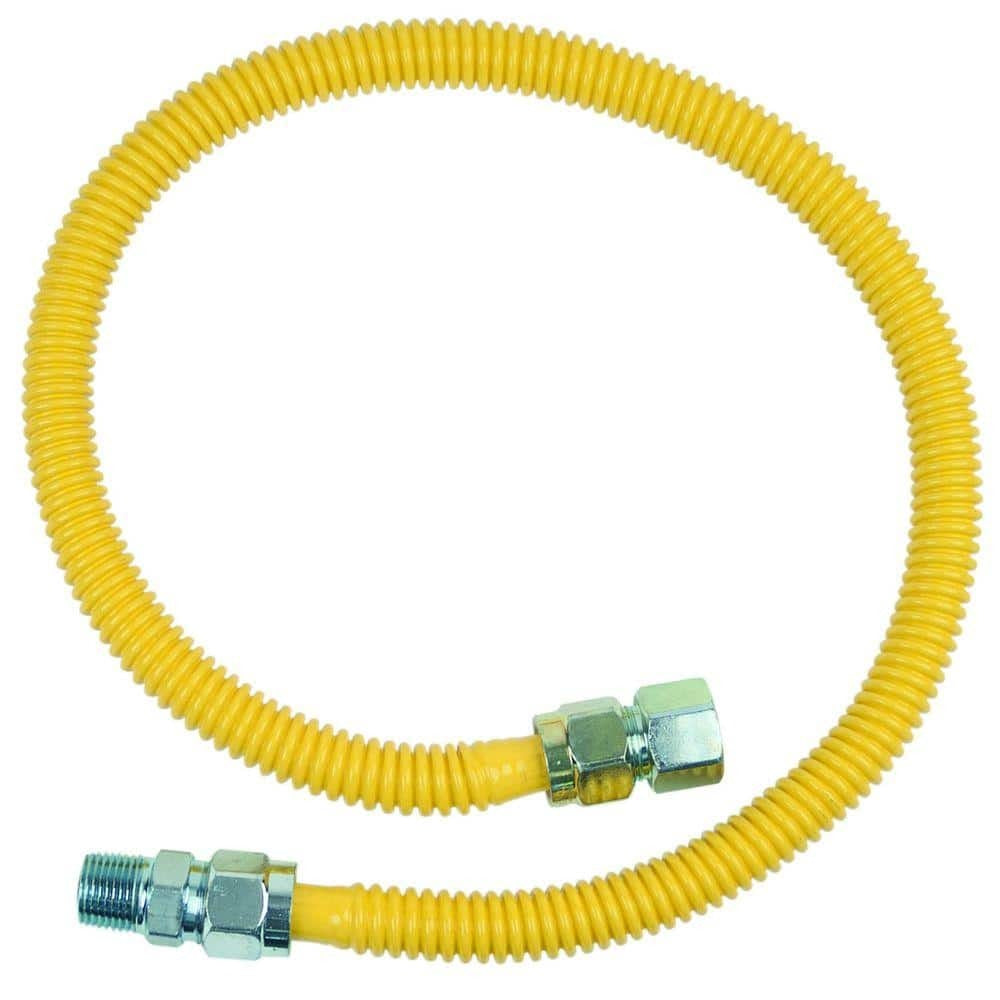

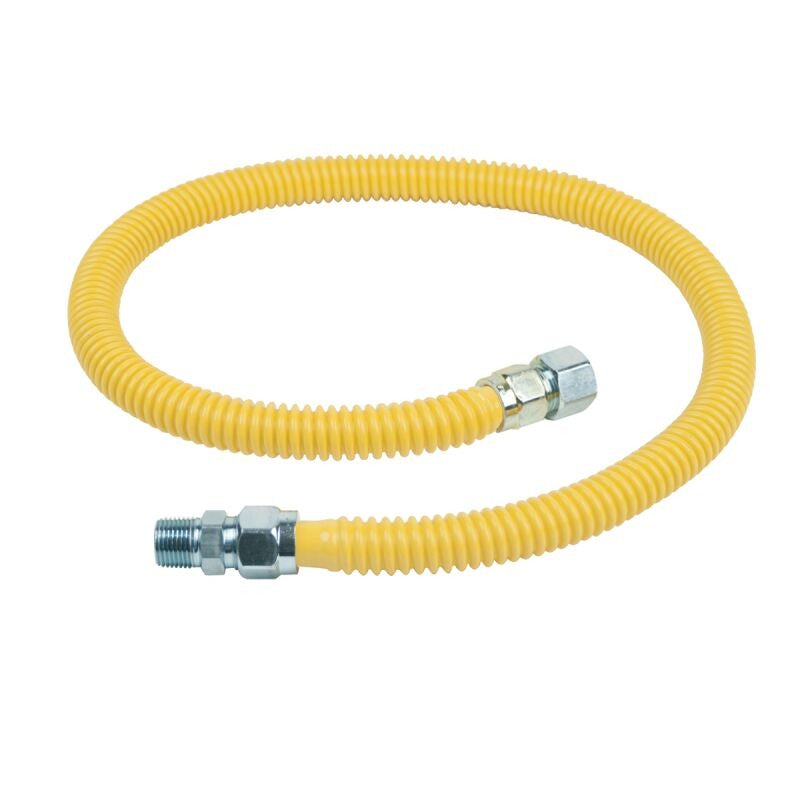

The BrassCraft CSSC24-36 is a ProCoat stainless steel flexible gas connector rated for 125,000 BTU and supplied in a 36 inch length. It features a 1/2 in. inner diameter (5/8 in. outer diameter) corrugated stainless steel tube with 3/4 in. FIP and 1/2 in. MIP steel fittings. The connector is powder-baked with a proprietary ProCoat polymer, 100% leak tested, and approved for indoor and outdoor use.

  • ProCoat polymer powder-baked coating provides corrosion, UV and chemical resistance; connector is 100% leak tested before coating
  • 1/2 in. I.D. (5/8 in. O.D.) corrugated stainless steel with smooth, burnished ends for easier sealing; includes 3/4 in. FIP and 1/2 in. MIP steel fittings
  • Rated for 125,000 BTU; temperature range -40 F to 150 F; pressure rating 1/2 psi maximum; suitable for natural and LP gases

Product Highlights

36 in. corrugated stainless steel gas connector with ProCoat coating, 3/4 in. FIP x 1/2 in. MIP fittings, 125,000 BTU rating

Product Information

Standard Information

  • Brand: BRASSCRAFT
  • Manufacturer Part Number: CSSC24-36
  • Country of Origin: United States
Technical Specifications
Brand
BrassCraft
MPN
CSSC24-36
Model/Series
CSSC24
Connector Type
Flexible corrugated stainless steel gas connector
Connection Ends
3/4 in. FIP x 1/2 in. MIP
Inner Diameter
1/2 in.
Outer Diameter
5/8 in. (0.625 in.)
Length
36 in.
BTU Rating
125,000 BTU
Temperature Rating
-40 F to 150 F
Pressure Rating
1/2 psi maximum
Leak Tested
100% leak tested before coating
Coating
ProCoat proprietary polymer powder-baked coating (corrosion, UV and chemical resistant)
Fittings Included
Steel fittings (3/4 in. FIP and 1/2 in. MIP)
Approved Use
Indoor and outdoor
Gas Compatibility
Natural, manufactured, mixed and liquefied petroleum (LP/propane) gases and LP gas-air mixtures
Applications
Large-demand appliances such as 5-burner+ gas ranges, furnaces, smaller residential tankless water heaters
Part Number
404753
UPC
026613112831
Country of Origin
Designed, machined and assembled in the USA
Category
Gas Connectors
