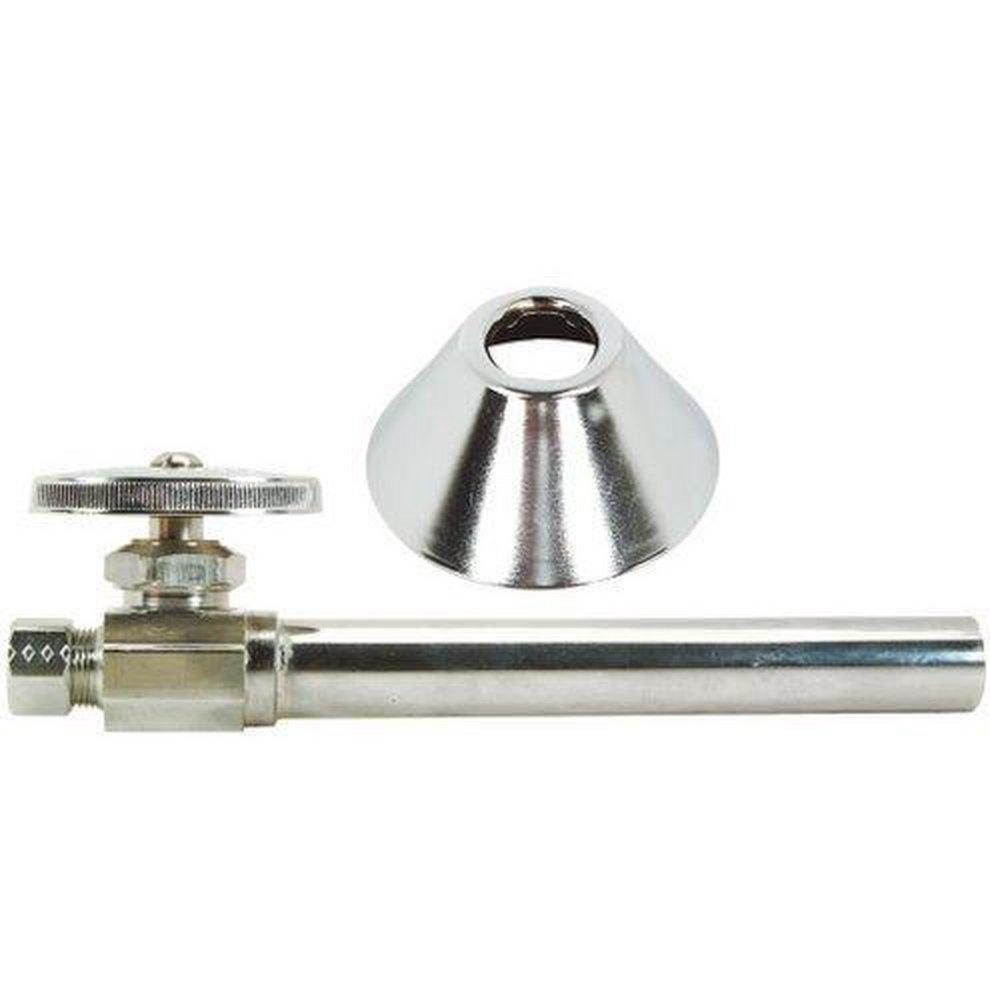

Brasscraft CS41B C Series 1/2 x 3/8 in. Straight Supply Stop Valve

Product Description

The BRASSCRAFT CS41B C Series straight supply stop valve features a machined, one-piece body for strength and durability. Compatible with copper, it is designed for use in potable water distribution systems. The multi-turn handle allows for controlled water flow, and the easy-to-remove handle prevents accidental operation during installation. Maximum pressure rating: 125 psi.

• Machined, 1-piece body construction for strength, durability and long-lasting performance
• Compatible with copper
• Multi-turn operation means water flow control with only a few turns of the handle

Product Highlights

Durable brass valve with multi-turn handle for potable water systems.

Product Information

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: CS41B C
• Country of Origin: Domestic

Technical Specifications

• ANSI: ANSI 372, ANSI 61
• ASME: ASME A112.18.1
• CSA Certified: CSA B125.1
• Collection: CS41B Series
• Color Finish Category: Chromes
• Color Finish Name: Chrome Plated
• End Connection 1: Sweat
• End Connection 2: OD Compression
• End Connections: Sweat x OD Compression
• Handle Material: Zinc Die Cast
• Handle Type: Knurled Oval
• Height: 1-3/4 in
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 6-59/100 in
• Material: Brass
• Maximum Temperature: 160
• Minimum Temperature: 40
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Origin: Domestic
• Pressure - High: 125
• Recommended Valve Application: Potable Water, Commercial, Residential
• Temperature Range: 40 to 160 Deg F
• UL Listed: No
• Valve Body Material: Brass
• Valve Body Style: 1 piece
• Valve Operator: Multi-Turn Handle
• Valve Size: 1/2 in x 3/8 in
• Valve Type: Straight Supply Stop Valve
• Width: 2-3/8 in
