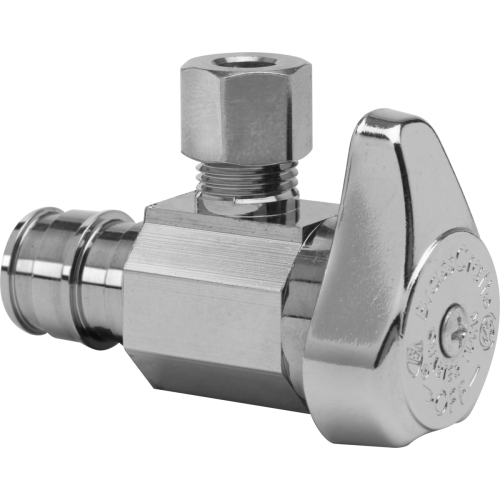

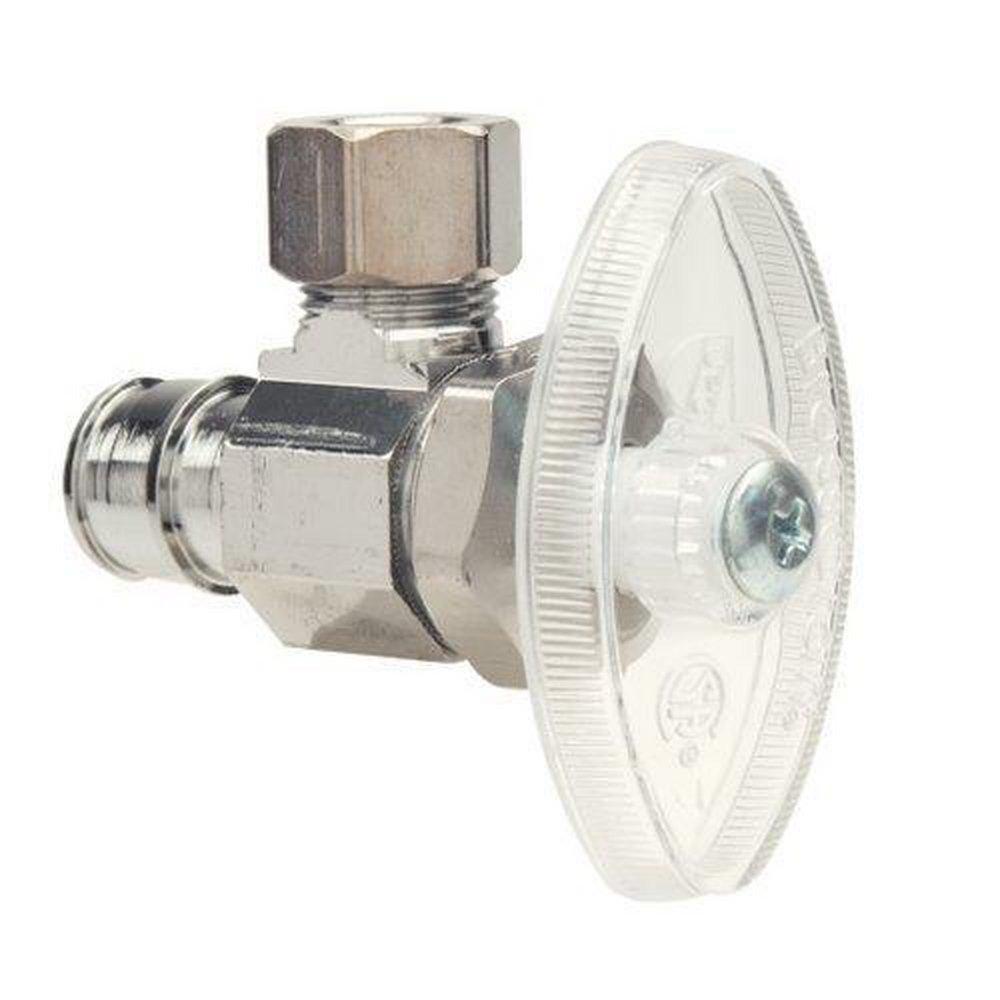

Brasscraft CEPX19X C Multi-Turn Angle Supply Stop Valve 1/2 x 3/8 in (F1960 x OD Compression)

Brand: BRASSCRAFT
SKU: CEPX19X C
Availability: Out Of Stock
$36.21
$36.21
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Brasscraft CEPX19X C is a multi-turn angle supply stop valve with a 1/2 in. nominal cold expansion PEX barb inlet and a 3/8 in. OD compression outlet. It features a machined one-piece brass body and an easy-to-remove knurled oval handle; compatibility is limited to cold-expansion PEX and installation requires a cold expansion ring and expander tool (not included). The valve is intended for potable water distribution and carries no-lead and multiple industry certifications.

  • Connections: 1/2 in. nominal cold expansion PEX barb inlet; 3/8 in. OD compression outlet; F1960 standard for cold expansion
  • Construction: Machined one-piece brass body with one-piece shut-off mechanism and knurled oval multi-turn handle
  • Ratings and certifications: Temperature rating 40 to 160 Deg F, 125 psi maximum; no-lead certified; IAPMO and CSA listed to ASME A112.18.1/CSA B125.1; NSF listed

Product Highlights

Angle multi-turn stop valve for potable water; compatible with ASTM F1960 cold-expansion PEX; requires cold expansion ring and expander tool; contractor pack option available.

Product Information

Standard Information

  • Brand: BRASSCRAFT
  • Manufacturer Part Number: CEPX19X C
  • Country of Origin: USA
Technical Specifications
Brand
Brasscraft
Manufacturer Part Number (MPN)
CEPX19X C
Model / Part No
BCEPX19XC
Connection Type
1/2 in. nominal cold expansion barb x 3/8 in. OD compression
Inlet
1/2 in. nominal cold expansion PEX barb
Outlet
3/8 in. OD compression
Connection Standard
F1960 (cold expansion) x OD compression
Valve Type
Angle supply stop valve
Operation
Multi-turn
Body Material
Machined one-piece brass
Shut-off Mechanism
One-piece shut-off for smooth on-off operation
Handle Type
Knurled oval, easy-to-remove
Compatibility
Compatible with cold-expansion PEX only
Installation Requirement
Requires cold expansion ring and expander tool (not included)
Intended Use
Potable water distribution systems; indoor use
Temperature Rating
40 to 160 Deg F
Temperature Limitation
Not intended for continuous recirculating systems above 115 Deg F
Pressure Rating
125 psi maximum
Finish
Chrome plated
Certifications
No-lead certified; IAPMO and CSA listed to ASME A112.18.1/CSA B125.1; NSF 61 and NSF 372; ANSI 372, ANSI 61; CSA B125.1
Standards
ASTM F1960, ASTM F876, ASTM F877
Dimensions (H x L x W)
0.93 in x 2.69 in x 2.25 in
Designed / Assembled
Designed, machined and assembled in the USA
Origin
Domestic
