Brasscraft brpx19xc angle valve 1/2 inch x 3/8 inch

Product Description

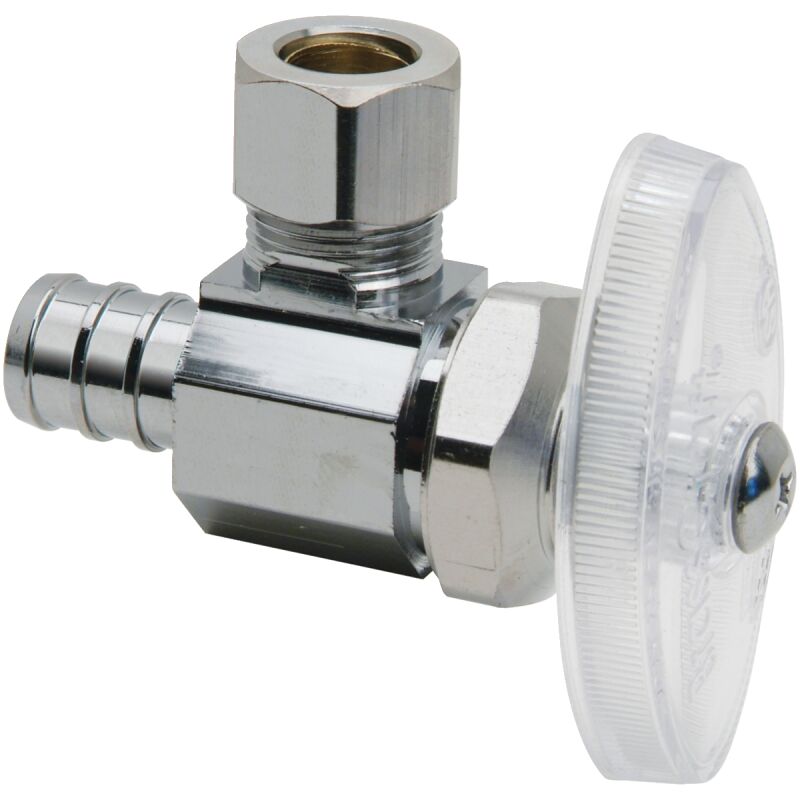

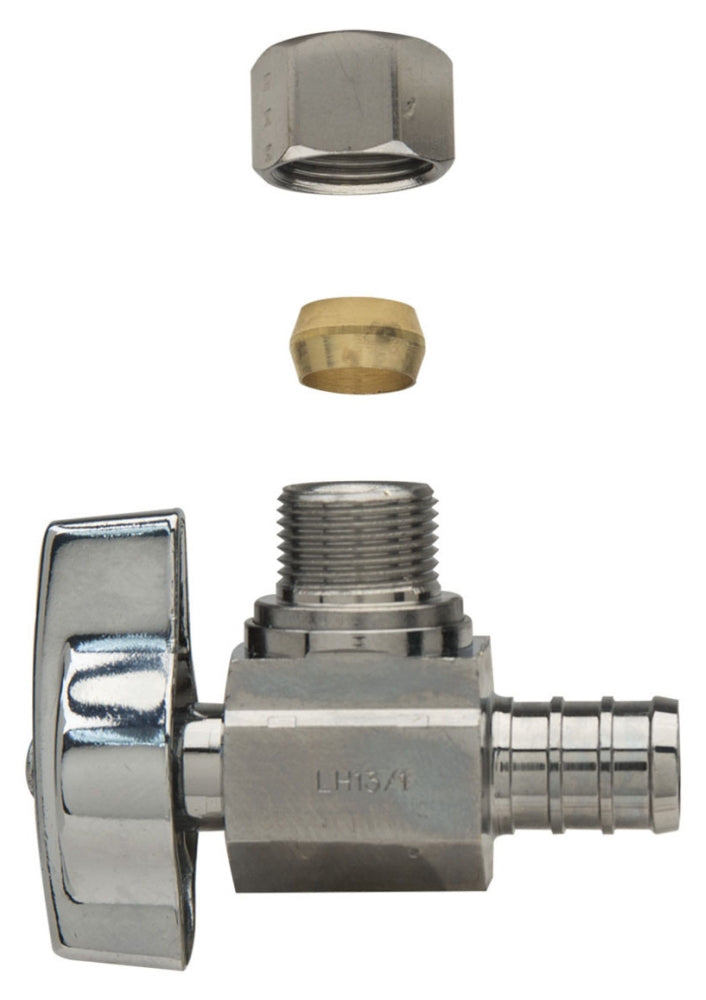

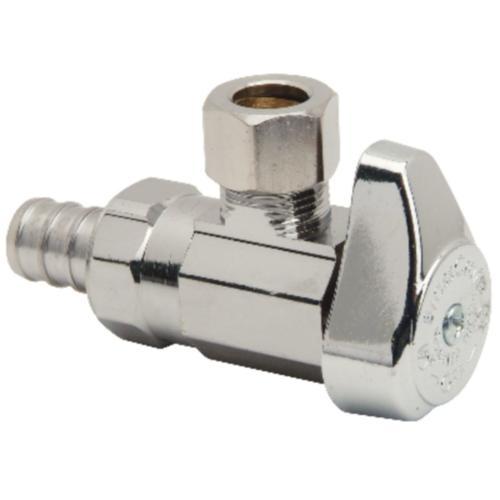

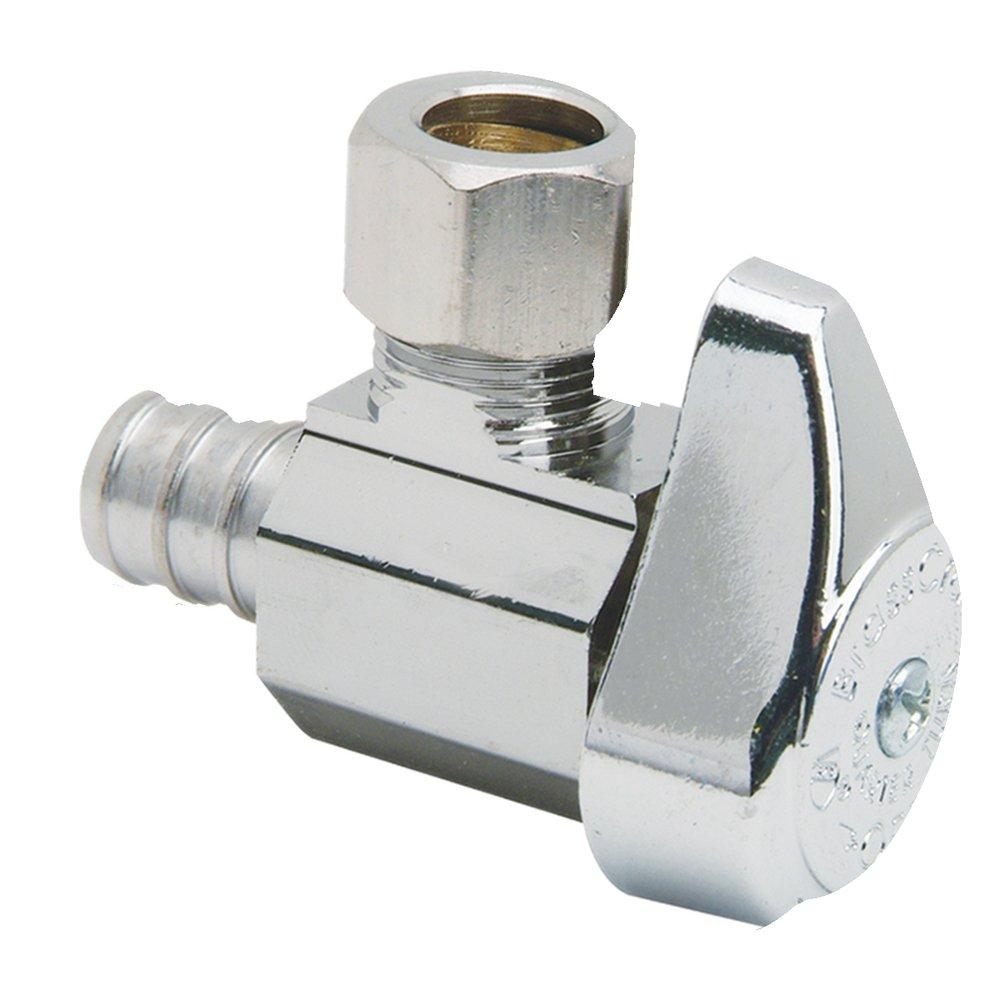

The Brasscraft BRPX19XC is an angle stop valve with a 1/2 inch nominal barb and 3/8 inch OD compression. It is designed for use in commercial, residential, and potable water distribution systems. The valve features a chrome plated brass body and a multi-turn, oval-knurled actuation type.

• Machined 1-Piece Brass Body Provides Strength, Durability and Long-Lasting Performance
• Precision-Machined Brass Ball to Provide Smoother Operation without Freeze Ups Even after Long Periods of Non-Use
• Blowout Proof, Plated Stem is Assembled from the Inside with Double O-Rings to Help Ensure Safe, Reliable Performance

Product Highlights

This angle stop valve is 100% leak tested to ensure reliable, leak-free performance and is lead-free compliant.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: BRPX19XC
• Country of Origin: USA

Technical Specifications

• Actuation Type: Multi-Turn, Oval-Knurled
• Applicable Standard: ASME A112.18.1/CSA B125.1, IAPMO, CUPC, CSA (Canada and US)
• Application: Commercial, Residential, Potable Water Distribution System
• Body Material: Brass
• End Connection: Crimp PEX Barb x Compression
• Handle Material: Chrome Plated Die-Cast Zinc
• Nominal Size: 1/2 Inch x 3/8 Inch
• Pressure Rating: 125 PSI
• Seat Material: Fluorocarbon
• Temperature Rating: 40 to 180 Deg F
• Type: Angle
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Valve Size: 1/2 in x 3/8 in
• Brand: BrassCraft
• MPN: BRPX19XC
• Country of Origin: United States
• End Connections: Barbed x OD Compression
