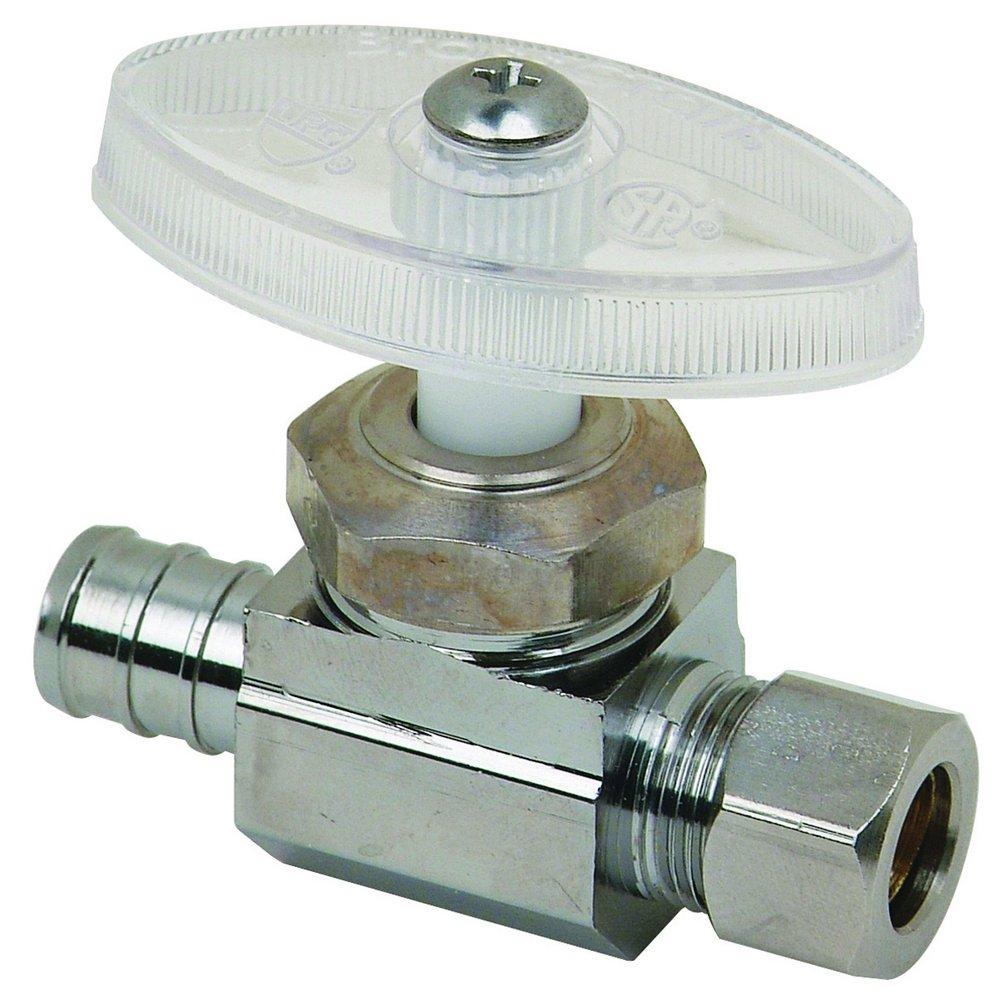

Brasscraft BRPX14XC Multi-Turn Water Stop, Straight Valve, 1/2 inch Nominal Barb x 3/8 inch OD Compression

Product Description

The Brasscraft BRPX14XC multi-turn straight valve controls water flow to household plumbing fixtures, such as faucets, toilets, dishwashers, icemakers, and washing machines. The straight valve is most often used where the water pipe enters the room from the floor. With a few turns of the valve handle, you can stop the flow of water.

• Machined, one-piece body construction for strength, durability and long-lasting performance
• Compatible with PEX tubing
• Temperature rating: 40 to 160F; Pressure rating: 125 psi maximum

Product Highlights

This straight valve is designed for use in potable water distribution systems and features a chrome finish.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: BRPX14XC
• Country of Origin: USA

Technical Specifications

• Color: Chrome
• Group: Pipe, Valves & Fittings
• Vendor: Brasscraft
• Category: Valves
• Product UPC: 026613142326
• Color Family: Gray
• Model Number: BRPX14X C
• Product Type: Stop Valve
• Product Category: PLUMBING
• Product GTIN/EAN: 0026613142326
• Type of Material: Brass
• Manufacturer Name: BRASSCRAFT
• Finish: Chrome
• Material: Brass, Plastic
• PartNo: BRPX14X C
• UPC: 026613142326
• Material/Finish: Brass/Chrome
• ANSI: ANSI 372, ANSI 61
• ASME: ASME A112.18.1
• ASTM: ASTM F-1807
• CSA Certified: CSA B125.1
• Collection: BRPX14 Series
• Color Finish Category: Chromes
• Color Finish Name: Chrome
• End Connection 1: Barbed
• End Connection 2: Compression
• End Connections: Barbed X Compression
• Handle Material: Polycarbonate
• Handle Type: Knurled
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Maximum Temperature: 160
• Minimum Temperature: 40
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Number of Handles: Single Handle
• Origin: Domestic
• Pressure - Maximum: 125 psi
• Recommended Valve Application: Potable Water
• Temperature Range: 40 to 160 Deg F
• UL Listed: No
• Valve Body Material: Brass
• Valve Body Style: 1 piece
• Valve Operator: Oval Knurled Handle
• Valve Size: 1/2 in x 3/8 in
• Valve Type: Straight Supply Stop Valve
• Width: 2-1/4
• Country of Origin: United States
• Brand: BrassCraft
• MPN: BRPX14XC
• Valve Operation: Manual
• Actuation Type: Oval Handle, Multi-Turn
• Applicable Standard: ASME A112.18.1/CSA B125.1, NSF/ANSI 372, IAPMO, CSA (Canada and US)
• Application: Potable Water Distribution System
• Body Material: Chrome Plated Brass
• End Connection: Barbed PEX x Compression
• End to End Distance: 2.19 Inch
• Inclusions/Features: Zinc Plated Steel Handle Screw, Rubber Bib and Packing Washer, Chrome Plated Brass Stem/Packing Nut/Compression Sleeve and Nut
• Nominal Size: 1/2 Inch x 3/8 Inch
• Pressure Rating: 125 PSI
• Temperature Rating: 40 to 140 Deg F
• Type: Straight
• Valve type: Stop Valves
• Size: 0.5 Nom x 0.375 in
• For Use With: Potable Water, PEX
• Inlet Connection Size: 1/2 inch
• Inlet Connection Type: PEX Crimp (F1807)
• Maximum Working Pressure: 125 PSI
• Maximum Working Temperature: 140 degrees Fahrenheit
• Outlet Connection Size: 3/8 inch
• Outlet Connection Type: Compression
