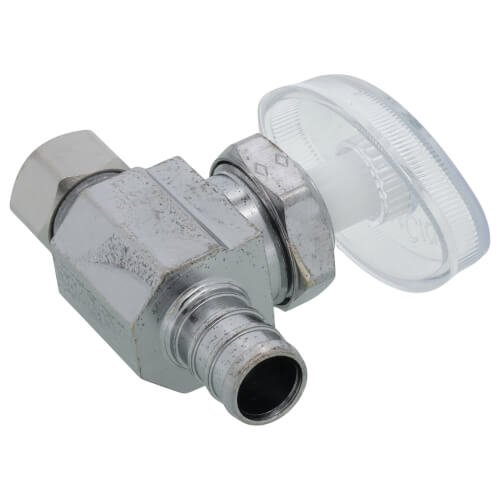

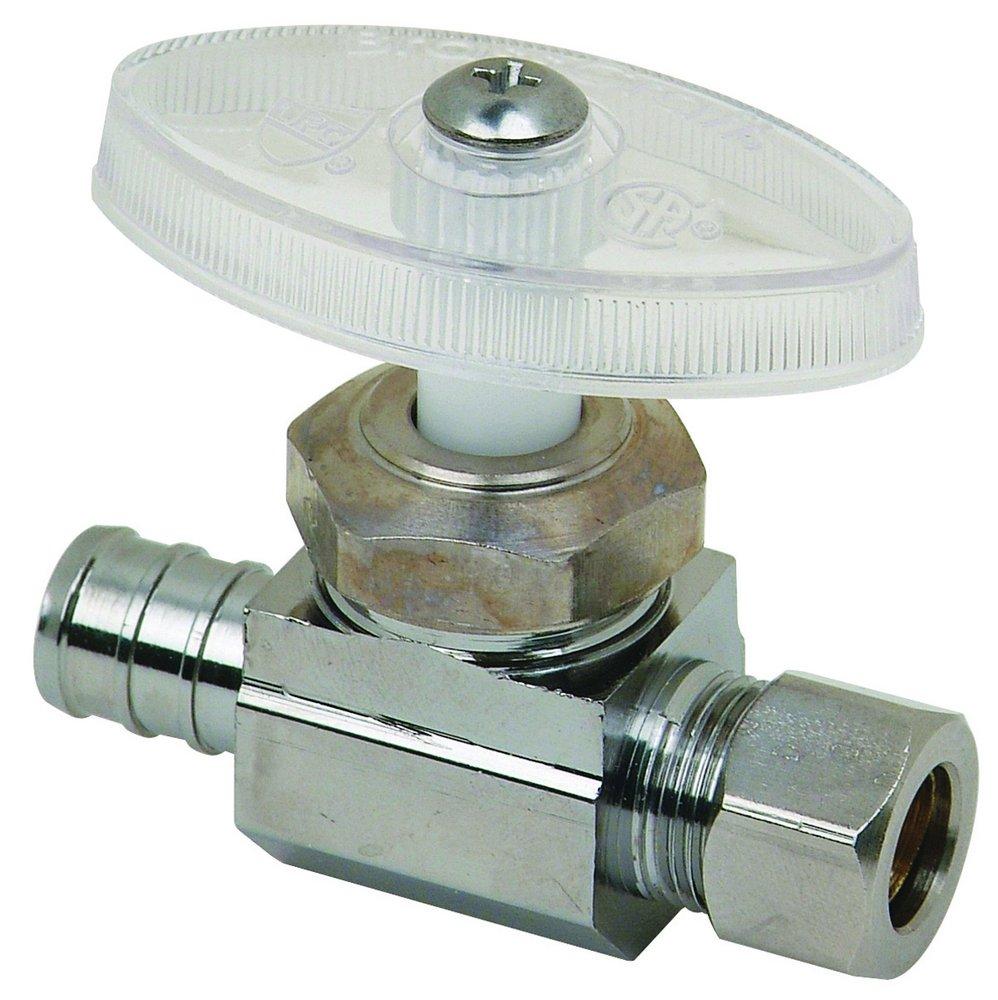

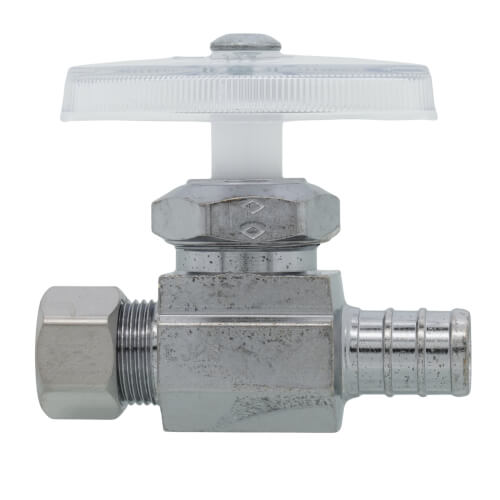

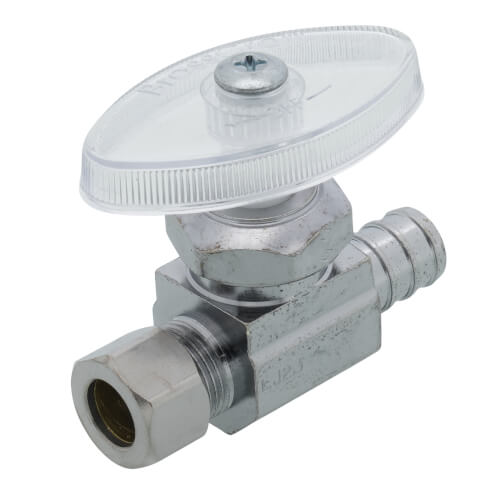

BrassCraft BRPX14XC Multi-Turn Water Stop, Straight Valve, 1/2 inch Nominal Barb x 3/8 inch OD Compression

Product Description

BrassCraft BRPX14XC is designed as a multi-turn straight valve. It is made to connect a half inch nominal barb inlet to a three-eighth inch OD compression outlet. This valve allows for effective control of water flow to household plumbing fixtures such as faucets, toilets, and dishwashers. The durable machined one-piece body offers strength and longevity.

• Compatible with PEX tubing
• Chrome plated finish for enhanced durability
• Temperature rating from forty to one hundred forty degrees Fahrenheit

Product Highlights

This valve is suitable for use in potable water distribution systems, not intended for recirculating water systems that operate above one hundred fifteen degrees Fahrenheit.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: BRPX14XC

Technical Specifications

• Material: Lead-Free Brass
• Nominal Size: 1/2 inch x 3/8 inch OD
• Connection Type: Barbed PEX x Compression
• Temperature Rating: 40 to 140 degrees Fahrenheit
• Pressure Rating: 125 psi
• Standards: IAPMO listed to ASME A112.18.1/CSA B125.1
