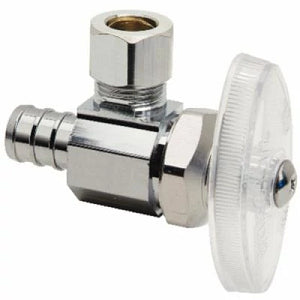

Brasscraft BRPX09XC Multi-Turn Water Stop Angle Valve 1/2 inch Nominal Barb x 1/4 inch OD Compression

Product Description

The Brasscraft BRPX09XC Multi-Turn Water Stop Angle Valve features a 1/2 inch nominal barb and a 1/4 inch OD compression. The machined 1-piece brass body provides strength and durability. The oval knurled handle offers a secure grip and smooth on/off operation. It is not intended for recirculating water systems above 115 deg F.

• Lead free
• Machined 1-piece brass body provides strength, durability and long-lasting performance
• Easy to remove handle protects accidental stop operation during rough-ins

Product Highlights

The Brasscraft BRPX09XC is ideal for commercial, lavatory, residential and toilet applications.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: BRPX09XC

Technical Specifications

• Type: Angle
• Nominal Size: 1/2 x 1/4 Inch
• End Style: Crimp Pex Barb x Compression
• Pressure Rating: 125 psi
• Media: Water
• Body Material: Chrome Plated Brass
• Trim Material: POM Stem, Plastic Sleeve, Brass Compression Sleeve
• Softgoods Material: Rubber Bib/Packing Washer
• Handle Style: Multi-Turn, Knurled Oval
• Temperature Rating: 40 - 140 deg F
• Brand: BRASSCRAFT
• MPN: BRPX09XC
• UPC: Does Not Apply
• Condition: New
• Domestic/Import: Domestic
• Finish: Polished Chrome
• Series: BRPX09X
