BrassCraft BRPX04XC Multi-Turn Water Stop, Straight Valve, 1/2 inch Nominal Barb x 1/4 inch OD Compression

Product Description

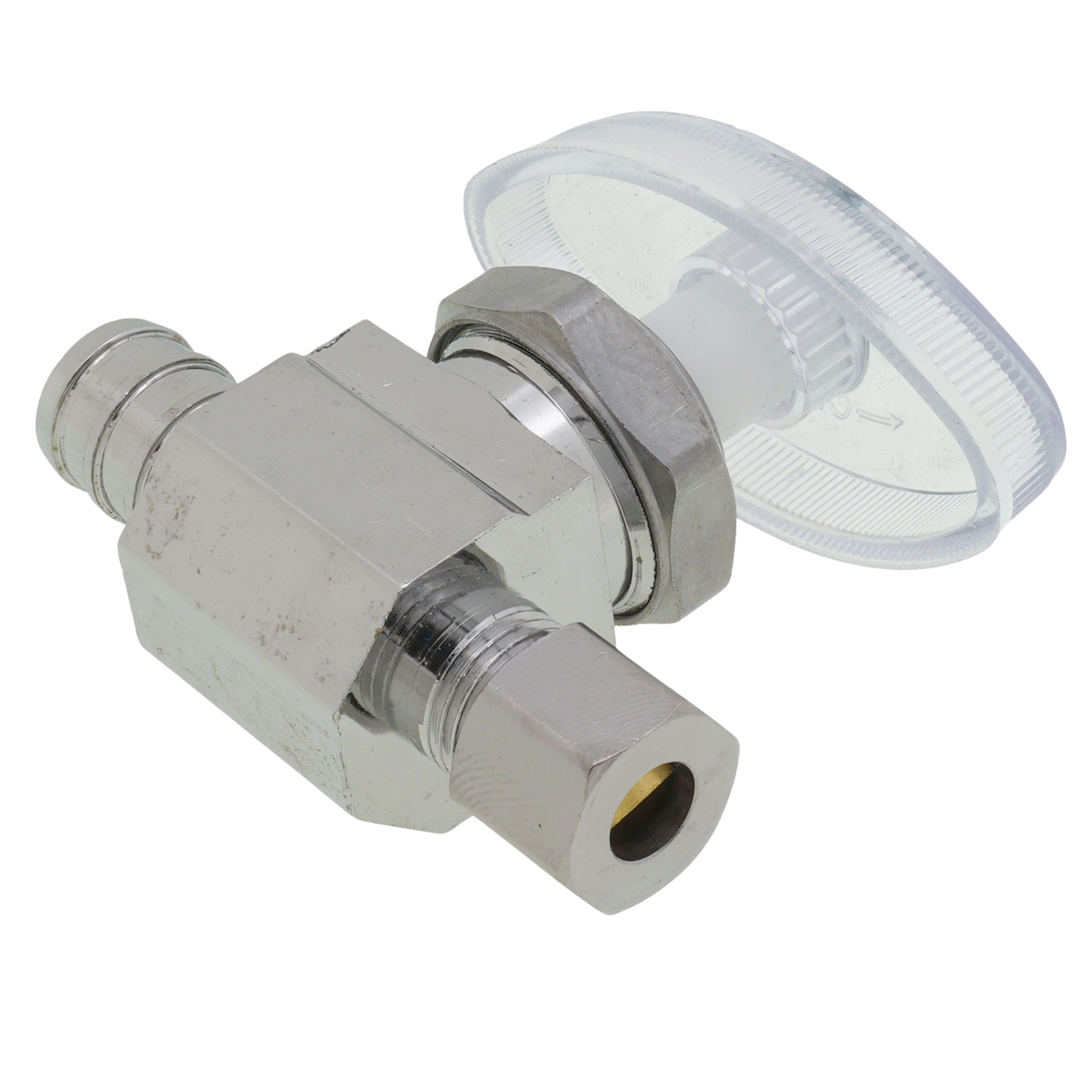

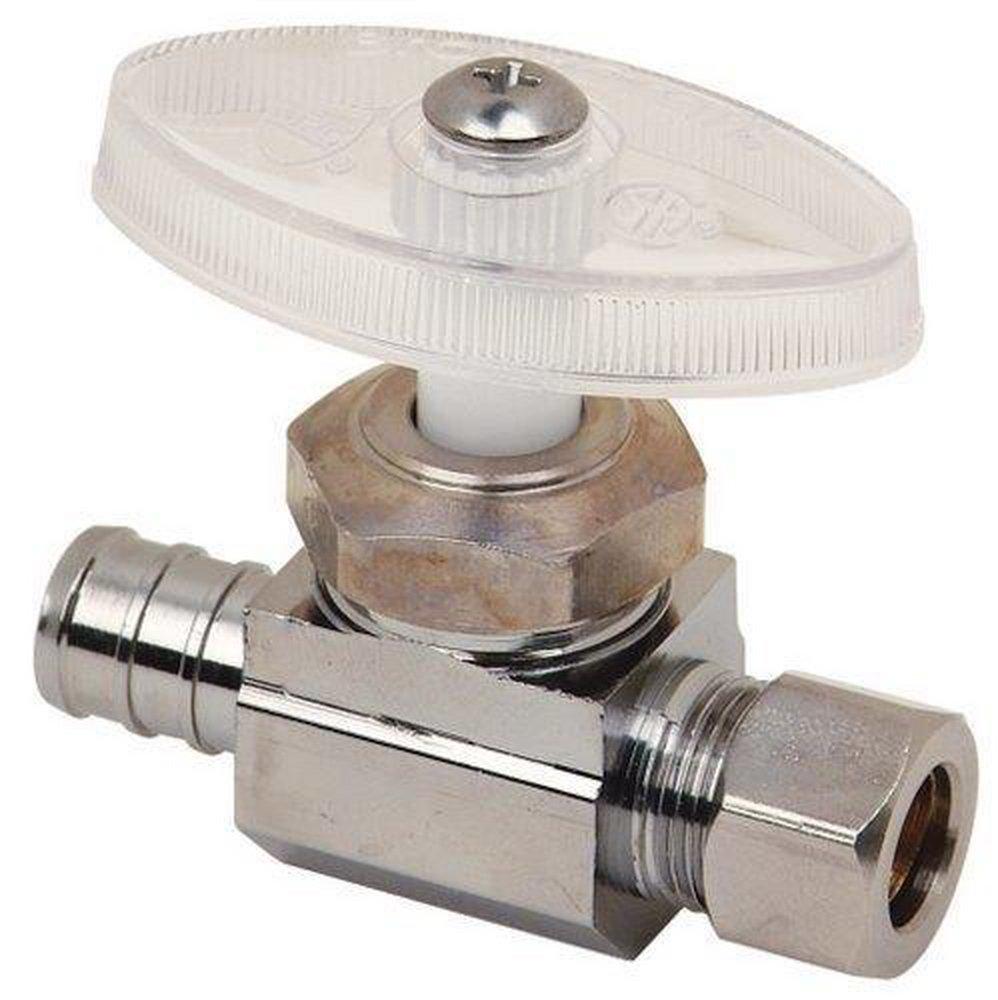

BrassCraft BRPX04XC is a multi-turn straight stop valve designed for water supply systems. It features a half inch nominal barb inlet and a quarter inch outer diameter compression outlet. The valve is made from brass and has a polished chrome finish.

• Machined one-piece brass body for strength and durability
• Knurled oval handle for a secure grip and smooth operation
• PEX end designed to ASTM F1807 standards

Product Highlights

This valve is suitable for use with ASTM F876 PEX tubing. It provides a reliable means to control water flow to plumbing fixtures such as faucets, toilets, and dishwashers.

Product Information

Standard Information

• Brand: BrassCraft
• Manufacturer Part No: BRPX04XC

Technical Specifications

• Body Material: Brass
• Finish: Polished Chrome
• Nominal Size: 1/2 x 1/4 inch
• Pressure Rating: 125 psi
• Temperature Rating: 40 to 140 degrees F
• Media: Water
• Dimensions: 1.67 x 2.19 inches
• Unit of Measure: Each
