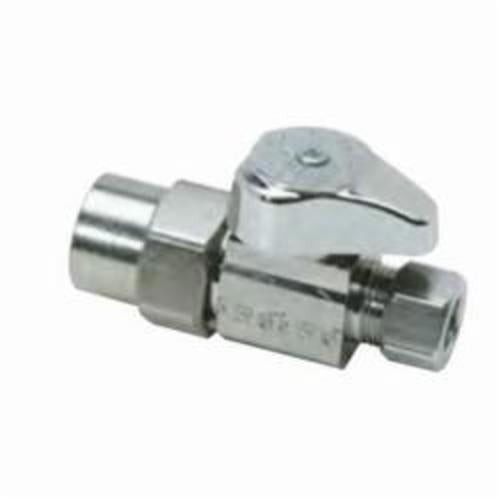

Brasscraft BC-G2PR14X C G2 1/4 Turn Straight Stop 1/2 x 3/8 in Nominal

Product Description

The Brasscraft BC-G2PR14X C G2 1/4 Turn Straight Stop features a 1/2 x 3/8 in nominal size and is designed with CPVC solvent weld x compression end style. It withstands pressure up to 125 psi and is suitable for water applications. The valve includes a brass body and C36000 brass trim, with Santoprene Stem Barrel/EPDM Stem O-Ring softgoods.

• Positive 1/4 turn shut-off
• Full flow operation with no waterway obstructions
• Machined one-piece brass body provides strength, durability and long-lasting performance

Product Highlights

This straight stop offers a reliable shut-off with a durable brass construction, suitable for use with copper, PEX, and CPVC.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: BC-G2PR14X C
• Country of Origin: Domestic

Technical Specifications

• Body Material: Brass
• End Style: CPVC Solvent Weld x Compression
• Media: Water
• Nominal Size: 1/2 x 3/8 in
• Pressure Rating: 125 psi
• Series: G2™
• Softgoods Material: Santoprene Stem Barrel/EPDM Stem O-Ring
• Temperature Rating: 40 to 140 deg F
• Trim Material: C36000 Brass
• Type: 1/4 Turn
