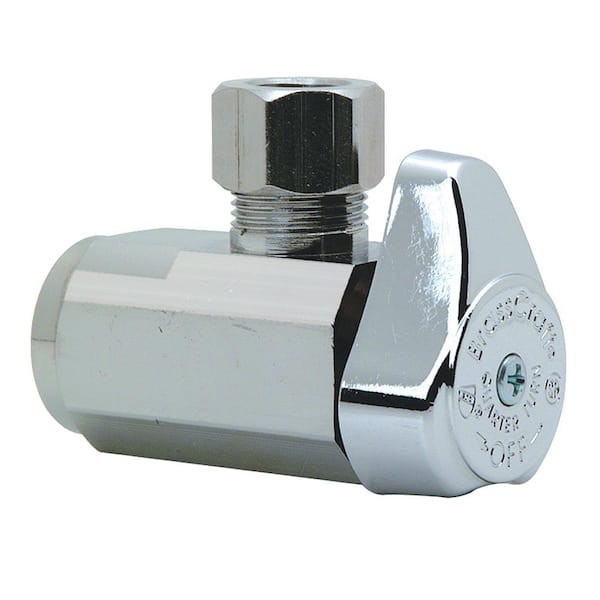

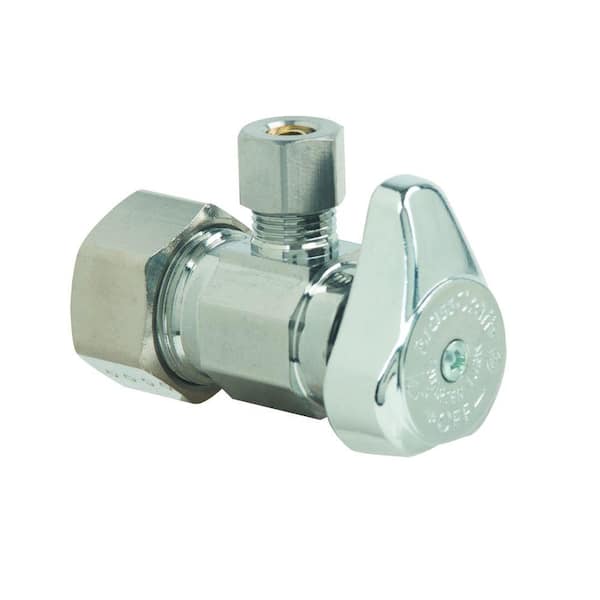

Brasscraft BC-G2CR19X C 1/2 in. Nom Comp x 3/8 in. O.D. Comp 1/4-Turn Angle Valve

Product Description

The Brasscraft BC-G2CR19X C 1/2 in. Nom Compression Inlet x 3/8 in. OD Compression Outlet 1/4-Turn Angle Valve controls water flow to household plumbing fixtures such as faucets, toilets, dishwashers, icemakers, and washing machines. The angle valve is used where the water pipe enters the room from the wall. A 90-degree turn of the valve handle stops water flow, allowing maintenance and repair without shutting off water to the entire home.

• Machined one-piece brass body provides strength, durability and long-lasting performance
• Compatible with copper piping
• Smooth, on/off flow control with a 90 degree turn of the handle

Product Highlights

This angle valve features a one-piece shut-off mechanism, easy-to-remove handle, and is 100% leak tested. Suitable for indoor use with a temperature rating of 40° to 160°F and a pressure rating of 125 psi maximum.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: BC-G2CR19X C
• Country of Origin: Domestic

Technical Specifications

• Inlet: 1/2 in. Nom Comp
• Outlet: 3/8 in. OD Comp
• Material: Brass
• Finish: Chrome
• Type: Angle Valve
• Handle Type: 1/4-Turn
• Series: G2™
• Nominal Size: 1/2 x 3/8 in
• End Style: Compression
• Pressure: 125 psi
• Media: Water
• Body Material: Brass
• Trim Material: C36000 Brass Trim
• Softgoods: Santoprene Stem Barrel/Rubber O-Ring
• Temperature Rating: 40 to 140 deg F
