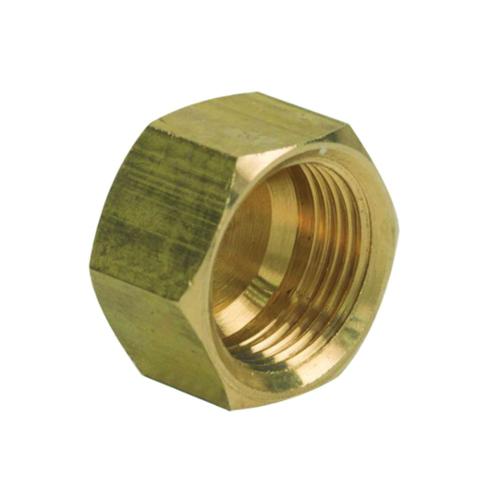

Brasscraft BC-61CP-6X Comp Cap 3/8 Od Nl

Product Description

The BrassCraft BC-61CP-6X is a tube nut from the 61CP series, ideal for plumbing, instrumentation, hydraulic, and pneumatic systems. It is suitable for gasoline, grease, oil, potable and non-potable water, vacuum, and air lines. This compression fitting can be used to install copper, aluminum, or plastic tubing.

• Does not require any flaring, soldering or other type of tubing preparation
• Manufactured from low lead compliant brass
• For use with potable water, many different types of instrumentation applications, hydraulic and pneumatic systems

Product Highlights

This BrassCraft compression nut is machined from brass and provides fair vibration resistance. It has a pressure rating of 200 psi and can withstand temperatures from -65 to 250 deg F.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: BC-61CP-6X
• Country of Origin: TW

Technical Specifications

• End Style: Compression
• Fitting/Connector Type: Nut
• Hex Size: 5/8 in
• Length: 0.51 in
• Material: Brass
• Nominal Size: 3/8 in
• Pressure Rating: 200 psi
• Series: 61CP
• Temperature Rating: -65 to 250 deg F
• Brand: BrassCraft®
