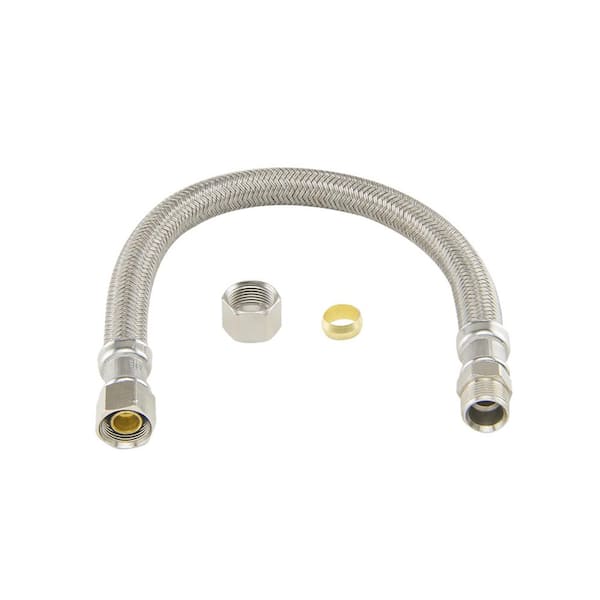

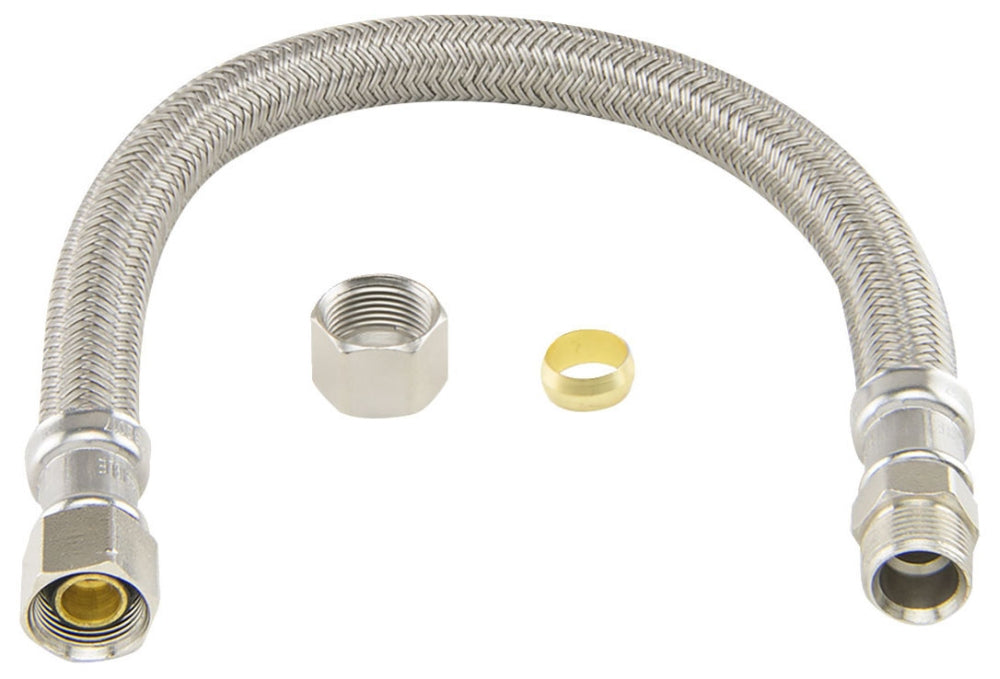

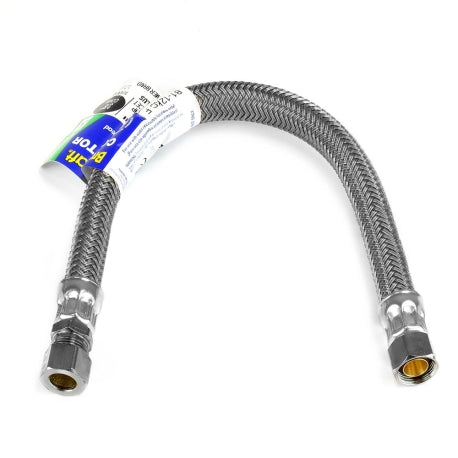

Brasscraft B1-12KCF Speedi Plumb PLUS Faucet Water Connector 12 inch 3/8 inch Compression

Product Description

The Brasscraft B1-12KCF Speedi Plumb PLUS faucet water connector is 12 inches in length and features a 3/8 inch compression inlet x 3/8 inch O.D. compression outlet. The flexible braided polymer water connector is corrosion resistant inside and out. Used to connect the water supply to a faucet with pigtail connections.

• Lead Free

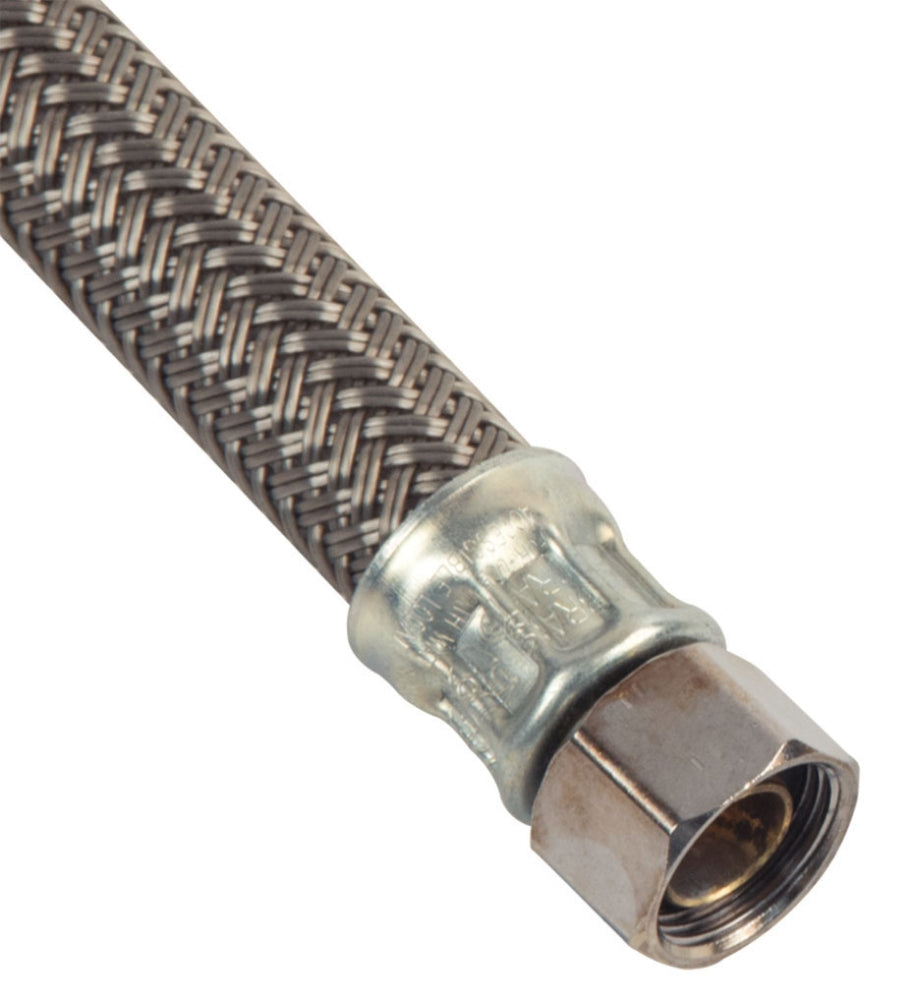

• Engineered Polymer Braided Fibers Bend Freely Without Kinking or Crimping
• Reinforced PVC Inner Hose Ensures Durability

Product Highlights

Flexible braided polymer faucet connector with 3/8 inch compression fittings and a 12-inch length. Designed for easy installation and corrosion resistance.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: B1-12KCF
• Country of Origin: Import

Technical Specifications

• Size: 3/8-Inch Comp x 3/8-Inch OD Comp
• Material: Polymer
• Measurement System: inch
• Batteries Included?: No
• Batteries Required?: No
• Additional Information: Lead-Free; Tubing Size 0.3 Inch Inner Diameter x 0.55 Inch Outer Diameter; Application Residential, Commercial
• Applicable Standard: CSA/IAPMO, ASME A112.18.6/CSA B125, CSA (Canada and US), UPC
• Brand Name: Speedi Plumb PLUS
• Category: Plumbing & Bath / Kitchen Fixtures
• End Connection: 3/8 Inch Compression x 3/8 Inch Compression
• End Fitting Material: Brass
• Length: 12 Inch
• Manufacturer Name: BrassCraft
• Manufacturer Part Number: B1-12KC-F
• Pressure Rating: 125 PSI
• Temperature Rating: 40 to 160 Deg F
• Tubing Material: Braided PVC Coated Polyester Yarn
• Type: Flexible, Faucet
• UNSPSC Code: 40141720
• UPC: 026613966229
• Outlet Connection: 3/8 inch O.D. Compression
• Series: B1-KC
• Nominal: 3/8 in
• End Style: Compression x KC Nosepiece
• ID: 0.3 in
• OD: 0.55 in
• Working Pressure: 125 psi
• Temperature Range: 40 to 140 deg F
• Inlet: 3/8 OD Compression
• Outlet Style: 3/8 OD Compression
• Product Length (in.): 12 in
• Domestic/Import: Import
• Inside Diameter: 0.3 in
• Outside Diameter: 0.55 in
