Brasscraft b1-12dlmbf Braided Toilet Supply Connector

Product Description

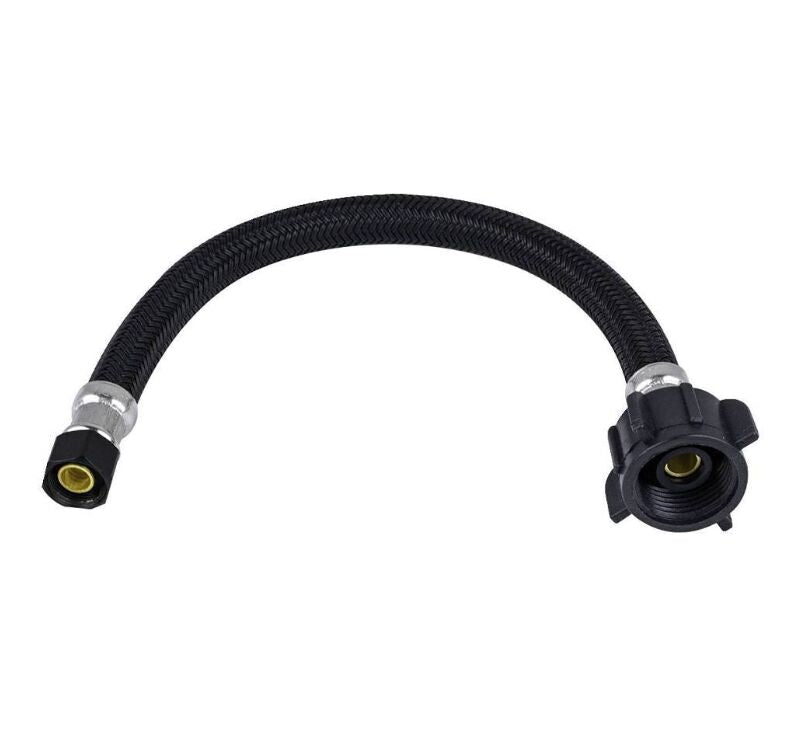

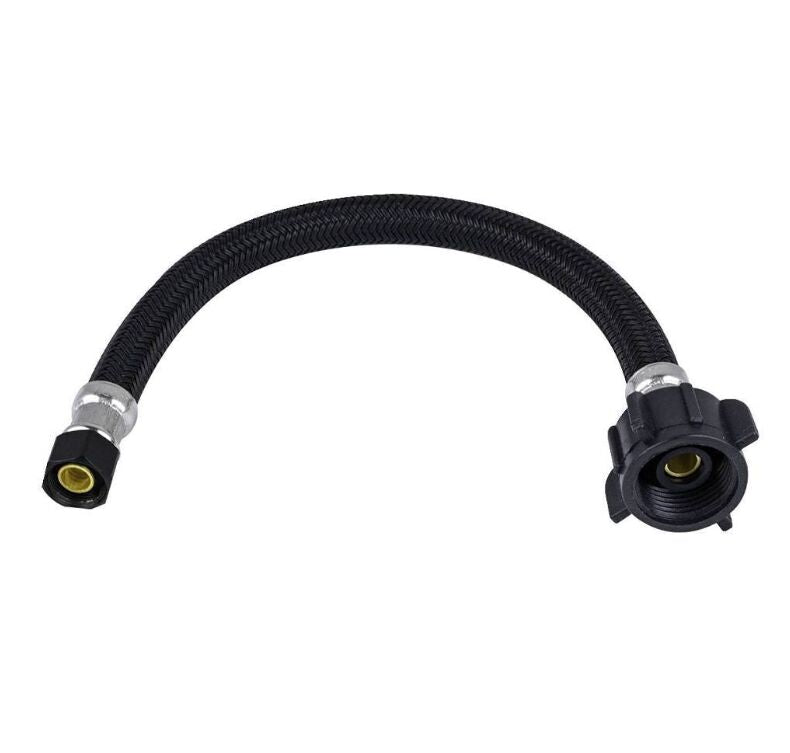

The BRASSCRAFT b1-12dlmbf is a 12-inch flexible braided polymer toilet water supply connector with a 3/8-inch compression inlet and a 7/8-inch ballcock nut outlet. Designed for potable water distribution systems, it features multi-filament polymer-coated fibers that resist corrosion inside and out. The inner PVC tubing withstands chlorine, chloramines, and other common corrosive agents found in municipal water supplies. Plated brass nuts provide durable, long-lasting connections at both ends. This connector is installed by plumbers and qualified tradespeople during toilet supply line service or new fixture installation.

This connector is suited for residential toilet supply line applications in accessible indoor locations. The 7/8-inch ballcock nut outlet connects directly to a standard toilet ballcock inlet using a hand-tighten wing nut, eliminating the need for tools at that end. The 3/8-inch compression fitting connects to a standard angle stop or straight stop valve. The matte black finish makes it compatible with installations where matching fixture hardware aesthetics is a requirement.

Key Features

• 3/8-inch compression inlet and 7/8-inch ballcock nut outlet for standard toilet supply connections
• Braided polymer construction with special polymer coating for external corrosion resistance
• PVC inner tubing resists chlorine, chloramines, and common corrosive water treatment chemicals
• Hand-tighten wing nut at ballcock end for tool-free outlet connection
• Rubber washer delivers a large pliable sealing surface for a long-lasting watertight connection
• Rated for use in potable water distribution systems in accessible indoor locations only

Compatibility

Designed for use with standard toilet fixtures using a 7/8-inch ballcock inlet and a 3/8-inch compression angle or straight stop valve in accessible indoor potable water distribution systems.

Installation Notes

This connector is installed by licensed plumbers or qualified tradespeople. Shut off the water supply at the stop valve and flush the toilet to relieve line pressure before disconnecting the existing supply line. Hand-tighten the ballcock nut onto the toilet inlet, then use an appropriate wrench to snug the compression fitting at the stop valve — do not overtighten. This connector is rated for indoor, accessible locations only and is not intended for concealed or in-wall installations.

Technical Specifications

• Inlet Connection: 3/8 inches compression
• Outlet Connection: 7/8 inches ballcock nut
• Length: 12 inches
• Inner Tubing Material: PVC
• Outer Braid Material: Polymer-coated multi-filament yarn
• Nut Material: Plated brass
• Finish: Matte black
• Maximum Pressure Rating: 125 psi
• Temperature Rating: 40 degrees F to 160 degrees F (intermittent to 180 degrees F)
• Application: Potable water, indoor accessible locations only

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: b1-12dlmbf
