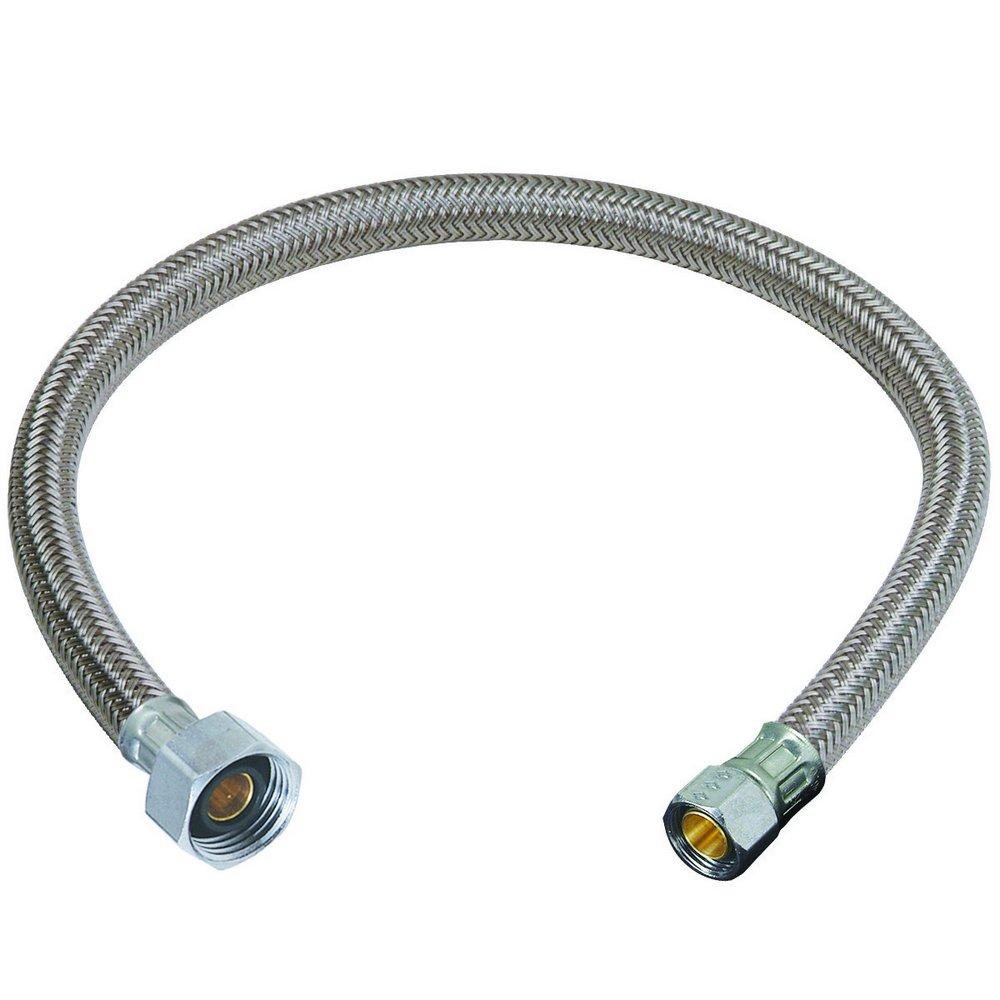

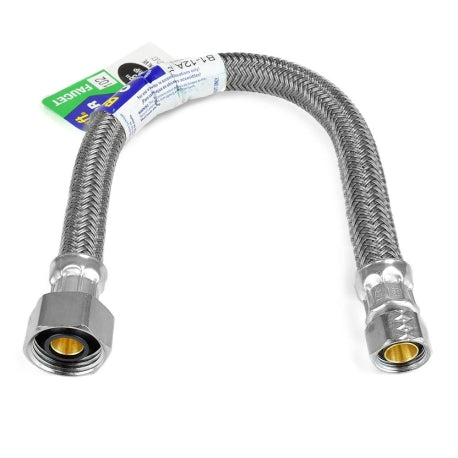

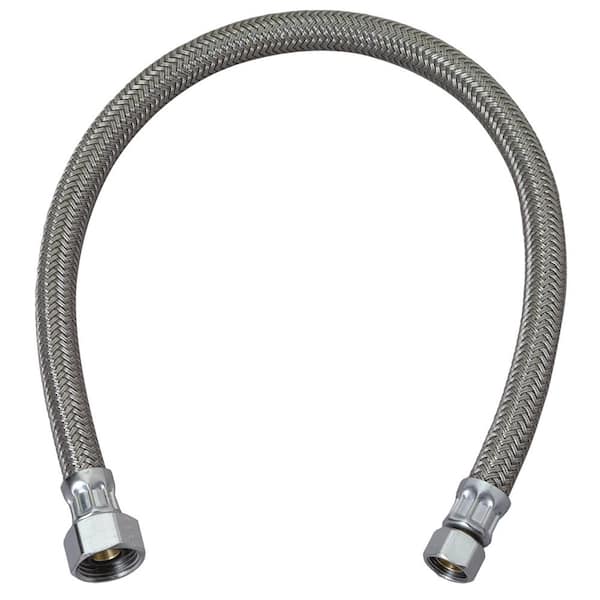

Brasscraft B1-12A F Speedi Plumb Plus Water Connector 12 in.

Product Description

The Brasscraft B1-12A F Speedi Plumb PLUS water connector is designed to connect your cold or hot water supply to your faucet. It features external and internal corrosion resistance for durability. The braided polymer fibers bend freely without kinking or crimping, making installation easier, especially in cramped quarters. This connector is for use in potable water distribution systems in accessible locations only.

• Connects to faucet with 3/8 in compression connection
• External and internal corrosion resistance for durability
• Rated for 40 degrees F to 140 degrees F and 125 psi

Product Highlights

Flexible braided polymer water connector with corrosion resistance and easy installation.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: B1-12A F
• Country of Origin: United States

Technical Specifications

• Connection: Compression x FIP
• Connector Type: Supply Connector
• Inside Diameter: 0.3 inch
• Nominal Size: 1/2 inch x 1/2 inch
• Connection Type: Compression x FIP
• Material: Braided Polymer
• Outside Diameter: 3/8 inch
• Temperature Rating: 40 to 140 Deg F
• Type: Supply Connector
• Pressure Rating: 125 psi
• Length: 12 inch
• Standards: NSF Approved, CSA B125.6 (File #204593), CSA B125.6 (File # 0452), ASME A112.18.6
• Product Length (in.): 12 in
• Inlet Fitting: 3/8 in. Compression
• Inlet: 3/8 OD Compression
• Outlet Style: 1/2 FIP, Metal Nut
• Note: 1/2 FIP also fits 7/16 rubber slip nut
• Temperature: 40 F to 140 F, intermittent to 180 F
• Maximum Pressure: 125 PSI
• End Style: Compression x FNPT
• Series: B1-A
• Working Pressure: 125 psi
• Domestic/Import: Import
