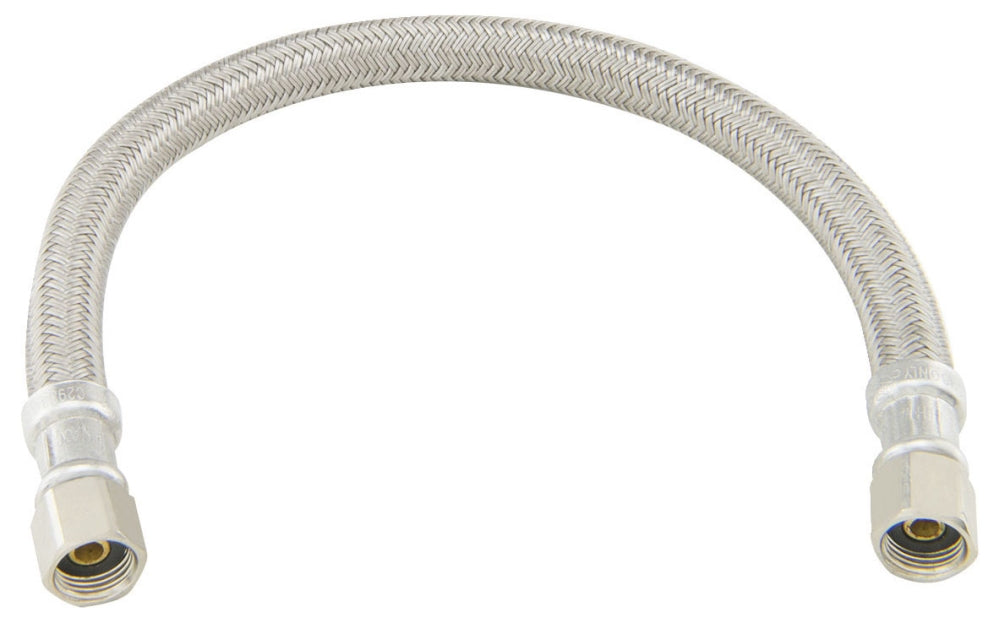

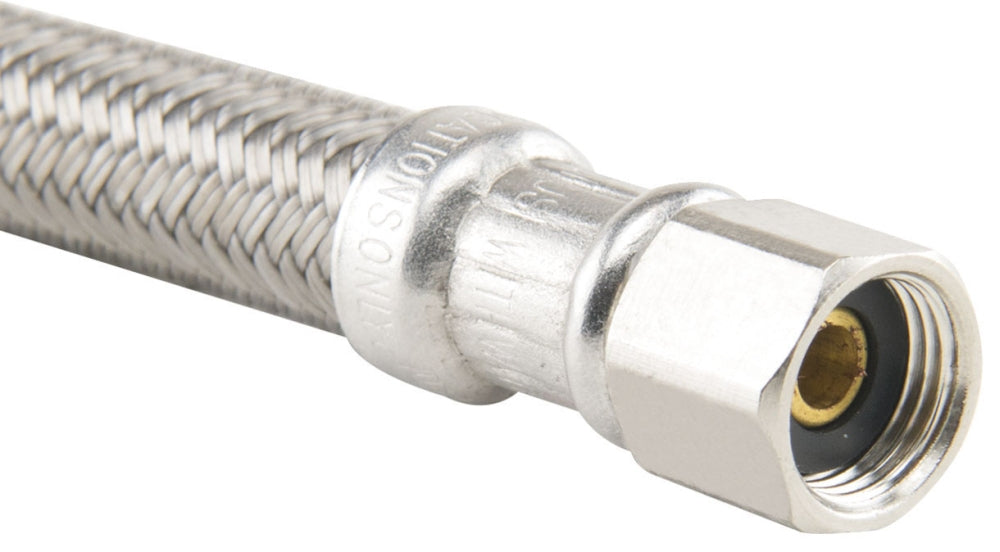

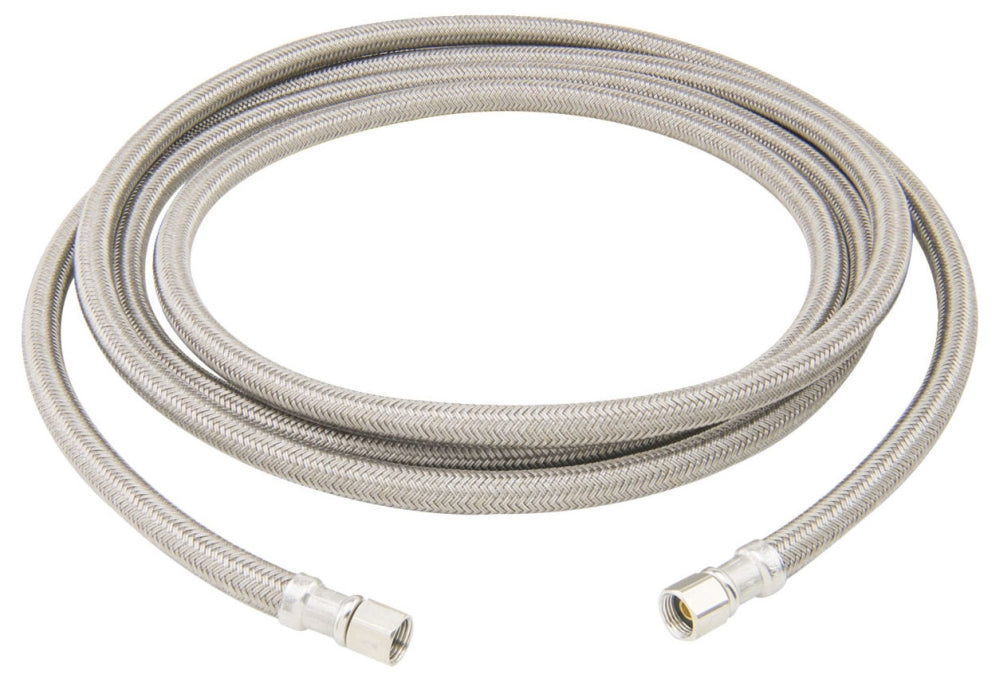

BrassCraft B0-84IM 1/4 x 1/4, Compression x Compression, 84 L, 125 PSI, Lead-Free, Braided PVC Coated Polyester Yarn/TPE Inner Hose

Product Description

The BrassCraft B0-84IM is a reliable ice maker connector with a compression x compression end connection. This connector measures eighty-four inches in length and can handle a pressure of one hundred twenty-five PSI. Made with a braided PVC coated polyester yarn and TPE inner hose, it is reinforced for durability and flexibility.

• Ice maker connector
• Lead-free materials
• Suitable for residential and commercial applications

Product Highlights

This connector is designed for ice makers, humidifiers, and water filters. The tubing's flexible construction allows easy installation without kinking or crimping.

Product Information

Standard Information

• Brand: BrassCraft
• Part Number: B0-84IM

Technical Specifications

• End Connection: 1/4 Inch Compression x 1/4 Inch Compression
• Length: 84 Inches
• Tubing Material: Braided PVC Coated Polyester Yarn, TPE (Inner Hose)
• End Fitting Material: Brass (Barb), Chrome Plated Brass (Compression Nut), Zinc Plated Steel (Ferrule)
• Temperature Rating: 40 to 140 Deg F
• Pressure Rating: 125 PSI
• Applicable Standard: CSA (Canada and US), UPC, IAPMO, ASME A112.18.6/CSA B125
• Inner Diameter: 0.245 Inch
• Outer Diameter: 0.47 Inch
