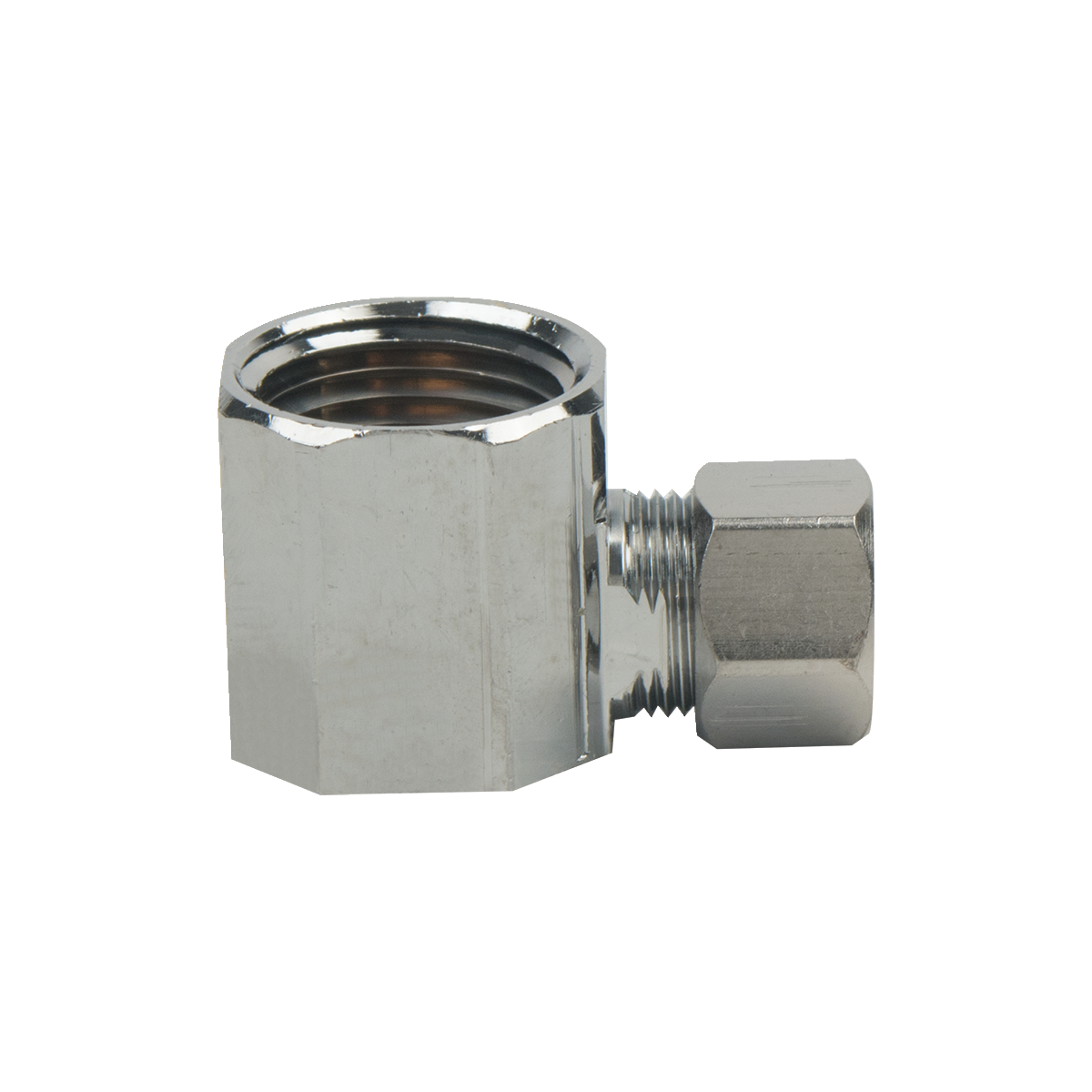

BrassCraft 70-6-8XC 3/8 x 1/2 in. OD Tube x FIP Compression Reducing Brass Elbow

Product Description

The BrassCraft 70-6-8XC is a reducing elbow designed for connecting 3/8 inch outer diameter tubing to 1/2 inch FIP connections. This fitting is suitable for both aluminum and copper tubing. The design does not require flaring or soldering, simplifying installations.

• Temperature rated from minus sixty-five degrees to two hundred fifty degrees Fahrenheit.
• Working pressure of up to three hundred pounds per square inch (PSI).
• Chrome finish provides a reliable sealing surface.

Product Highlights

This elbow fitting is intended for use with potable and non-potable water systems, hydraulic, and pneumatic applications. It is essential for various plumbing installations and is compatible with PEX and plastic tubing when used with appropriate sleeves or inserts.

Product Information

Standard Information

• Brand: BrassCraft
• Part No: 70-6-8XC

Technical Specifications

• Overall Dimensions: 1.5700 inches x 1.5700 inches x 0.9100 inches
• Finish: Rough Brass
• Item Weight: 0.13975 lbs
