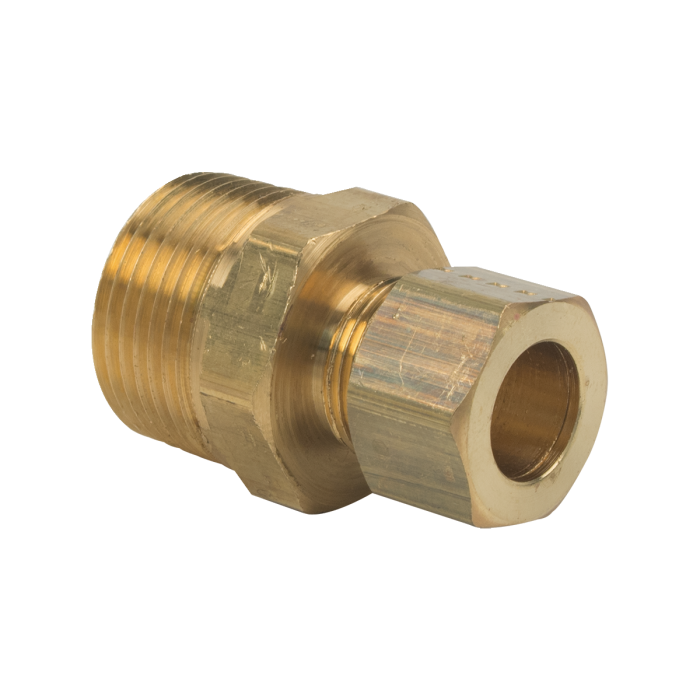

BrassCraft 68-8-12X 1/2 in O.D. Tube x 3/4 in MIP Compression Male Reducing Adapter

Product Description

BrassCraft 68-8-12X is a 1/2 inch O.D. tube by 3/4 inch MIP compression male reducing adapter. This component is designed from brass, making it suitable for various plumbing applications.

• Compatible with copper, aluminum, and plastic tubing.
• Pressure rating up to 300 PSI.
• Temperature rating from -65°F to 250°F.

Product Highlights

This compression adapter is ideal for plumbing, instrumentation, hydraulic, and pneumatic systems. It is effective for both potable and non-potable applications. Ensuring a leak-free connection, it is recommended for aluminum and copper tubing use.

Product Information

Standard Information

• Brand: BrassCraft
• Part Number: 145123

Technical Specifications

• Specifications: 1/2 inch O.D. tube x 3/4 inch MIP
• Pressure Rating: 300 PSI
• Temperature Rating: -65°F to 250°F
• Materials: Brass
• Usage: For copper, aluminum, and plastic tubing
• Note: Not recommended for use with steel tubing
• Applications: Plumbing, hydraulic and pneumatic systems
• Installation Requirements: Plastic and PEX installations require sleeves or inserts.
