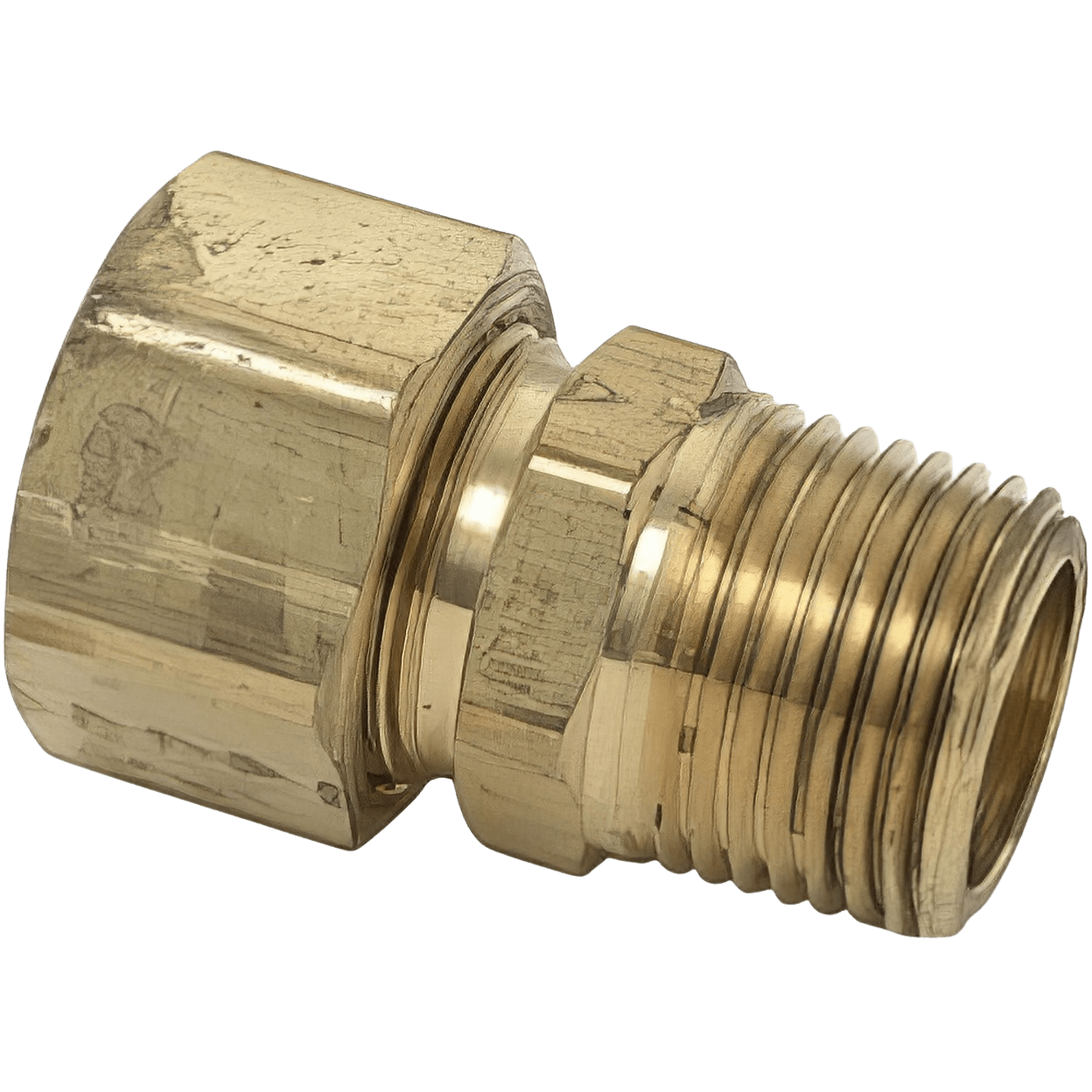

BrassCraft 68-6-4X 68 Series Reducing Adapter, 3/8 x 1/4 in, Compression x MIP

Product Description

The BrassCraft 68-6-4X is a lead-free compression x MIP reducing adapter. It features a three-eighths inch outer diameter tube to a one-quarter inch male iron pipe connection. This brass adapter is suitable for multiple applications, including plumbing and instrumentation. It is engineered to operate effectively in both hydraulic and pneumatic systems, handling various fluids such as potable water and oil.

• Lead-free brass construction
• No flaring or soldering required for installation
• Rated for a maximum pressure of 200 psi

Product Highlights

This adapter is designed for compatibility with copper, aluminum, and plastic tubing, but it is not recommended for use with steel tubing. The temperature range of the fitting is between negative sixty-five and positive two hundred fifty degrees Fahrenheit, making it versatile for many environments.

Product Information

Standard Information

• Manufacturer: BrassCraft
• MPN: 68-6-4X

Technical Specifications

• Nominal Size: 3/8 x 1/4 in
• Connection Type: Compression x MNPT
• Pressure Rating: 200 psi
• Temperature Rating: -65 to 250 deg F
• Material: Brass
• Finish: Rough Brass
• Hex Size: 9/16 in
• Series: 68 Series
